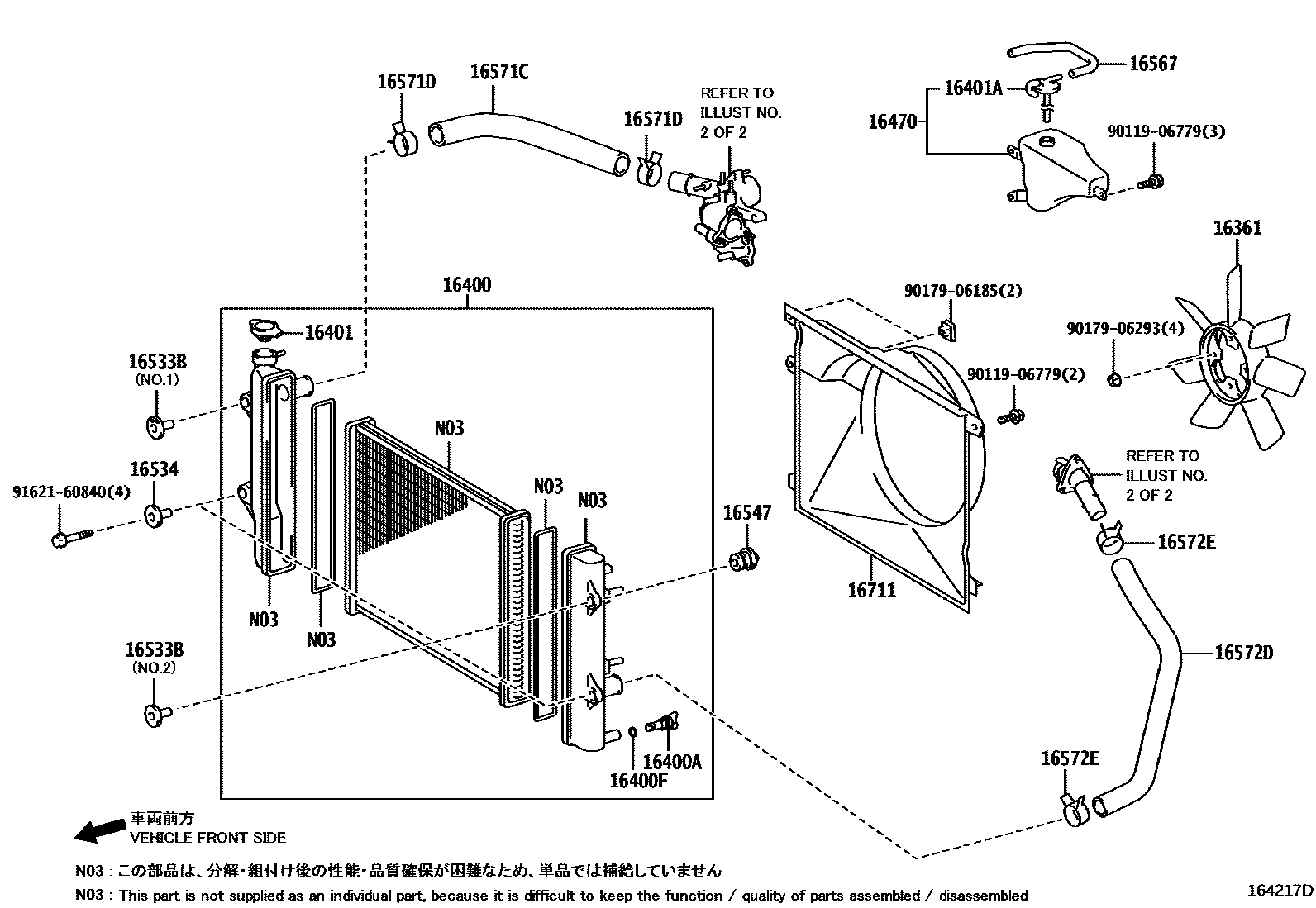

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

16361FAN

main16361-31060i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200409

main16361-54140i5LE..LJ12#200209

main16361-67020i1K#..KDJ120,KZJ120200209

main16361-75020i3RZFE..RZJ12#200209-200408

sub16361-75021

16400RADIATOR ASSY

main16400-30152i1KDFTV..KDJ120..6F200608-200908

main16400-31350i1GRFE..GRJ12#..ATM..(ARL,GCC,GEN)200301-200410

sub16400-31351

main16400-31351i1GRFE..GRJ12#..5FC..(ARL,GCC,GEN)200411

sub16400-31352

main16400-31351i1GRFE..GRJ120..CHI200411-200605

MARK 3135

sub16400-31352

main16400-31560i1GRFE..GRJ120..CHI200606

MARK 3156

main16400-50310i1KZTE..KZJ120..4FC200209-200307

sub16400-50311

main16400-67210i1KZTE..KZJ120..5F200209-200307

main16400-67211i1KZTE..KZJ120..5F200307-200503

sub16400-67212

main16400-67212i1KZTE..KZJ120..5F200504-200611

sub16400-67213

main16400-67213i1KZTE..KZJ120..5F200612-200908

main16400-67230i1KDFTV..KDJ120..5FC200608-200908

main16400-67260i1KZTE..KZJ120..4FC200307-200503

sub16400-67261

main16400-67261i1KZTE..KZJ120..4FC200504-200611

sub16400-67262

main16400-67262i1KZTE..KZJ120..4FC200612-200908

main16400-75440i2TRFE..TRJ12#..4FC200209-200410

sub16400-75441

main16400-75441i2TRFE..TRJ12#..4FC200411

sub16400-75442

main16400-75450i1GRFE..GRJ120..MTM200209-200410

sub16400-75451

main16400-75451i5LE..LJ12#200411-200908

sub16400-75452

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main23322-54010i5LE..LJ12#200209-200408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1KDFTV..KDJ120200608-200908

main16492-21050i1KZTE..KZJ120..4FC200209-200908

16401CAP SUB-ASSY, RADIATOR

main16401-31650i1GRFE..GRJ120..CHI200902

main16401-46610i5LE..LJ12#200902-200908

sub16401-30020

main16401-5B630i5LE..LJ12#200209-200410

sub16401-31650

main16401-75440i2TRFE..TRJ12#200411-200901

sub16401-31650

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-53010i1K#..KDJ120,KZJ120200307-200803

sub16475-51010

main16405-50050i1KZTE..KZJ120200209-200211

sub16405-50051

main16405-50051i1KZTE..KZJ120200211-200409

main16475-51010i1K#..KDJ120,KZJ120200804

sub16475-28140

16470TANK ASSY, RADIATOR RESERVE

main16470-30030i1K#..KDJ120,KZJ120200307

main16470-50140i1GRFE..GRJ12#..ARL,GCC,GEN200209-200409

16533BSUPPORT, RADIATOR, NO.1

main16533-50090i1K#..KDJ120,KZJ120200209-200908

NO.1

main16534-50050i1GRFE..GRJ120..5FC..CHI200209-200908

NO.2

16534SUPPORT, RADIATOR, NO.2

main16534-50050i1GRFE..GRJ120..CHI200209-200908

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50010i5LE..LJ12#200209-200908

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i1GRFE..GRJ120..CHI200209-200409

main16567-50080i1KZTE..KZJ120200209-200307

sub16567-38040

16571CHOSE, RADIATOR, NO.1

main16571-30060i1KDFTV..KDJ120200608

main16571-31130i1GRFE..GRJ120..5FC..CHI200301-200409

main16571-54630i5LE..LJ12#200209

sub16571-54631

main16571-67110i1KZTE..KZJ120200209

main16571-75230i3RZFE..RZJ12#200209-200408

main16571-75231i2TRFE..TRJ12#200408

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41008i1K#..KDJ120,KZJ120200209-200701

main90467-37005i5LE..LJ12#200209-200701

main96136-44301i2TRFE..TRJ12#200702

main96136-54801i1K#..KDJ120,KZJ120200702

16572DHOSE, RADIATOR, NO.2

main16572-30050i1K#..KDJ120,KZJ120200209

main16572-31170i1GRFE..GRJ120..5FC..CHI200301-200409

main16572-54710i5LE..LJ12#200209

main16572-75240i3RZFE..RZJ12#200209-200408

main16572-75241i2TRFE..TRJ12#200408

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41008i5LE..LJ12#200209-200705

NO.2

main90466-41008i1K#..KDJ120,KZJ120200209-200701

main90467-37005i1GRFE..GRJ12#..ARL,GCC,GEN200209-200701

main90467-37005i5LE..LJ12#200209-200701

NO.1

main96136-44301i1GRFE..GRJ12#..ARL,GCC,GEN200702

NO.1

main96136-54801i1K#..KDJ120,KZJ120200702

main96136-54801i5LE..LJ12#200706

NO.2

16711SHROUD, FAN

main16711-30040i1KZTE..KZJ120200209-200307

sub16711-30041

sub16567-30010

main16711-30041i1K#..KDJ120,KZJ120200307

main16711-31200i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200409

main16711-54770i5LE..LJ12#200209

main16711-75220i2TRFE..TRJ12#200209-200408

9011906779

main90119-06779

9017906185

main90179-06185

9017906293

main90179-06293

9162160840

main91621-60840

20 parts on this diagram · 12 diagrams in section
