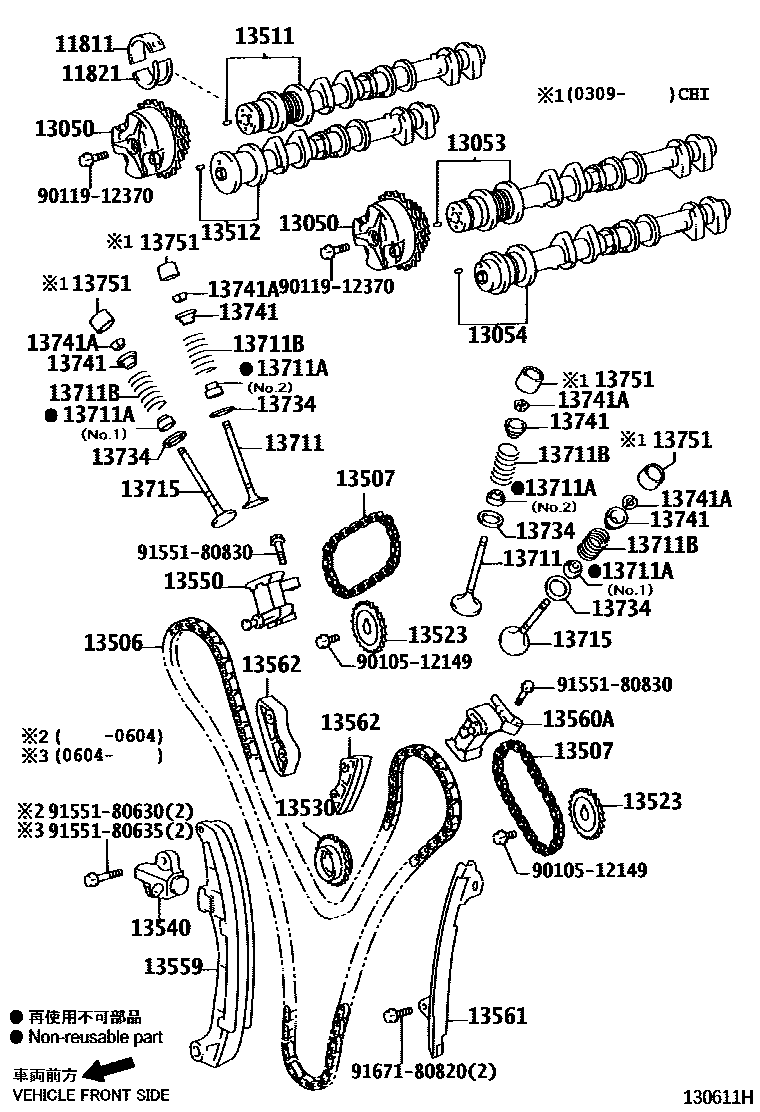

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
W/O(MARK)
W(MARK)
13512CAMSHAFT, NO.2
W(MARK)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
main13711-75060×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
NO.2
NO.1
13711BSPRING, COMPRESSION(FOR INNER)
ORANGE PAINTED
13715VALVE, EXHAUST
main13715-75050×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010512149
main90105-12149
9011912370
main90119-12370
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
9167180820
main91671-80820
31 parts on this diagram · 6 diagrams in section
