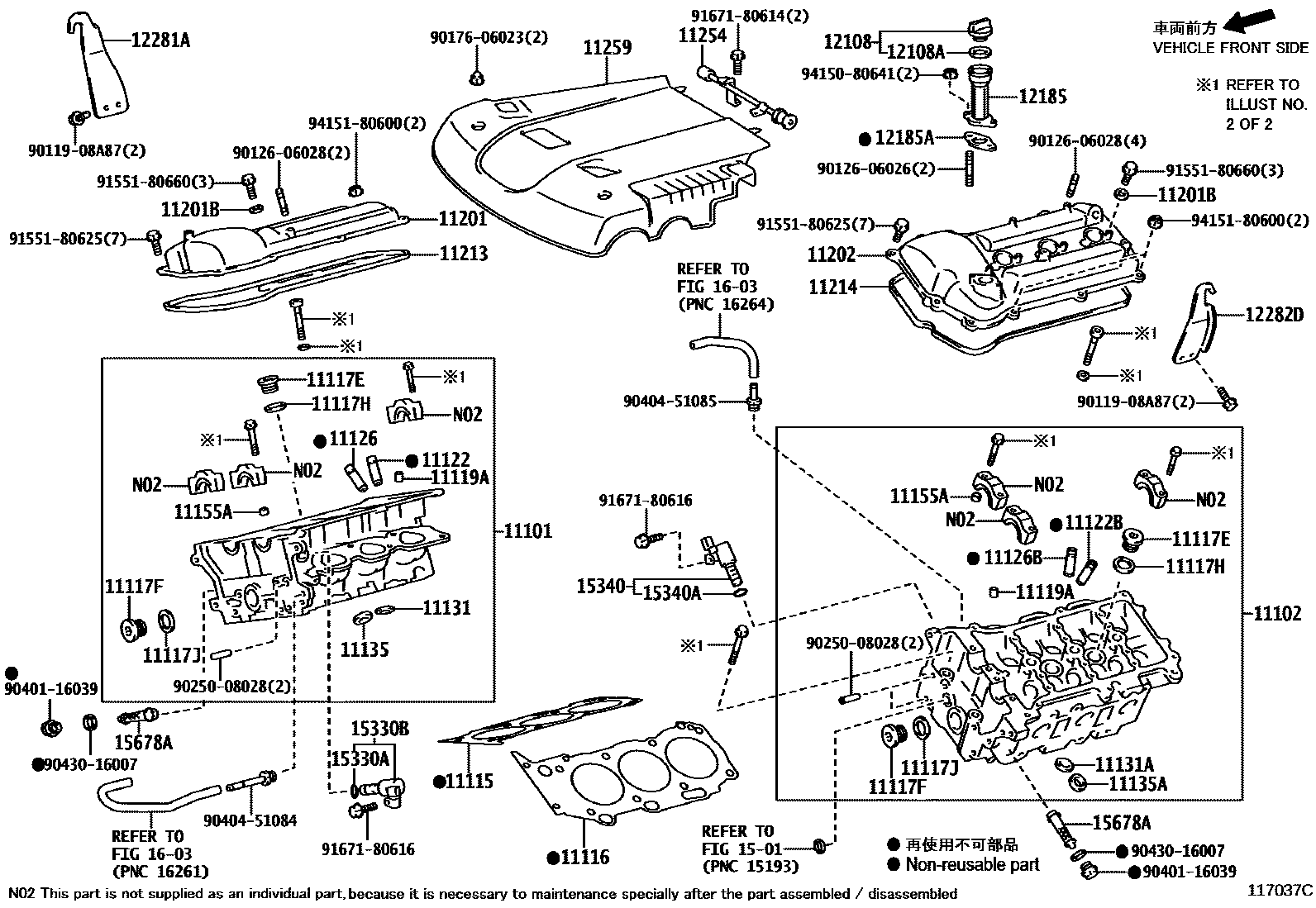

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
main11101-79266i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
OTHER CO IN S.AMERICA & NEW CALEDONIA; UNLEADED GASOLINE SPEC; VIETNAM SPEC
11102HEAD, CYLINDER, LH
11115GASKET, CYLINDER HEAD
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK F,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
STD
STD
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
main11131-75030×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
STD; STD,OTHER CO IN S.AMERICA & NEW CALEDONIA; STD,UNLEADED GASOLINE SPEC; STD,VIETNAM SPEC
STD
STD
O/S 0.03
main11132-75030×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
O/S 0.03; O/S 0.03,OTHER CO IN S.AMERICA & NEW CALEDONIA; O/S 0.03,UNLEADED GASOLINE SPEC; O/S 0.03,VIETNAM SPEC
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
main11135-75040×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
STD; STD,OTHER CO IN S.AMERICA & NEW CALEDONIA; STD,UNLEADED GASOLINE SPEC; STD,VIETNAM SPEC
STD
STD
O/S 0.03
main11136-75040×8i3RZFE..RZJ12#..ARL,GCC; 3RZFE..RZJ12#..LHD..5F..GEN; 3RZFE..RZJ12#..LHD..GEN200209-200408
O/S 0.03; O/S 0.03,OTHER CO IN S.AMERICA & NEW CALEDONIA; O/S 0.03,UNLEADED GASOLINE SPEC; O/S 0.03,VIETNAM SPEC
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11155APIN, RING W/HEAD
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11254BRACKET, V-BANK COVER, NO.1
11259COVER, V-BANK
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
1501ENGINE OIL PUMP
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603RADIATOR & WATER OUTLET
9011908A87
main90119-08A87
9012606026
main90126-06026
9012606028
main90126-06028
9017606023
main90176-06023
9025008028
main90250-08028
9040116039
main90401-16039
9040451084
main90404-51084
9040451085
main90404-51085
9043016007
main90430-16007
9155180625
main91551-80625
9155180660
main91551-80660
9167180614
main91671-80614
9167180616
main91671-80616
9415080641
main94150-80641
9415180600
main94151-80600
53 parts on this diagram · 7 diagrams in section
