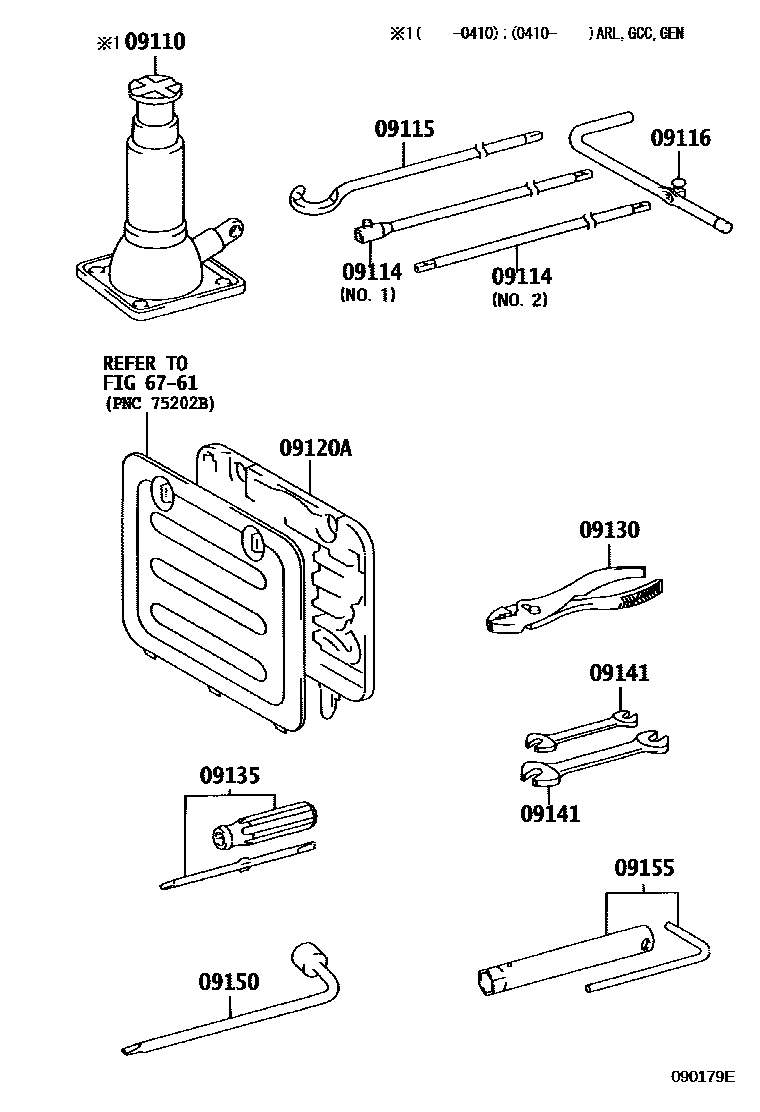

STANDARD TOOL

09110JACK ASSY

main09111-35180iGRJ120..CHI200209-200405

sub09111-35181

main09111-35181iGRJ120..CHI200405-200703

sub09111-35182

main09111-35182iGRJ12#,KZJ120,LJ12#,TRJ12#..GCC,GEN200704-200908

sub09111-60140

main09111-60111iGRJ120,KZJ120,RZJ120..ARL200406-200501

sub09111-60112

main09111-60112iGRJ120..CHI200612

main09111-60112iGRJ120,KDJ120,KZJ120..ARL200501-200908

CHINA SPEC

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

NO.2

main09114-35050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

09116LEVER, JACK HANDLE

main09116-35080iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

sub09116-60020

09120ACASE, TOOL

main09120-60200iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

09130PLIERS

main99913-11500iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

09135DRIVER, SCREW

main99915-10700iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

09141SPANNER

main99914-10810iGRJ120..CHI200209

8 X 10

main99914-11214iGRJ120..CHI200209

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

TOOL-WITHOUT

main09150-35070iGRJ120..CHI200309

09155WRENCH, SPARK PLUG

main09155-74010iGRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

TOOL-WITHOUT

main09155-74010iGRJ120..CHI200309-200802

main09155-75010iGRJ120..CHI200802

sub09155-74010

6761

11 parts on this diagram · 1 diagram in section
