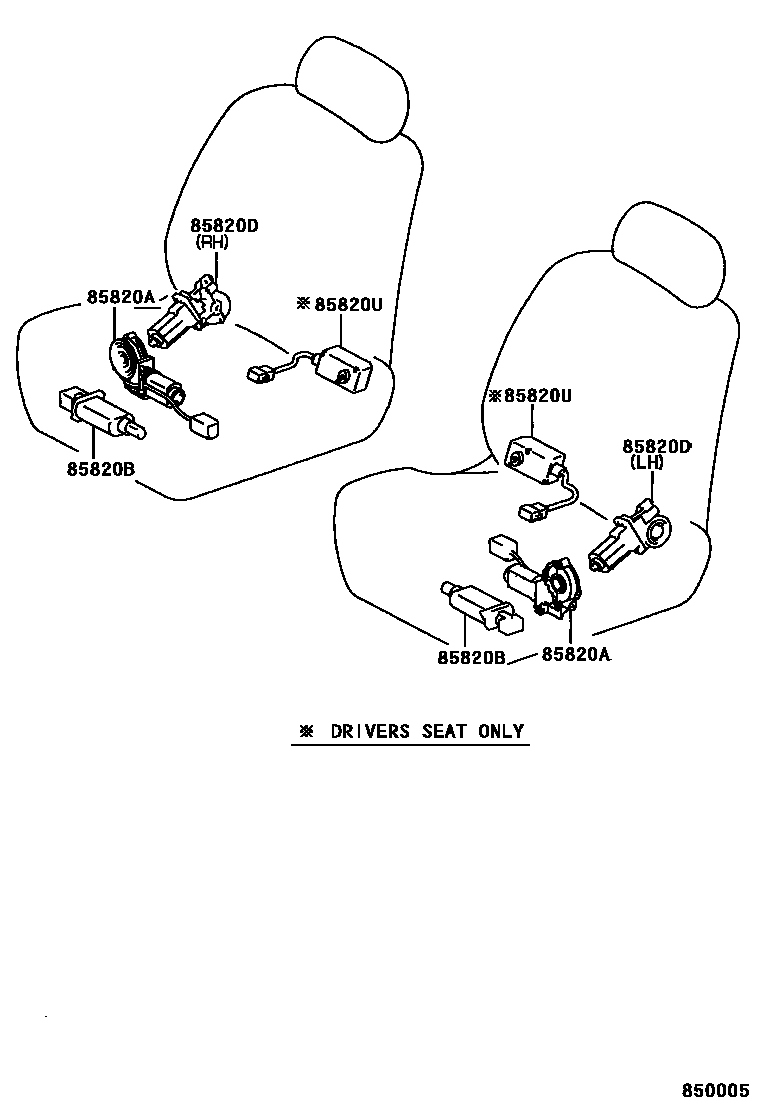

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-60070iVZJ95..VX..ARL199604-199906

main85820-60080iVZJ95..GCC199906-200001

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-35020iVZJ95..VX..(ARL,GCC)199906-200001

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85820-60090iVZJ95..VX..(ARL,GCC)199604-199906

RH

main85820-60100iVZJ95..VX..(ARL,GCC)199604-199906

LH

85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)

main85820-60110iVZJ95..VX..(ARL,GCC)199604-199906

4 parts on this diagram · 1 diagram in section
