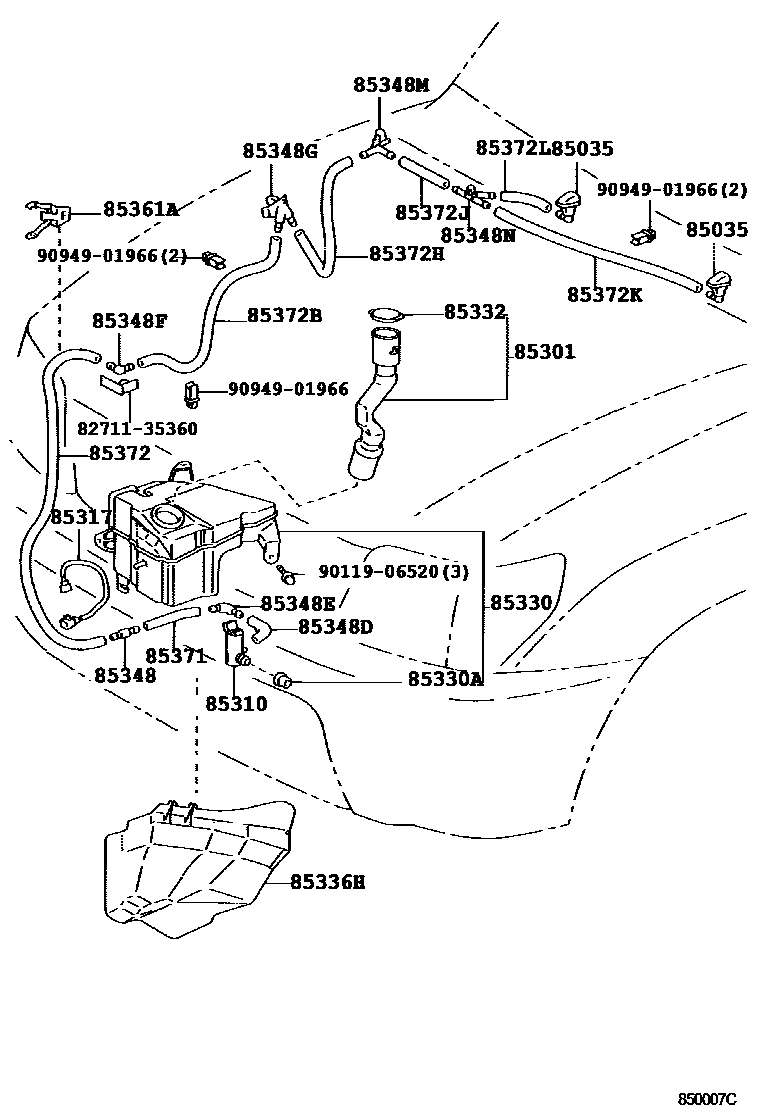

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iRZJ95..ARL200010-200209

main85381-60030×2iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200010

main85381-60040×2iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

85301INLET SUB-ASSY, WASHER

main85301-35010iKZJ9#,LJ9#199906-200209

main85301-60010iRZJ9#,VZJ9#199906

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60130iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85317WIRING ASSY, WASHER

main85317-60250iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85330JAR ASSY, WINDSHIELD WASHER

main85315-35250iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199710

main85315-35251iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199710-200209

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iVZJ95..CO;RZJ9#..ARL,CO199906-200209

main85316-33050iKZJ9#,LJ9#199906-200209

85336HCOVER, WINDSHIELD WASHER JAR UNDER

main85336-35240iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-16192iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85377-34010iLJ9#199906-200209

main85377-35240iKZJ9#,RZJ9#,VZJ9#199906

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85377-32220iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85378-60350iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-60170iKZJ9#,LJ9#199604-199906

main85361-60180iRZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=150)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=340)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKZJ9#,RZJ9#,VZJ9#; LJ9#199604-199906

L=1450(*H,L=740); L=1450(*H,L=750)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=330)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=185)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=725)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=1450(*H,L=145)

8271135360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35360

9011906520

main90119-06520

9094901966

main90949-01966

26 parts on this diagram · 1 diagram in section
