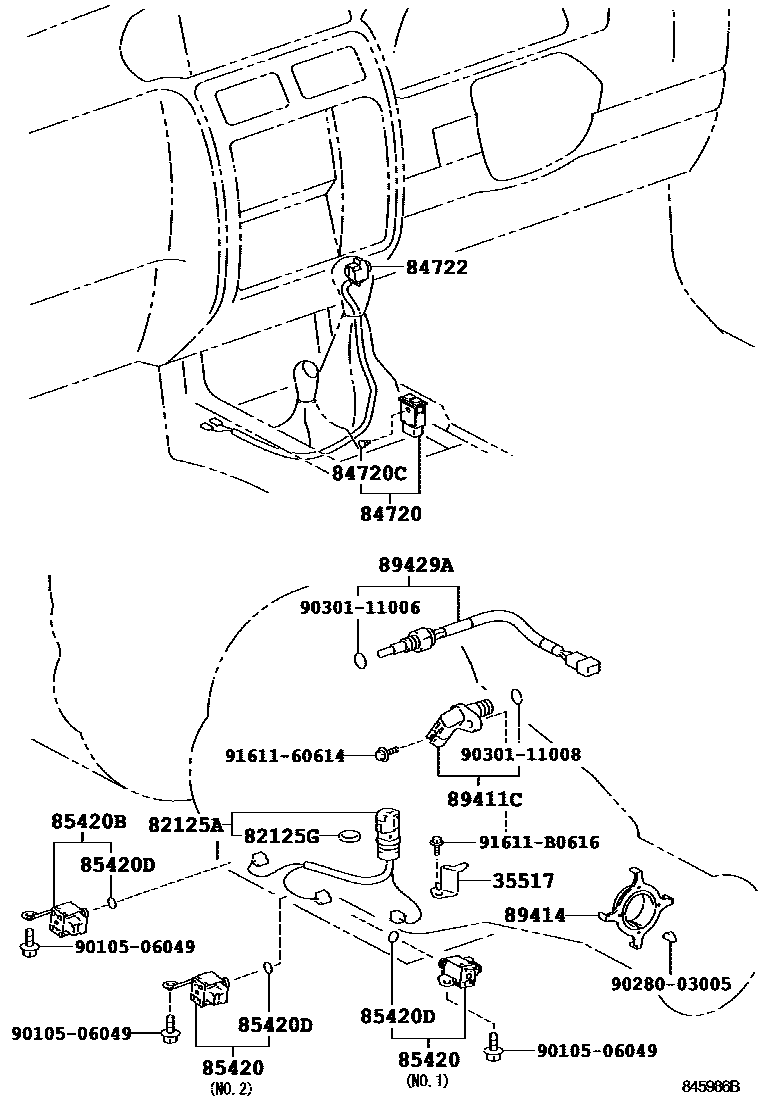

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
35517PLATE, TRANSMISSION WIRE LOCK
82125AWIRE, TRANSMISSION
82125GRING, O(FOR TRANSMISSION WIRE)
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
14V 1.4W
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM1#
BLACK,TRIM1#,4#
85420SOLENOID ASSY, TRANSMISSION
NO.1,AISIN
NO.1,DENSO
NO.2,AISIN
NO.2,DENSO
NO.1 & NO.2 DENSO
NO.1 & NO.2 AISIN
NO.1 & NO.2 DENSO
NO.1 & NO.2 AISIN
NO.1
NO.2
NO.1 & NO.2 DENSO
85420BSOLENOID ASSY, TRANSMISSION
DENSO
DENSO
AISIN
85420DRING, O (FOR TRANSMISSION SOLENOID)
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89429ASENSOR, TEMPERATURE
9010506049
main90105-06049
9028003005
main90280-03005
9030111006
main90301-11006
9030111008
main90301-11008
9161160614
main91611-60614
91611B0616
main91611-B0616
18 parts on this diagram · 2 diagrams in section
