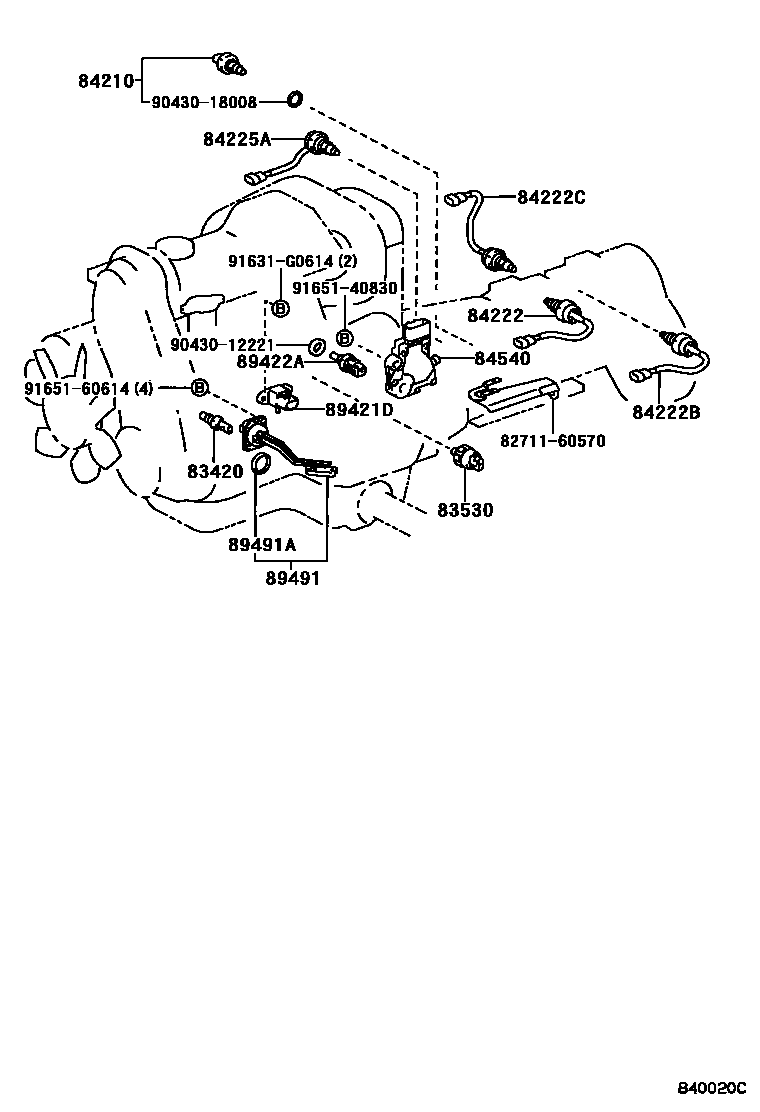

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1CLUSTER PANEL SWITCHES 0007 1CLUSTER PANEL SWITCHES 0008 1IGNITION & COMBINATION SWITCH0009 1ICNITION & COMBINATION SWITCH0010 1COWL 0011 1COWL 0012 1ROOF,DOOR,SEAT & FLOOR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZJ9#199604-199910

main83420-16040iKZJ9#,LJ9#199604-200209

main83420-20040iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI199604-199910

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZJ9#,VZJ9#199803-200209

main83530-30060iLJ9#199604-199803

main83530-30090iRZJ9#,VZJ9#199604-199803

main83530-60010iKZJ9#199604-200209

main83530-60030iLJ9#199803-200209

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iRZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iVZJ95..ATM;RZJ95..ATM..ARL199604-200310

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

84225ASWITCH, SHIFT POSITION

main84225-35010iKZJ95..MTM..TDEFI200001-200209

84540SWITCH ASSY, NEUTRAL START

main84540-30270iVZJ95..ATM..CO199604-199910

main84540-51010iKZJ95,RZJ95,VZJ95..ATM199906-200209

89421DSENSOR, TURBO PRESSURE

main89421-60030iKZJ9#199604-200008

89422ASENSOR, WATER TEMPERATURE

main89422-20010iKZJ9#;LJ95..RHD..GX199604-200008

89491SENSOR, ENGINE OIL LEVEL

main89491-60050iKZJ95..TDEFI199909-200209

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKZJ95..TDEFI199909-200209

8271160570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60570

9043012221

main90430-12221

9043018008

main90430-18008

91631G0614

main91631-G0614

9165140830

main91651-40830

9165160614

main91651-60614

18 parts on this diagram · 12 diagrams in section
