WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0003 1ENGINE ROOM WIRE 0004 1ENGINE ROOM WIRE 0005 1ENGINE WIRE 0006 1ENGINE WIRE 0007 1ENGINE WIRE 0008 1ENGINE WIRE 0009 1COWL WIRE 0010 1COWL WIRE 0011 1COWL WIRE 0012 1COWL WIRE 0013 1SEAT WIRE 0014 1ROOF,DOOR,FLOOR WIRE 0015 1ENGINE ROOM WIRE CLAMPS & BRA0016 1ENGINE WIRE CLAMPS & BRACKETS0017 1ENGINE WIRE CLAMPS & BRACKETS0018 1ENGINE WIRE CLAMPS & BRACKETS0019 1ENGINE WIRE CLAMPS & BRACKETS0020 1COWL WIRE CLAMPS & BRACKETS 0021 1ROOF,FLOOR,DOOR WIRE CLAMPS &0022 1DIODE 0023 1CONNECTOR

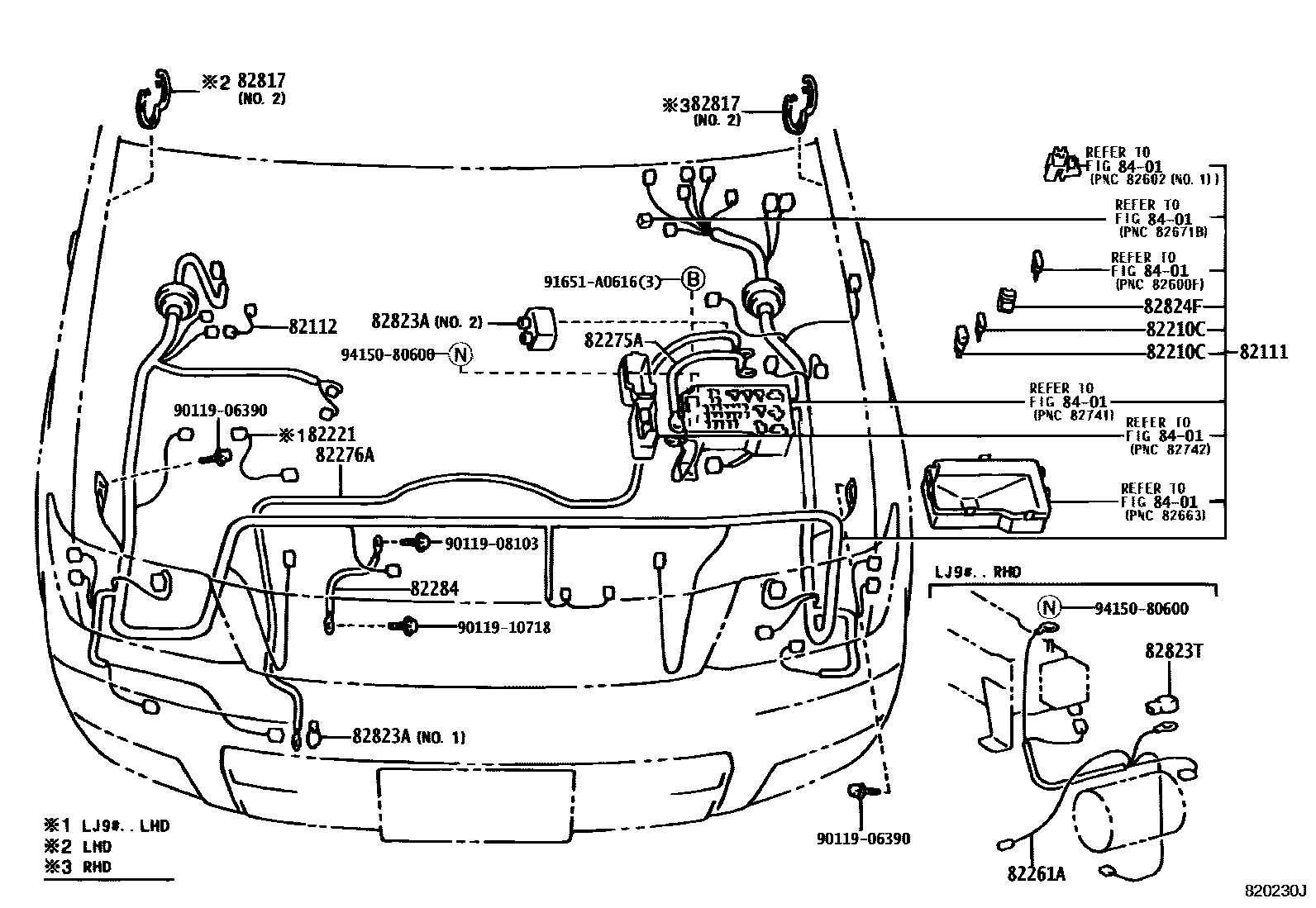

82111WIRE, ENGINE ROOM MAIN

main82111-60442iKZJ95..MA199910-200008

main82111-60510iRZJ90..EFI199604-199801

main82111-60511iRZJ90..EFI199801-199910

main82111-60520iRZJ90..EFI199604-199801

W(ABS)

main82111-60521iRZJ90..EFI..GEN199801-199906

W(ABS)

main82111-60530iKZJ9#199604-199801

main82111-60531iKZJ9#199801-199906

main82111-60532iKZJ9#..GEN199906-200008

main82111-60540iKZJ9#199604-199801

W(ABS)

main82111-60541iKZJ9#199801-199906

W(ABS)

main82111-60542iKZJ9#..GEN199906-200008

W(ABS)

main82111-60550iLJ9#..LHD199604-199801

main82111-60551iLJ9#..LHD199801-199906

main82111-60552iLJ9#..LHD199906-200008

main82111-60553iLJ9#..LHD200008-200209

main82111-60560iRZJ9#..LHD..CBR199604-199801

main82111-60561iRZJ9#..LHD..CBR199801-199906

main82111-60570iRZJ95..LHD..GX199604-199801

W(ABS)

main82111-60571iRZJ95..LHD..GX199801-199906

W(ABS)

main82111-60580iVZJ9#..GCC199608-199801

main82111-60581iVZJ9#..GCC199801-199906

main82111-60582iRZJ9#,VZJ9#..LHD..(GCC,GEN)199906-200008

main82111-60583iVZJ95..ATM..GCC200008-200312

main82111-60590iVZJ9#..GCC199608-199801

W(ABS)

main82111-60591iVZJ9#..GCC199801-199906

W(ABS)

main82111-60591iVZJ95..CO199808-199910

main82111-60592iRZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199906-200008

W(ABS)

main82111-60593iRZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)200008-200312

W(ABS)

main82111-60660iRZJ95..RHD..CBR199604-199801

main82111-60661iRZJ95..RHD..CBR199801-199906

main82111-60670iRZJ95..RHD..GX..CBR199604-199801

W(ABS)

main82111-60671iRZJ95..RHD..GX..CBR199801-199906

W(ABS)

main82111-60680iRZJ95,VZJ95..RHD..EFI199604-199801

main82111-60681iRZJ95,VZJ95..RHD..EFI199801-199906

main82111-60682iRZJ95..ARL199906-200008

main82111-60683iRZJ95..ARL200008-200412

main82111-60690iRZJ95,VZJ95..RHD..EFI199604-199801

W(ABS)

main82111-60691iRZJ95,VZJ95..RHD..EFI199801-199906

W(ABS)

main82111-60692iRZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)199906-200008

W(ABS)

main82111-60692iRZJ95..VX199910-200008

main82111-60693iRZJ95..VX200008-200209

W(ABS)

main82111-60700iLJ9#..RHD199604-199801

main82111-60701iLJ9#..RHD199801-199906

main82111-60702iLJ9#..RHD199906-200008

main82111-60703iLJ9#..RHD200008-200209

main82115-60030iKZJ95..ARL199909-200008

main82115-60031iKZJ95..ARL200008-200209

main82115-60040iKZJ95..ARL199909-200008

W(ABS)

main82115-60041iKZJ95..ARL200008-200209

W(ABS)

main82115-60050iKZJ95..ATM..ARL199909-200008

W(ABS & VSC & ACTIVE TRC)

main82115-60051iKZJ95..ATM..ARL200008-200010

W(ABS & VSC & ACTIVE TRC)

main82115-60052iKZJ95..ATM..ARL200010-200209

W(ABS & VSC & ACTIVE TRC)

main82115-60060iVZJ95..ATM..ARL199906-200008

W(ABS & VSC & ACTIVE TRC)

main82115-60061iVZJ95..ATM..ARL200008-200209

W(ABS & VSC & ACTIVE TRC)

main82115-60140iKZJ95..GEN200008-200209

main82115-60150iKZJ95..GEN200008-200209

W(ABS)

82112WIRE, ENGINE ROOM, NO.2

main82112-60110iVZJ95..ARL199604-200209

82210CFUSIBLE LINK

main90982-08202iVZJ95..CO199604-200209

60A,TERM.:MALE,YEL

main90982-08203iKZJ9#,LJ9#199604-200209

80A,TERM.:MALE,BLK

main90982-08246iRZJ9#,VZJ9#..LHD..(GCC,GEN)199604-200209

100A,TERM.:MALE,BLUE

main90982-08280iVZJ95..CO199604-200209

30A,TERM.:FEMALE,PNK

main90982-08282iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

50A,TERM.:FEMALE,RED

82221WIRE, OIL PRESSURE SWITCH

main82221-60030iLJ9#..LHD199604-200209

main82221-60040iRZJ9#..CBR199604-199906

82261AWIRE, ALTERNATOR

main82261-60050iLJ9#..RHD199604-200209

main82261-60110iKZJ95..RHD199909-200209

82275ACABLE, BATTERY TO MAGNET SWITCH

main82275-60060iRZJ9#,VZJ9#..GCC,GEN199604-200209

main82275-60070iLJ9#..RHD199604-200209

main82275-60080iKZJ9#199604-200209

main82275-60090iLJ9#..LHD199604-200209

82276ACABLE, MAGNET SWITCH TO WINCH

main82276-60050iRZJ9#,VZJ9#..GCC,GEN199604-200209

main82276-60060iKZJ9#,LJ9#199604-200209

82284WIRE, EARTH

main82284-60080iRZJ95..GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..LHD..(GCC,GEN)199604-200209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199704-200209

NO.2

main82817-32840iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

main82817-35450iRZJ90..CO;KZJ9#,VZJ95..(EFI,TD)..(CO,GEN)199604-200008

NO.1

main82817-35630iVZJ95..GCC200008-200312

NO.1

82823ACAP, TERMINAL, NO.2

main82823-22080iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-200209

NO.1

main82823-90300iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-200209

NO.2

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iKZJ9#,LJ9#199604-200812

82824CONNECTOR, WIRING HARNESS

main82824-12210iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200312

82824FCONNECTOR, WIRING HARNESS

main82824-30180iRZJ9#,VZJ9#..LHD..(GCC,GEN)199604-200209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

9011908103

main90119-08103

9011910718

main90119-10718

91651A0616

main91651-A0616

9415080600

main94150-80600

19 parts on this diagram · 22 diagrams in section
