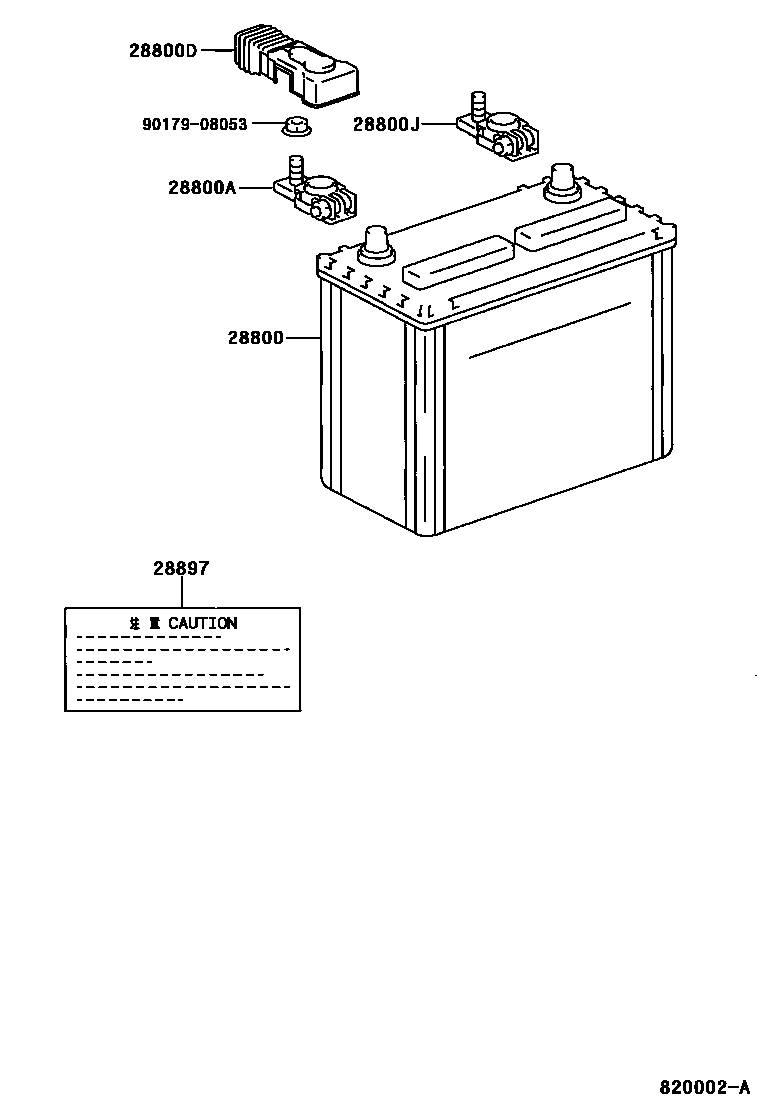

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42031i3RZ#,5VZFE..RZJ9#,VZJ9#199604-199712

55D23L

main28800-42041i3RZFE,5VZFE..RZJ90,VZJ95200709

55D23L,YUASA

main28800-42042i3RZFE..RZJ95..ARL; 3RZFE..RZJ95..MTM..GCC200103-200209

55D23L,YUASA

main28800-54020i3L..LJ9#..LHD;3RZFE..RZJ95..GCC200103-200312

80D26L,GS

main28800-54221i3L..LJ9#..RHD; 3L..LJ95..LHD199604-199712

80D26R; 80D26R,W(2 BATTERY),RH

main28800-54232i3L..LJ9#..RHD200103-200209

80D26R,YUASA

main28800-54472i3L..LJ9#..RHD200103-200209

80D26R,MATSUSHITA

main28800-64010i3RZFE,5VZFE..RZJ9#,VZJ9#199906-200103

55D23L

main28800-64062i1KZTE..KZJ95..RHD200103-200209

95D31R

main28800-64131i3L..LJ9#..LHD;3RZF..RZJ95..GCC199604-199906

80D26L,YUASA

main28800-64132i3L..LJ9#..LHD;3RZFE..RZJ95..GCC200103-200312

80D26L,YUASA

main28800-64182i1KZTE..KZJ95..GEN200103-200209

95D31L

main28800-66011i1KZT..KZJ9#199604-199712

105D31L

main28800-67030i3L..LJ9#..RHD; 3L..LJ95..LHD199712-199906

80D26R,GS; 80D26R,W(2 BATTERY),RH

main28800-67070i1KZTE..KZJ95..RHD199909-200103

105D31R

main28800-67080i1KZ#..KZJ9#..GEN199906-200103

105D31L

main28800-76090i3RZFE..RZJ95..ARL200103-200209

55D23L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main90982-05035×2i3L..LJ95..LHD199604-199906

W(2 BATTERY)

main90982-05054i3RZFE..RZJ95..ARL200006-200209

W(1 BATTERY)

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020×2i3L..LJ95..LHD199604-199906

W(2 BATTERY)

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i3L..LJ95..LHD199604-199906

28897PLATE, BATTERY CAUTION

main28897-54030i3L..LJ95..LHD199604-199906

9017908053

main90179-08053

6 parts on this diagram · 1 diagram in section
