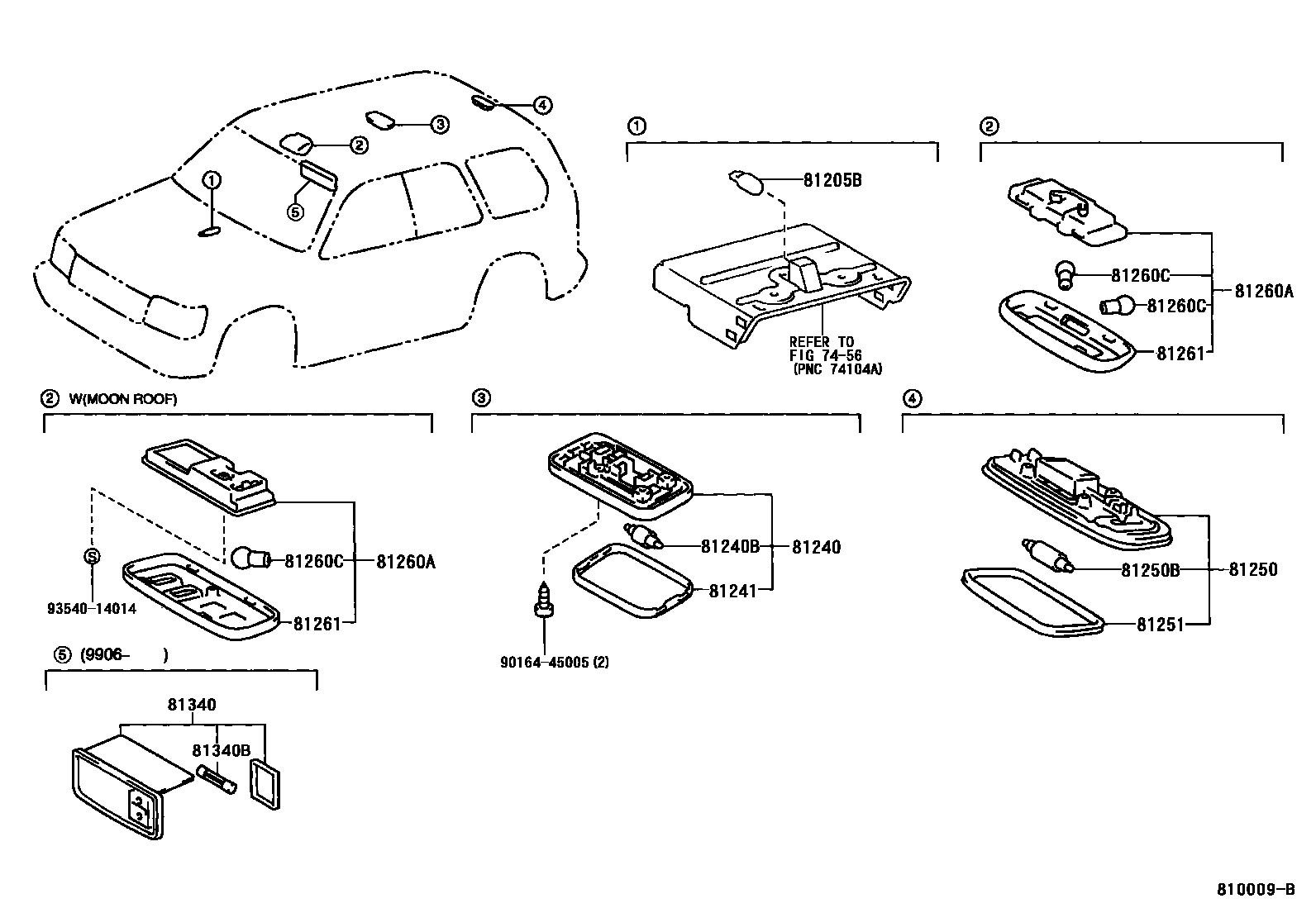

INTERIOR LAMP

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iRZJ95,VZJ90..VX;VZJ95..MTM..GCC;KZJ95,VZJ95..(EFI,TDEFI)..(ARL,CO,GEN)199906

12V 1.2W W/O SOCKET

main90981-11041iVZJ9#..VX199604-199906

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iRZJ95..ARL199910-200209

LT.BLUISH GRAY,TRIM1#

main81240-12060-B2iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main81240-12060-E0iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA)199906-200312

MD.OAK,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

81250LAMP ASSY, ROOM, NO.2

main81240-60020-B0iVZJ95..CO199906-199910

MOON MIST,TRIM1#

main81240-60020-C0iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)199906-200312

BLACK,TRIM1#,4#

81250BBULB, ROOM LAMP, NO.2

main90981-11004iKZJ95,LJ95,RZJ95,VZJ95199906

12V 10W

81251LENS, ROOM LAMP, NO.2

main81241-95013iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

81260ALAMP ASSY, MAP

main81260-20230-B2iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199807

W(MOON ROOF),MOON MIST,TRIM1#

main81260-20230-B3iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-200312

W(MOON ROOF),LT.BLUISH GRAY,TRIM1#

main81260-20230-E0iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-200312

W(MOON ROOF),MD.OAK,TRIM4#

main81260-60040-B0iRZJ90,VZJ95..CO199906-199910

MOON MIST,TRIM1#

main81260-60040-B1iRZJ95..ARL199910-200209

LT.BLUISH GRAY,TRIM1#

main81260-60040-E0iRZJ95..ARL199910-200209

MD.OAK,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-12014iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199807

12V 10W,W(MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-20160-B1iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-200312

W(MOON ROOF),LT.BLUISH GRAY,TRIM1#

main81261-20160-B3iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199807

W(MOON ROOF),MOON MIST,TRIM1#

main81261-20160-E2iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-200312

W(MOON ROOF),MD.OAK,TRIM4#

main81261-60040-B0iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

MOON MIST,TRIM1#

main81261-60040-B1iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

LT.BLUISH GRAY,TRIM1#

main81261-60040-E0iRZJ95..ARL199910-200209

MD.OAK,TRIM4#

81340LAMP ASSY, VANITY

main81340-33090-B6iVZJ95..ATM..GCC199906-200310

LT.BLUISH GRAY,TRIM1#,LH

main81340-33090-E0iVZJ95..ATM..GCC199906-200310

MD.OAK,TRIM4#,LH

main81350-33040-B6iVZJ95..VX..ARL;VZJ95..MTM..GCC;KZJ95,RZJ95,VZJ90..VX199906-200209

LT.BLUISH GRAY,TRIM1#,RH

main81350-33040-E0iVZJ95..VX..ARL;VZJ95..MTM..GCC;KZJ95,RZJ95,VZJ90..VX199906-200209

MD.OAK,TRIM4#,RH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iRZJ95..ATM..GCC200001-200209

12V 1.5W

9016445005

main90164-45005

9354014014

main93540-14014

15 parts on this diagram · 1 diagram in section
