E
EPC Data

SEAT & SEAT TRACK

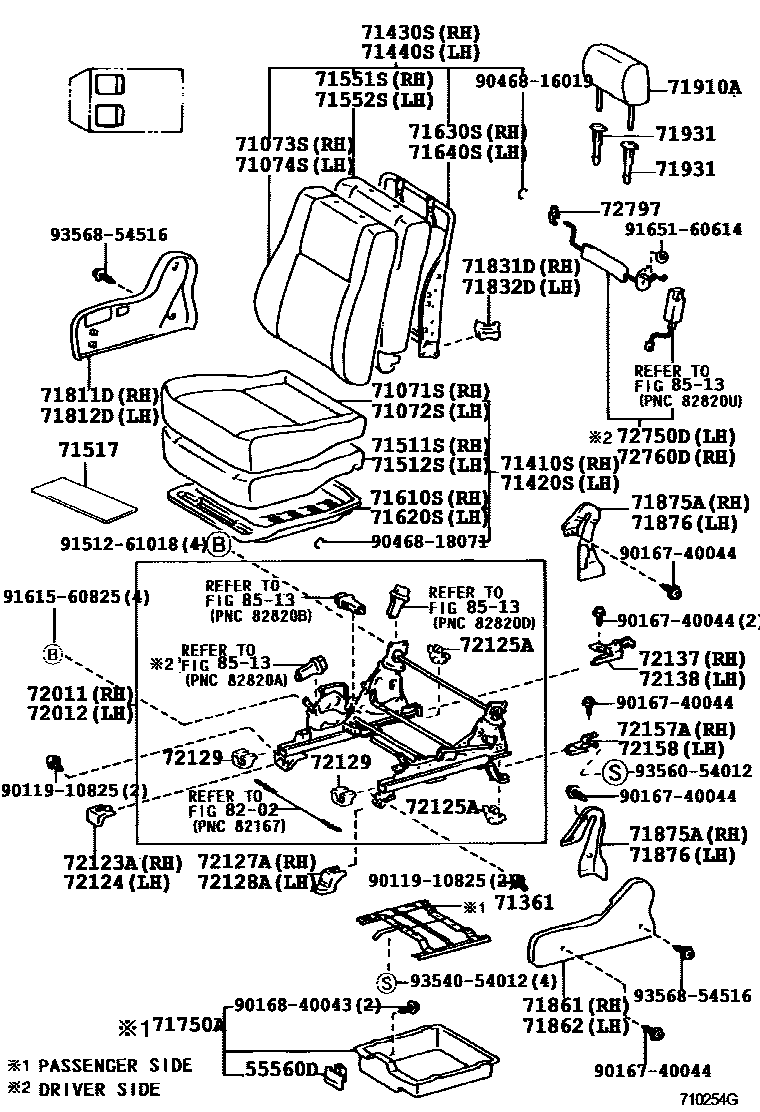

Parts diagram
55560DLOCK ASSY, SEAT UNDER TRAY
main55560-95J00-B1i199903-199905
SNOWY EDITION(AUSTRALIA),MD. MOON MIST,TRIM10
main55560-95J00-C0i199906-200209
BLACK,TRIM1#,4#
main72250-36010-B0i199604-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main72250-36010-C0i200008-200209
BLACK,TRIM4#
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60680-B0i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71071-60690-B0i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71071-60700-B1i199903-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71071-60710-B0i199604-199906
LEATHER,GRAY,TRIM1#
main71071-60740-B1i199604-199906
GRAY,TRIM1#
main71071-60750-B0i199604-199906
GRAY,TRIM1#
main71071-60830-B0i199608-199906
GRAY,TRIM1#
main71071-60860-B0i199810-199906
CHINA SPEC & LEATHER,GRAY,TRIM1#
main71071-6A110-E0i200001-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71071-6A111-B0i200209-200310
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71071-6A111-E0i200209-200310
SEAT = TYPE B-*104,MEDIUM OAK,TRIM40
main71071-6A130-B0i200011-200209
SEAT = TYPE A-*104,MOON MIST,TRIM1#
main71071-6A130-E0i199910-200011
SEAT = TYPE A-*104,OAK,TRIM4#
main71071-6A140-B0i199906-200412
SEAT = TYPE C-*104,GRAY,TRIM1#
main71071-6A150-B0i199906-200209
SEAT = TYPE C-*104 & W(BENCH SEAT),GRAY,TRIM1#
main71071-6A160-B0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MOON MIST,TRIM1#
main71071-6A160-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71071-6A170-B0i200104-200106
LIMITED EDITION(AUSTRALIA),MOON MIST,TRIM1#
main71071-6A170-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71071-6A200-E0i200008-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71071-6A210-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71071-6A210-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71071-6A220-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71071-6A220-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-60690-B1i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71071-60720-B1i199903-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71071-60730-B1i199608-199906
GRAY,TRIM1#
main71071-60740-B1i199906-199910
GRAY,TRIM1#
main71071-60750-B0i199604-199906
GRAY,TRIM1#
main71071-6A120-B0i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MD.MOON MIST,TRIM1#
main71071-6A120-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71071-6A130-B0i199906-200312
SEAT = TYPE A-*104,MOON MIST,TRIM1#
main71071-6A130-E0i199906-200312
SEAT = TYPE A-*104,OAK,TRIM4#
main71071-6A140-B0i199906-200209
SEAT = TYPE C-*104,GRAY,TRIM1#
main71071-6A210-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71071-6A210-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71071-6A220-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71071-6A220-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71072-60570-B0i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71072-60580-B1i199801-199906
W(BENCH SEAT),GRAY,TRIM1#
main71072-60600-B0i199604-199906
LEATHER,GRAY,TRIM1#
main71072-60650-B0i199810-199906
CHINA SPEC & LEATHER,GRAY,TRIM1#
main71072-60750-B0i199906-200412
SEAT = TYPE C-*104 & W(BENCH SEAT),GRAY,TRIM1#
main71072-60760-B0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MOON MIST,TRIM1#
main71072-60760-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71072-60770-E0i200001-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71072-60771-B0i200209-200310
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71072-60771-E0i200209-200310
SEAT = TYPE B-*104,MEDIUM OAK,TRIM40
main71072-60780-E0i199906-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60680-B0i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71073-60690-B1i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71073-60700-B1i199604-199906
GRAY,TRIM1#
main71073-60710-B0i199604-199906
LEATHER,GRAY,TRIM1#
main71073-60730-B1i199608-199906
GRAY,TRIM1#
main71073-60740-B1i199906-199910
GRAY,TRIM1#
main71073-60750-B0i199604-199906
GRAY,TRIM1#
main71073-6A090-B0i199903-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71073-6A100-B0i200104-200106
LIMITED EDITION(AUSTRALIA),MOON MIST,TRIM1#
main71073-6A100-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71073-6A120-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71073-6A120-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71073-6A170-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71073-6A170-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71073-6A180-B0i199906-200312
SEAT = TYPE A-*104,MOON MIST,TRIM1#
main71073-6A180-E0i199906-200312
SEAT = TYPE A-*104,OAK,TRIM4#
main71073-6A190-B0i199906-200412
SEAT = TYPE C-*104,GRAY,TRIM1#
main71073-6A200-B0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MOON MIST,TRIM1#
main71073-6A200-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71073-6A210-B0i199906-200209
SEAT = TYPE C-*104 & W(BENCH SEAT),GRAY,TRIM1#
main71073-6A260-B0i199906-200310
SEAT = TYPE D-*104,MOON MIST,TRIM1#
main71073-6A260-E0i199906-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM40
main71073-6A260-E1i200209-200310
SEAT = TYPE D-*104,OAK,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-60720-B1i199903-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71073-60740-B1i199906-199910
GRAY,TRIM1#
main71073-60750-B0i199604-199906
GRAY,TRIM1#
main71073-6A120-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71073-6A120-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71073-6A180-B0i199910-200209
SEAT = TYPE A-*104,MOON MIST,TRIM1#
main71073-6A180-E0i199906-200312
SEAT = TYPE A-*104,OAK,TRIM4#
main71073-6A190-B0i199906-200209
SEAT = TYPE C-*104,GRAY,TRIM1#
main71074-60620-B0i199604-199906
W(BENCH SEAT),GRAY,TRIM1#
main71074-60630-B1i199801-199906
W(BENCH SEAT),GRAY,TRIM1#
main71074-60650-B0i199604-199906
LEATHER,GRAY,TRIM1#
main71074-60670-B1i199906-199910
GRAY,TRIM1#
main71074-60760-B0i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71074-60760-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71074-60770-B0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MOON MIST,TRIM1#
main71074-60770-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71074-60780-B0i199906-200412
SEAT = TYPE C-*104 & W(BENCH SEAT),GRAY,TRIM1#
main71074-60790-B0i199906-200310
SEAT = TYPE D-*104,MOON MIST,TRIM1#
main71074-60790-E0i199906-200209
SEAT = TYPE D-*104,MEDIUM OAK,TRIM40
main71074-60790-E1i200209-200310
OAK,TRIM4#
71361BRACKET, FRONT SEAT SET, NO.1
main71361-60040i200001-200209
main71361-60050i199906-200209
main71362-60030i199906-200209
W(LEATHER SEAT)
main71362-60040i199903-199905
SNOWY EDITION(AUSTRALIA)
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-6A290-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71410-6A300-B0i199608-199906
LEATHER,MD.MOON MIST,TRIM1#
main71410-6A350-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71410-6A360-B0i199608-199906
LEATHER,MD.MOON MIST,TRIM1#
main71410-6A390-B0i199903-199905
SNOWY EDITION(AUSTRALIA),MD. MOON MIST,TRIM10
main71410-6A420-B0i199906-199910
MD.MOON MIST,TRIM1#
main71410-6A420-B2i200209
MD.MOON MIST,TRIM1#
main71410-6A440-B0i199604-199906
MD.MOON MIST,TRIM1#
main71410-6A570-B0i199608-199906
CHINA SPEC & LEATHER,MD. MOON MIST,TRIM1#
main71410-6A640i199910
main71410-6A640-B0i199906-199910
MD.MOON MIST,TRIM1#
main71410-6A780i200209-200310
main71410-6A780-E0i199906-200209
SEAT = TYPE D-*104 & W(SEAT HEATER),OAK,TRIM4#
main71410-6A800-E0i200008-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71410-6A840-E0i199906-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71410-6A860-B1i200104-200106
LIMITED EDITION(AUSTRALIA),MD.MOON MIST,TRIM1#
main71410-6A860-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71410-6A880-B1i199906-200209
SEAT = TYPE B-*104 & W(SEAT BELT WARNING FOR PASSENGER SEAT),MD.MOON MIST,TRIM1#
main71410-6A880-E0i199906-200209
SEAT = TYPE B-*104 & W(SEAT BELT WARNING FOR PASSENGER SEAT),OAK,TRIM4#
main71410-6A890-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71410-6A890-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71410-6B010-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71410-6B010-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71410-6B040-B1i199910-200001
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71410-6B040-E0i199910-200001
SEAT = TYPE A-*104,OAK,TRIM4#
main71410-6B050-B1i200001-200209
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71410-6B050-E0i200001-200209
SEAT = TYPE A-*104,OAK,TRIM4#
main71410-6B060-B1i199906-200209
SEAT = TYPE A-*104 & W(SEAT BELT WARNING FOR PASSENGER SEAT),MD.MOON MIST,TRIM1#
main71410-6B060-E0i199906-200209
SEAT = TYPE A-*104 & W(SEAT BELT WARNING FOR PASSENGER SEAT),OAK,TRIM4#
main71410-6B080-B1i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71410-6B080-E0i200008-200209
OAK,TRIM4#
main71410-6B090-B1i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT & SEAT BELT WARNING FOR PASSENGER SEAT),MD.MOONMIST,TRIM1#
main71410-6B090-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT & SEAT BELT WARNING FOR PASSENGER SEAT),OAK,TRIM4#
main71410-6B100-B1i199906-200412
SEAT = TYPE C-*104,MD.MOON MIST,TRIM1#
main71410-6B110-B1i199906-200209
SEAT = TYPE C-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-6A360-B0i199604-199906
LEATHER,MD.MOON MIST,TRIM1#
main71410-6A400i199910
main71410-6A400-B0i199608-199906
MD.MOON MIST,TRIM1#
main71410-6A420-B0i199604-199906
MD.MOON MIST,TRIM1#
main71410-6A420-B2i200209
MD.MOON MIST,TRIM1#
main71410-6A440-B0i199604-199906
MD.MOON MIST,TRIM1#
main71410-6A560-B0i199608-199906
LEATHER,MD.MOON MIST,TRIM1#
main71410-6A790i200209-200310
main71410-6A790-E0i200001-200209
SEAT = TYPE D-*104 & W(SEAT HEATER),OAK,TRIM4#
main71410-6A810-E0i200001-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71410-6A890-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71410-6A890-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71410-6B010-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71410-6B010-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71410-6B050-B1i199910-200209
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71410-6B050-E0i199910-200209
SEAT = TYPE A-*104,OAK,TRIM4#
main71410-6B100-B1i199906-200209
SEAT = TYPE C-*104,MD.MOON MIST,TRIM1#
main71420-6A210-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71420-6A230-B0i199604-199906
MD.MOON MIST,TRIM1#
main71420-6A240-B0i199801-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71420-6A530-B1i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71420-6A530-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71420-6A540-B1i199906-200412
SEAT = TYPE C-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71420-6A690-B0i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MD.MOON MIST,TRIM1#
main71420-6A690-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-60240-B0i199903-199905
SNOWY EDITION(AUSTRALIA),MD. MOON MIST,TRIM10
main71040-60330-B1i200104-200106
LIMITED EDITION(AUSTRALIA),MD.MOON MIST,TRIM1#
main71040-60330-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71040-60340-B1i199906-200209
CHINA SPEC,MD.MOON MIST,TRIM1#; SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60340-E0i199906-200209
CHINA SPEC,OAK,TRIM4#; SEAT = TYPE B-*104,OAK,TRIM4#
main71040-60360-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60360-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71040-60410-B1i199910-200001
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71040-60410-E0i199910-200001
SEAT = TYPE A-*104,OAK,TRIM4#
main71040-60420-B1i200001-200312
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71040-60420-E0i200001-200209
SEAT = TYPE A-*104,OAK,TRIM4#
main71040-60430-B1i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71040-60430-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71040-60440-B1i199906-200412
SEAT = TYPE C-*104,MD.MOON MIST,TRIM1#
main71040-60450-B1i199906-200209
SEAT = TYPE C-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71040-60550-E0i199906-200209
SEAT = TYPE D-*104 & W(SEAT HEATER),OAK,TRIM4#
main71040-60551-B1i200209-200310
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60551-E2i200001-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71040-60570-E0i199906-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71040-60600-E0i199906-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71430-6A050-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71430-6A070-B0i199608-199906
LEATHER,MD.MOON MIST,TRIM1#
main71430-6A100-B0i199604-199906
LEATHER,MD.MOON MIST,TRIM1#
main71430-6A120-B0i199608-199906
CHINA SPEC,MD.MOON MIST,TRIM1#; LEATHER,MD.MOON MIST,TRIM1#
main71430-6A140-B0i199604-199906
MD.MOON MIST,TRIM1#
main71430-6A160i199910
main71430-6A160-B0i199608-199906
MD.MOON MIST,TRIM1#
main71430-6A170-B0i199604-199906
MD.MOON MIST,TRIM1#
main71430-6A170-B2i200209
MD.MOON MIST,TRIM1#
main71430-6A180-B0i199604-199906
MD.MOON MIST,TRIM1#
main71430-6A200-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-60340-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60340-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71040-60350-B1i199906-200209
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60350-E0i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71040-60420-B1i199910-200209
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71040-60420-E0i199910-200209
SEAT = TYPE A-*104,OAK,TRIM4#
main71040-60440-B1i199906-200209
SEAT = TYPE C-*104,MD.MOON MIST,TRIM1#
main71040-60460-B1i199906-200412
SEAT = TYPE C-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71040-60540-E0i199906-200209
SEAT = TYPE D-*104 & W(SEAT HEATER),OAK,TRIM4#
main71040-60541-B1i200209-200310
SEAT = TYPE B-*104,MD.MOON MIST,TRIM1#
main71040-60541-E3i200209-200310
SEAT = TYPE B-*104,OAK,TRIM40
main71040-60560-E0i199906-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71040-60610-E0i200008-200209
SEAT = TYPE D-*104,OAK,TRIM4#
main71070-60150-B1i200104-200106
LIMITED EDITION(AUSTRALIA),MD.MOON MIST,TRIM1#
main71070-60150-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71070-60160-B1i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71070-60160-E0i199906-200209
SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4#
main71430-6A080-B0i199608-199906
CHINA SPEC & LEATHER,MD.MOON MIST,TRIM1#
main71430-6A150-B0i199608-199906
MD.MOON MIST,TRIM1#
main71430-6A170-B0i199906-199910
MD.MOON MIST,TRIM1#
main71430-6A170-B2i200209
MD.MOON MIST,TRIM1#
main71430-6A180-B0i199604-199906
MD.MOON MIST,TRIM1#
main71430-6A190-B0i199604-199906
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71430-6A300-B0i199608-199906
LEATHER,MD. MOON MIST,TRIM1#
main71430-6A310-B0i199604-199906
LEATHER,MD. MOON MIST,TRIM1#
main71440-60820-B0i199604-199906
MD.MOON MIST,TRIM1#
main71440-60830-B0i199604-199801
W(BENCH SEAT),MD.MOON MIST,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60030i199608-199810
W(LEATHER SEAT)
main71501-60120i200001-200310
main71501-60130i199906-200209
W(BENCH SEAT & SEAT BELT WARNING FOR PASSENGER SEAT)
main71501-60140i199906-200209
W(SEAT BELT WARNING FOR PASSENGER SEAT)
main71511-60110i199910
main71511-60120i199906-200011
W(BENCH SEAT)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-60030i199608-199810
W(LEATHER SEAT)
main71501-60120i199906-200312
main71511-60110i200209
main71512-60090i199906-200412
W(BENCH SEAT)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-60050i199906-200209
W(LEATHER SEAT)
main71505-60051i200209-200310
main71551-60170i199906-200209
W(BENCH SEAT)
main71551-60180i199906-200209
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71506-60050i199608-199906
W(LEATHER SEAT)
main71506-60051i200209-200310
main71551-60180i199604-199906
main71552-60130i199604-199801
W(BENCH SEAT)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-35060i200209
main71610-60170i199604-199906
W(BENCH SEAT)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-35060i200209
main71620-60130i199604-199801
W(BENCH SEAT)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71013-60230i199906-200209
W(BENCH SEAT)
main71630-35110i199604-199906
main71630-60110i199604-199906
main71630-60120i199604-199906
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71014-60210i199906-200412
W(BENCH SEAT)
main71630-35110i199604-199906
main71630-60110i199608-199910
main71630-60120i199906-200312
71750ATRAY ASSY, FRONT SEAT UNDER
main71750-60010-B0i199604-199906
MD.MOON MIST,TRIM1#
main71750-60010-C0i199910
BLACK,TRIM1#
main71750-60020-B0i199604-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71750-60030-C0i200001-200008
BLACK,TRIM4#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-60050i199604-199801
main71811-60051-B0i199906
MD.MOON MIST,TRIM1#
main71811-60051-E0i199906-200209
OAK,TRIM4#
main71811-60060-B0i199604-199801
MD.MOON MIST,TRIM1#
main71811-60061i200204-200205
ADVANTAGE EDITION(AUSTRALIA)
main71811-60061-B0i199906-200209
MD.MOON MIST,TRIM1#
main71811-60061-E0i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71811-60070-B0i199604-199712
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71811-60071-B0i199712-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71811-60071-E0i199906-200209
W(LEATHER SEAT),OAK,TRIM4#
main71811-60080-B0i199608-199712
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71811-60081-B0i199906-200310
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71811-60081-E0i200001-200310
W(LEATHER SEAT),OAK,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-60050-B0i199604-199801
MD.MOON MIST,TRIM1#
main71812-60051-B0i200209
MD.MOON MIST,TRIM1#
main71812-60051-E0i199906-200312
OAK,TRIM4#
main71812-60060-B0i199608-199801
MD.MOON MIST,TRIM1#
main71812-60061-B0i199801-199910
MD.MOON MIST,TRIM1#
main71812-60061-E0i199906-200209
OAK,TRIM4#
main71812-60070-B0i199608-199712
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71812-60071-B0i199712-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71812-60071-E0i199906-200310
W(LEATHER SEAT),OAK,TRIM4#
main71812-60080-B0i199604-199712
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71812-60081-B0i199712-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#
main71812-60081-E0i200008-200209
W(LEATHER SEAT),OAK,TRIM4#
71831DCOVER, FRONT SEAT HINGE, RH
main71831-35050i199604-199703
W(BENCH SEAT)
71832DCOVER, FRONT SEAT HINGE, LH
main71832-35050i199906-200209
W(BENCH SEAT)
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-60040-B0i200209
MD.MOON MIST,TRIM1#
main71861-60040-E0i199910-200209
OAK,TRIM4#
main71861-60050-B0i199906-200209
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71861-60050-E0i199906-200209
W(BENCH SEAT),OAK,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-60040-B0i200209
MD.MOON MIST,TRIM1#
main71862-60040-E0i199910-200209
OAK,TRIM4#
main71862-60050-B0i199906-200412
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main71862-60050-E0i199906-200209
W(BENCH SEAT),OAK,TRIM4#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-60030-B0i199906-200209
MD.MOON MIST,TRIM1#,OUTER; W(BENCH SEAT),MD.MOON MIST,TRIM1#; W(BENCH SEAT),MD.MOON MIST,TRIM1#,OUTER
main71875-60030-E0i200209-200312
W(BENCH SEAT),OAK,TRIM4#,OUTER
main71875-60040-B0i200209
MD.MOON MIST,TRIM1#,OUTER
main71875-60040-E0i199906-200209
OAK,TRIM4#,OUTER
main71875-60050-B0i199906-200209
MD.MOON MIST,TRIM1#,INNER
main71875-60050-E0i199906-200209
OAK,TRIM4#,INNER
main71875-60060-B0i199604-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#,OUTER
main71875-60060-E0i200008-200310
W(LEATHER SEAT),OAK,TRIM4#,OUTER
main71876-60020-B0i199906-200209
W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER
main71876-60020-E1i199906-200209
W(BENCH SEAT),OAK,TRIM4#,INNER
main71876-60060-B0i199604-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#,INNER
main71876-60060-E0i200008-200310
W(LEATHER SEAT),OAK,TRIM4#,INNER
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60020-B0i199906-200412
W(BENCH SEAT),MD.MOON MIST,TRIM1#,INNER
main71875-60020-E1i199906-200209
W(BENCH SEAT),OAK,TRIM4#,INNER
main71875-60070-B0i199906-200310
W(LEATHER SEAT),MD.MOON MIST,TRIM1#,INNER
main71875-60070-E0i199906-200310
W(LEATHER SEAT),OAK,TRIM4#,INNER
main71876-60030-B0i199906-200209
MD.MOON MIST,TRIM1#,OUTER; OUTER,MD.MOON MIST,TRIM1#
main71876-60030-E0i199910-200209
OAK,TRIM4#,OUTER
main71876-60040-B0i199906-200209
MD.MOON MIST,TRIM1#,OUTER
main71876-60050-B0i199906-200209
INNER,MD.MOON MIST,TRIM1#; MD.MOON MIST,TRIM1#,INNER
main71876-60050-E0i199906-200209
INNER,OAK,TRIM4#
main71876-60070-B0i199604-199906
W(LEATHER SEAT),MD.MOON MIST,TRIM1#,OUTER
main71876-60070-E0i200001-200310
W(LEATHER SEAT),OAK,TRIM4#,OUTER
71910AHEADREST ASSY, FRONT SEAT
main71910-60250-B1×2i199906-199910
MD.MOON MIST,TRIM1#
main71910-60280-B0×2i199604-199906
LEATHER,MD.MOON MIST,TRIM1#
main71910-60320-B0×2i199604-199906
MD.MOON MIST,TRIM1#
main71910-60390-B0×2i199906-199910
MD.MOON MIST,TRIM1#
main71910-60390-B2×2i200209
MD.MOON MIST,TRIM1#
main71910-60460-B0×2i199906-200310
SEAT = TYPE D-*104,MOON MIST,TRIM1#
main71910-60460-E1×2i199906-200310
SEAT = TYPE D-*104,MEDIUM OAK,TRIM40
main71910-60470-B2×2i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MOON MIST,TRIM1#
main71910-60470-E1×2i200104-200106
LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71910-60480-B2×2i199906-200209
SEAT = TYPE B-*104,MOON MIST,TRIM1#
main71910-60480-E1×2i199906-200209
SEAT = TYPE B-*104,OAK,TRIM4#
main71910-60490-B2×2i199910-200209
SEAT = TYPE A-*104,MD.MOON MIST,TRIM1#
main71910-60490-E1i200001-200011
SEAT = TYPE A-*104 & CHINA SPEC,OAK,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-13030-B2×2i199906
W(LOCK),BLUE GRAY,TRIM1#
main71930-13030-E0×2i199906-200312
W(LOCK),MD.OAK,TRIM4#
main71930-32020-B2×2i199604-199702
W(LOCK),BLUE GRAY,TRIM1#
main71930-44010-B0×2i199702-199808
W(LOCK),BLUE GRAY,TRIM1#
main71931-12040-E8×2i199910-200209
W/O(LOCK),OAK,TRIM4#
main71931-12040-P6×2i200209
W/O(LOCK),BLUE GRAY,TRIM1#
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
main72010-60090i199608-199906
W(POWER SEAT);CHINA SPEC
main72010-60091i199906-200310
W(POWER SEAT & SEAT HEATER)
main72010-60120i199604-199906
W(POWER SEAT)
main72010-60121i199906-200209
W(POWER SEAT)
main72010-60130i199608-199906
W(POWER SEAT)
main72010-60131i199906-200209
W(POWER SEAT)
main72011-60010i199604-199801
main72011-60011i199801-199906
main72011-60012i199910-200209
main72011-60020i199604-199801
main72011-60021i199801-199906
main72011-60022i199906-200209
main72011-60030i199608-199801
main72011-60031i199808-199910
main72011-60032i199906
main72011-60040i199604-199801
W(BENCH SEAT)
main72011-60041i199801-199906
W(BENCH SEAT)
main72011-60042i199906-200209
W(BENCH SEAT)
main72011-60090i199906
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
main72012-60010i199604-199801
main72012-60011i199801-199906
main72012-60012i199906
main72012-60020i199608-199801
main72012-60021i199801-199906
main72012-60022i199906-200209
main72012-60030i199604-199801
W(WALK-IN SEAT)
main72012-60031i199801-199906
W(WALK-IN SEAT)
main72012-60032i199906-200209
main72012-60040i199604-199801
W(BENCH SEAT)
main72012-60041i199801-199906
W(BENCH SEAT)
main72012-60042i199906-200412
W(BENCH SEAT)
main72012-60100i199910-200209
main72020-60120i199608-199906
W(POWER SEAT);CHINA SPEC
main72020-60121i200001-200209
W(POWER SEAT)
main72020-60130i199604-199906
W(POWER SEAT)
main72020-60131i200008-200209
NEW ZEALAND SPEC
main72020-60140i199608-199906
W(POWER SEAT)
main72020-60141i199906-200209
W(POWER SEAT)
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-60050-B0i199609-199910
W(BENCH SEAT),MD.MOON MIST,TRIM1#
main72123-60050-E0i199906-200209
W(BENCH SEAT),OAK,TRIM4#
main72123-60070-B0i199903-200209
MD.MOON MIST,TRIM1#
main72123-60070-E0i199910-200209
OAK,TRIM4#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-60030-B0i199604-199609
MD.MOON MIST,TRIM1#
main72124-60040-B0i199906
MD.MOON MIST,TRIM1#
main72124-60040-E0i199906-200312
OAK,TRIM4#
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-60050-B0i199604-199801
MD.MOON MIST,TRIM1#
main72125-60050-E0i199906-200209
OAK,TRIM4#
main72125-60070×2i199906
W(POWER SEAT)
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-60010-B0i199906
MD.MOON MIST,TRIM1#
main72127-60010-E0i199906-200312
OAK,TRIM4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72127-60010-B0i199906
MD.MOON MIST,TRIM1#
main72127-60010-E0i199910-200209
OAK,TRIM4#
72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-60030×4i199604-199801
W(POWER SEAT)
main72129-60040×4i199906-200209
W(BENCH SEAT)
72137COVER, SEAT TRACK, OUTER RH
main72137-60030-B0i199604-200209
MD.MOON MIST,TRIM1#
main72137-60030-E0i199906-200312
OAK,TRIM4#
main72137-60070i199604-199906
W(POWER SEAT)
main72137-60070-B0i199906-200310
W(POWER SEAT),MD. MOON MIST,TRIM1#
main72137-60070-E0i200001-200310
W(POWER SEAT),OAK,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
main72137-60030-B0i199906
MD.MOON MIST,TRIM1#
main72137-60030-E0i199910-200209
OAK,TRIM4#
main72138-60050i199604-199906
W(POWER SEAT)
main72138-60050-B0i199906-200310
W(POWER SEAT),MD. MOON MIST,TRIM1#
main72138-60050-E0i200008-200310
W(POWER SEAT),OAK,TRIM4#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-60050-B0i199906
MD.MOON MIST,TRIM1#
main72157-60050-E0i199910-200209
OAK,TRIM4#
main72157-60080i199604-199906
W(POWER SEAT)
main72157-60080-B0i199906-200310
W(POWER SEAT),MD. MOON MIST,TRIM1#
main72157-60080-E0i200008-200310
W(POWER SEAT),OAK,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-60020-B0i199604-200209
MD.MOON MIST,TRIM1#
main72158-60020-E0i199906-200312
OAK,TRIM4#
main72158-60050i199604-199906
W(POWER SEAT)
main72158-60050-B0i199906-200310
W(POWER SEAT),MD. MOON MIST,TRIM1#
main72158-60050-E0i200001-200310
W(POWER SEAT),OAK,TRIM4#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-60030i200104-200106
LIMITED EDITION(AUSTRALIA)
main72750-60040i200008-200209
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-60020i199608-199910
main72760-60030i199608-199906
W(POWER SEAT)
72797SPACER, LUMBAR SUPPORT
main72797-50010i200104-200106
LIMITED EDITION(AUSTRALIA)
8202WIRING & CLAMP
→ Go to FIG 82-02
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9011910825
main90119-10825
9016740044
main90167-40044
9016840043
main90168-40043
9046816019
main90468-16019
9046818071
main90468-18071
9151261018
main91512-61018
9161560825
main91615-60825
9165160614
main91651-60614
9354054012
main93540-54012
9356054012
main93560-54012
9356854516
main93568-54516

57 parts on this diagram · 18 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
