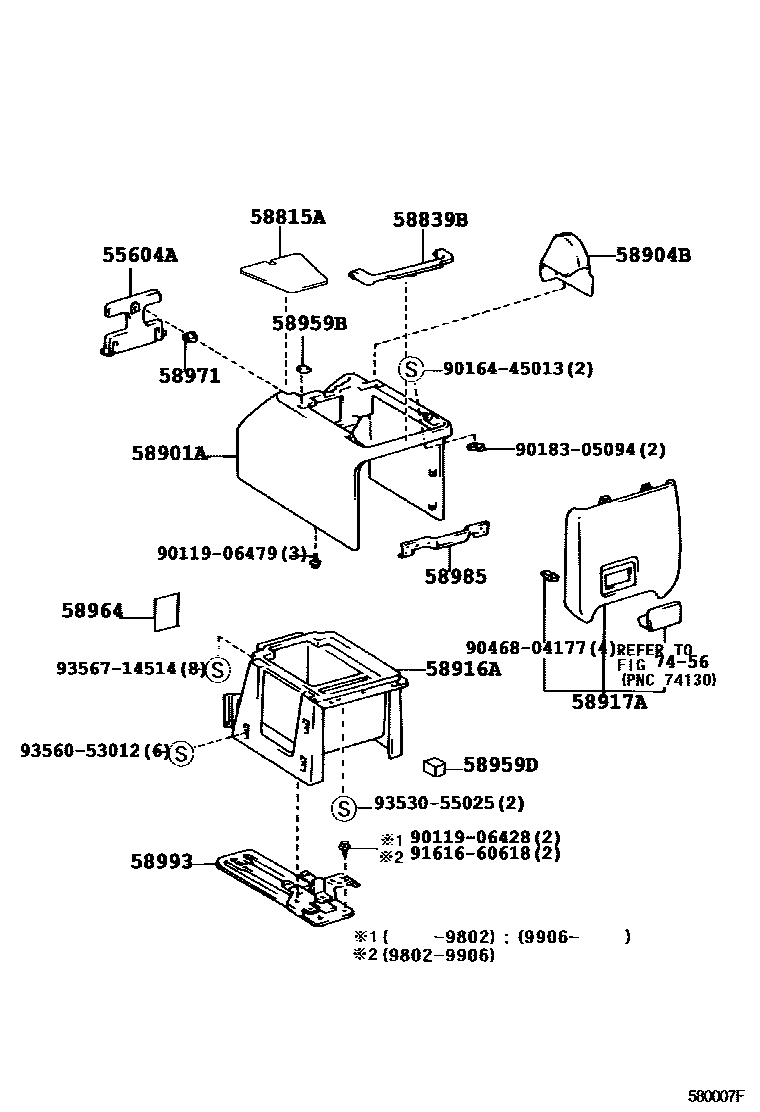

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60010-B0iLJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD199906-200008

MD.MOON MIST,TRIM1#

main55604-60010-E0iKZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199906-200008

OAK,TRIM4#

main55604-60020-B0iLJ90..RHD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA)199906-200812

MD.MOON MIST,TRIM1#

main55604-60020-E0iRZJ95..ARL199910-200008

OAK,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-60010iRZJ90,VZJ95..CO199906-199910

main58815-60010-B0iLJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9#199604-199807

MD.MOON MIST,TRIM1#

main58815-60011iLJ95,RZJ95..LHD..GX;KZJ9#,LJ90,RZJ90,VZJ9#..LHD199906-200008

main58815-60070iRZJ95..ARL200008-200209

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58839-60010-B0iLJ90,RZJ90..STD199604-199906

MD.MOON MIST,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-60060-B0iLJ90,VZJ95..RHD;LJ95,RZJ95..RHD..GX199604-199906

MD.MOON MIST,TRIM1#

main58911-60070-B0iRZJ90..CBR;LJ95,RZJ90..LHD..GX;RZJ95..LHD..GX..CBR;KZJ9#,LJ90,VZJ9#..LHD199604-199910

MD.MOON MIST,TRIM1#

main58911-60070-E0iKZJ9#,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199906-200008

OAK,TRIM4#

main58911-60120-B0iRZJ95..ARL199910-200209

MD.MOON MIST,TRIM1#

main58911-60120-E0iRZJ95..ARL199910-200209

OAK,TRIM4#

main58911-60130-B0iLJ95,RZJ95..LHD..GX;KZJ95,LJ90,RZJ90,VZJ9#..LHD200008-200812

MD.MOON MIST,TRIM1#

main58911-60130-E0iKZJ95,LJ95,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)200008-200312

OAK,TRIM4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-60010iLJ90,VZJ95..RHD;LJ95,RZJ95..RHD..GX199604-199801

main58904-60020iLJ95,RZJ9#,VZJ9#..LHD..(GX,VX)200008

58916AINSERT, CONSOLE BOX, REAR

main58916-60040-B0iRZJ95..MTM..GCC;VZJ95..ATM..GCC200008-200209

MD.MOON MIST,TRIM1#

main58916-60040-E0iRZJ95..ARL199910-200209

OAK,TRIM4#

main58916-60050-B0iLJ95,RZJ90,VZJ95..LHD..(GX,VX)..(GCC,GEN)200008-200310

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

main58916-60050-E0iLJ95,RZJ90,VZJ95..LHD..(GX,VX)..(GCC,GEN)200008-200310

W(DUAL AIR CONDITIONER),OAK,TRIM4#

58917ACOVER, CONSOLE BOX, REAR

main58917-60020-B0iVZJ95..CO;RZJ9#..ARL,CO199906-200209

TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main58917-60020-E0iRZJ95..ARL199910-200209

TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#

main58917-60030-B0iKZJ95..ATM..ARL200010-200209

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main58917-60030-E0iKZJ95..ATM..ARL200010-200209

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

main58917-60040-B0iVZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN)199906-200312

TYPE C:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

sub55519-60250

main58917-60040-E0iRZJ95..ARL199910-200209

TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#

sub55519-60250

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2iRZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL)199801-199906

58959DCUSHION, REAR CONSOLE BOX

main58959-60010×4iVZJ95..CO;RZJ9#..ARL,CO199906-200008

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-60010iLJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9#199608-199801

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-26010iLJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95199604-199608

main58971-60010iLJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9#199608-199801

58985RETAINER, CONSOLE BOX

main58985-60050iRZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL)199801-199906

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58902-60010iRZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL)199801-199906

main58902-60040iLJ95,RZJ95..LHD..GX;KZJ95,LJ90,RZJ90,VZJ9#..LHD200008

main58902-60060iRZJ95..ARL199910-200008

main58902-60061iRZJ95..ARL200008-200209

7456

9011906428

main90119-06428

9011906479

main90119-06479

9016445013

main90164-45013

9018305094

main90183-05094

9046804177

main90468-04177

9161660618

main91616-60618

9353055025

main93530-55025

9356053012

main93560-53012

9356714514

main93567-14514

23 parts on this diagram · 4 diagrams in section
