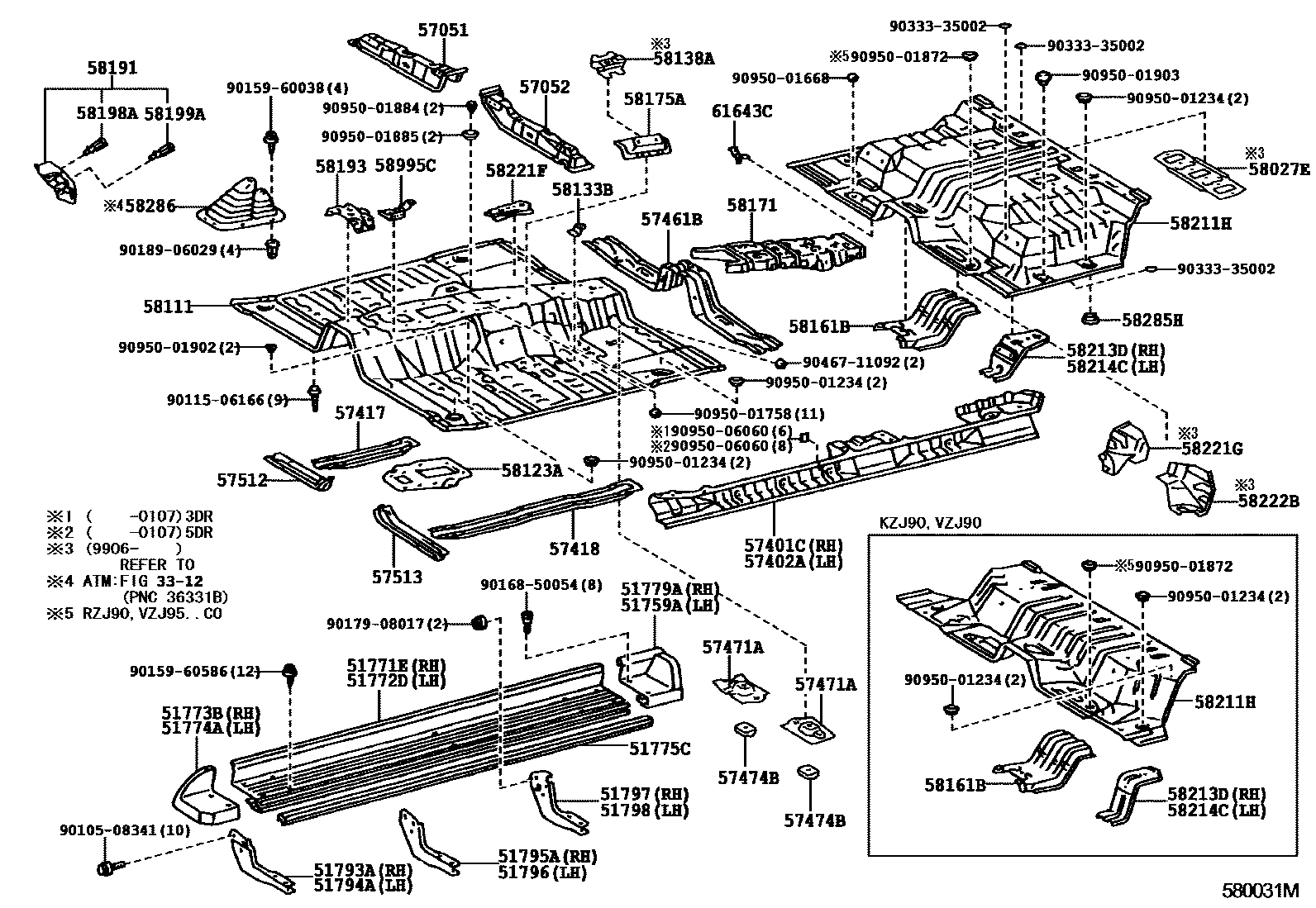

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-60060iRZJ95..CBR;RZJ95,VZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ90199801-199808

51771EPLATE, STEP, RH

main51771-6A010iKZJ90,LJ90,RZJ90,VZJ90199604-199707

main51771-6A020iKZJ95,LJ95,RZJ95,VZJ95199604-199707

main51771-6A030iKZJ90,LJ90,RZJ90,VZJ90199707-199810

main51771-6A031iKZJ90,LJ90,RZJ90,VZJ90199910

main51771-6A040iKZJ95,LJ95,RZJ95,VZJ95199707-199810

main51771-6A041iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

51772DPLATE, STEP, LH

main51772-60030iKZJ90,LJ90,RZJ90,VZJ90199604-199707

main51772-60040iKZJ95,LJ95,RZJ95,VZJ95199604-199707

main51772-60050iKZJ90,LJ90,RZJ90,VZJ90199707-199810

main51772-60051iKZJ90,LJ90,RZJ90,VZJ90199910

main51772-60060iKZJ95,LJ95,RZJ95,VZJ95199707-199810

main51772-60061iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

51775CMOULDING, SIDE DOOR STEP PLATE, NO.1

main51775-60020×2iKZJ95,LJ95,RZJ95,VZJ95199604-199810

main51775-60021×2iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

main51775-60030×2iKZJ90,LJ90,RZJ90,VZJ90199604-199810

main51775-60031×2iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199906-199910

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

51793ABRACKET, SIDE STEP, NO.1 RH

main51793-60070iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199801

W(FRONT FENDER MOULDING)

main51793-60080iVZJ95..CO;RZJ9#..ARL,CO199906-200209

51794ABRACKET, SIDE STEP, NO.1 LH

main51794-60030iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199801

W(FRONT FENDER MOULDING)

main51794-60040iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

51795ABRACKET, SIDE STEP, NO.2 RH

main51795-60020iVZJ95..ARL;KZJ9#,LJ95,RZJ9#,VZJ90..GX,VX199801-199808

W(FRONT FENDER MOULDING)

main51795-60030iVZJ95..CO;RZJ9#..ARL,CO199906-200209

51796BRACKET, SIDE STEP, NO.2 LH

main51796-60010iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-199910

W(FRONT FENDER MOULDING)

main51796-60020iVZJ95..ARL,GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,CO,GCC,GEN199910-200209

51797BRACKET, SIDE STEP, NO.3 RH

main51797-60040iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-199910

W(FRONT FENDER MOULDING)

main51797-60050iVZJ95..CO;RZJ9#..ARL,CO199906-200209

51798BRACKET, SIDE STEP, NO.3 LH

main51798-60010iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199801

W(FRONT FENDER MOULDING)

main51798-60020iRZJ9#200209

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60060iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

main57401-60070iKZJ90,LJ90,RZJ90,VZJ90199906

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60070iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

main57402-60080iKZJ90,LJ90,RZJ90,VZJ90199906

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-60020iLJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9#..ARL,GCC,GEN199906-199910

main57407-60040iRZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-199801

W(FRONT BENCH SEAT)

57471AREINFORCE, SEAT BELT ANCHOR TO FLOOR MEMBER

main57471-60010iKZJ95,LJ9#,RZJ9#..LHD..(CBR,DSL,TD)199604-199906

main57471-60020iLJ9#,RZJ95..RHD..GEN199604-199801

57474BPLATE, BELT ANCHOR

main57474-90K00iRZJ90..STD;KZJ95,LJ9#,RZJ95..MTM..(GCC,GEN)199906-200209

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

58027EREINFORCE SUB-ASSY, SEAT BELT ANCHOR ,RH

main58027-60060iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)199906

58111PAN, FRONT FLOOR

main58111-60570iRZJ9#..CBR199801-199906

W(FRONT BENCH SEAT)

main58111-60580iRZJ95..LHD..MTM199906-200011

W(FRONT BENCH SEAT & REAR HEATER)

main58111-60590iLJ9#199604-199906

W(FRONT BENCH SEAT)

main58111-60600iLJ9#..LHD199604-199906

W(FRONT BENCH SEAT & REAR HEATER)

main58111-60610iKZJ95..GEN199906-200209

W(FRONT BENCH SEAT & REAR HEATER)

main58111-60620iVZJ9#..MTM199604-199910

main58111-60630iVZJ95..MTM..ARL199906-200209

W(REAR HEATER)

main58111-60640iRZJ90200209

main58111-60650iRZJ90;RZJ95..GX..(GCC,GEN)199604-199801

W(REAR HEATER)

main58111-60660iKZJ9#199604-199906

main58111-60670iKZJ9#199604-199906

W(REAR HEATER)

main58111-60680iLJ90;LJ95..GX199604-199906

main58111-60690iLJ95..GX199906-200209

W(REAR HEATER)

main58111-60700iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

main58111-60750iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199906-200310

W(REAR HEATER)

main58111-60760iKZJ95..GEN199906-200209

W(FRONT BENCH SEAT)

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60030iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199906-199910

main58123-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199801-200209

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58138ABRACKET, FRONT FLOOR HOUSING, REAR RH

main58138-60010iKZJ95,VZJ95..ATM..ARL199906-200209

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

main58161-60011iRZJ95..ARL199910-200209

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-60010iLJ9#,RZJ95,VZJ95..RHD; RZJ95..LHD..GX..GEN199604-199801

RH

main58175-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN); RZJ90,VZJ95..CO199906-199910

58191FOOTREST, FRONT FLOOR

main58190-60020iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

main58190-60030iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

main58193-35030iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

58198ACLIP, FOOTREST, NO.1

main58198-60010iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

main58198-60030iKZJ95,LJ9#,RZJ95,VZJ95..RHD199906

58199ACLIP, FOOTREST, NO.2

main58198-60020iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

main58198-60030iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58211HPAN, CENTER FLOOR

main58211-60030iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199701

W(WALK-IN SEAT)

main58211-60031iVZJ95..CO199808-199910

main58211-60032iRZJ95..ARL; RZJ95..ARL,MA;KZJ95..TDEFI..(GEN,MA)199910-200209

W(6:4 SPRIT REAR SEAT)

main58211-60040iKZJ95,LJ95,RZJ95,VZJ95199604-199701

main58211-60041iRZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..ARL,GCC,GEN199801-199906

main58211-60042iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199906-199910

main58211-60050iKZJ90,LJ90,RZJ90,VZJ90199604-199906

main58211-60051iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199906-199910

main58211-60060iLJ90,RZJ90..STD199604-199906

W(OPPOSING TYPE SEAT)

main58211-60061iLJ90,RZJ90..STD199906-200209

W(OPPOSING TYPE SEAT)

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-60010iKZJ95,LJ95,RZJ95,VZJ95199604-199701

main58213-60011iKZJ95,LJ95,RZJ95,VZJ95199701-199801

main58213-60020iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

58214CREINFORCEMENT, CENTER FLOOR PANEL, LH

main58213-60010iKZJ95,LJ95,RZJ95,VZJ95199604-199701

main58213-60011iKZJ95,LJ95,RZJ95,VZJ95199701-199801

main58213-60020iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199906-199910

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-35010iVZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ95,RZJ9#..GX..(ARL,GCC,GEN)199906

58221GREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-60011iRZJ95..ARL199910-200209

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-60011iRZJ95..ARL199910-200209

58285HCOVER, CENTER FLOOR HOLE

main58285-60080×2iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199606-199910

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-60070iVZJ95..MTM..ARL199604-199906

main58280-60080iVZJ9#..MTM..GCC199906-199910

main58280-60090iKZJ95,LJ9#,RZJ95..RHD..MTM199906

main58280-60100iKZJ9#,LJ9#,RZJ9#..LHD..MTM..(GCC,GEN)199906-199910

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-35020iVZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199604-199906

61643CPATCH, QUARTER WHEEL HOUSE, NO.1

main61643-24010iKZJ95,LJ95,RZJ95,VZJ95199604-199801

9010508341

main90105-08341

9011506166

main90115-06166

9015960038

main90159-60038

9015960586

main90159-60586

9016850054

main90168-50054

9017908017

main90179-08017

9018906029

main90189-06029

9033335002

main90333-35002

9046711092

main90467-11092

9095001234

main90950-01234

9095001668

main90950-01668

9095001758

main90950-01758

9095001872

main90950-01872

9095001884

main90950-01884

9095001885

main90950-01885

9095001902

main90950-01902

9095001903

main90950-01903

9095006060

main90950-06060

65 parts on this diagram · 1 diagram in section
