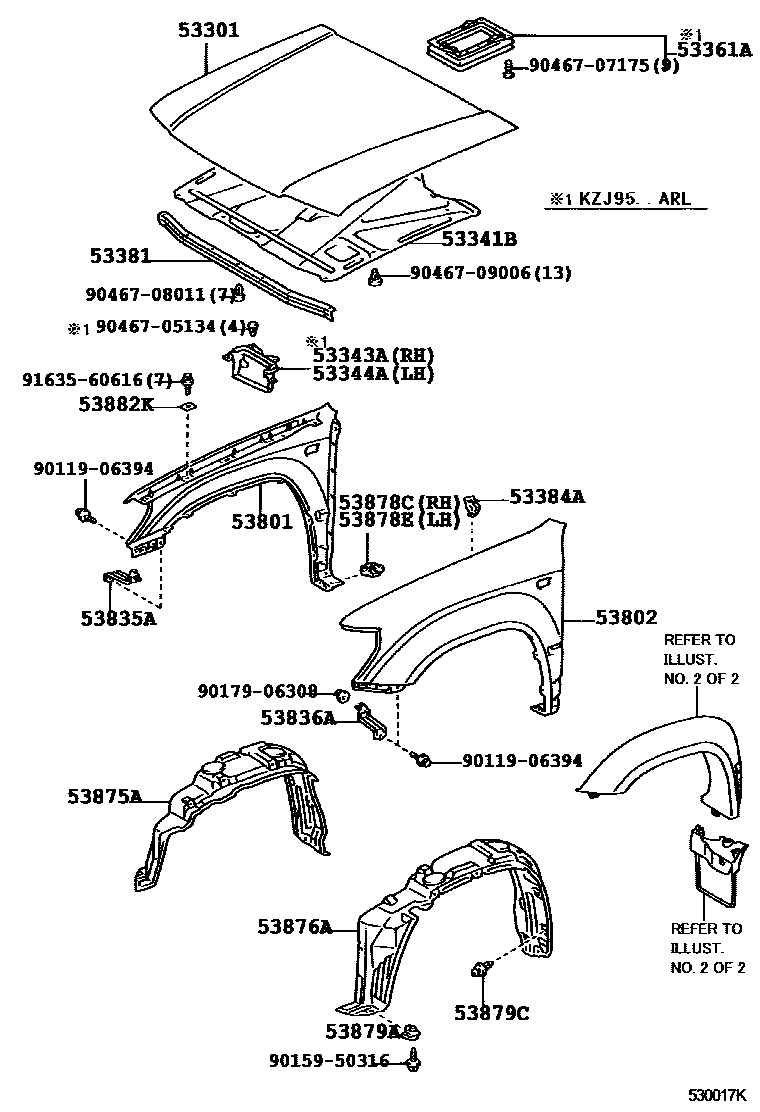

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-60290iVZJ95..CO;RZJ9#..ARL,CO199906-200209

main53301-60300iKZJ95..ARL199909-200209

main53301-60310iRZJ95,VZJ9#..GCC199906-200209

W(HOOD EMBLEM)

53341BINSULATOR, HOOD

main53341-60160iKZJ95..ARL199909-200004

main53341-60161iKZJ95..ARL200004-200209

main53341-60170iRZJ95,VZJ95;KZJ9#,LJ9#,RZJ90,VZJ90..CO,GCC,GEN,MA199906-200004

main53341-60171iRZJ95..ARL200004-200209

53343ABRACKET, AIR DEFLECTOR, NO.1 RH

main53343-60010iKZJ95..ARL199909-200209

53344ABRACKET, AIR DEFLECTOR, NO.1 LH

main53344-60010iKZJ95..ARL199909-200209

53361AWEATHERSTRIP, HOOD

main53361-60010iKZJ95..ARL199909-200003

main53361-60020iKZJ95..ARL200003-200209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53384ABUMPER, FENDER TO HOOD

main53384-60040×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53801FENDER SUB-ASSY, FRONT RH

main53801-60570iKZJ95,LJ9#,RZJ95,VZJ95..RHD..(ARL,GEN)199906-200412

W(ANTENNA)

main53801-60580iLJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)199604-200209

W(ANTENNA & FRONT FENDER MOULDING)

main53801-60800iRZJ95..LHD;VZJ95..MTM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90,VZJ90..CO,GCC,GEN199906

main53801-60810iRZJ95..GX..CBR;RZJ90..EFI..GEN;KZJ9#,LJ95,VZJ9#..(GX,VX)..(CO,GCC,GEN)199801-199906

W(FRONT FENDER MOULDING)

53802FENDER SUB-ASSY, FRONT LH

main53802-60890iRZJ95..ARL;RZJ90..GX..GEN;RZJ9#..CBR..GEN;KZJ9#,LJ9#,VZJ95..(DSL,EFI,TD)..(ARL,GEN)199801-200209

main53802-6A010iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GEN)199604-200209

W(FRONT FENDER MOULDING)

main53802-6A020iVZJ95..ATM..GCC199906-200209

W(ANTENNA)

main53802-6A030iRZJ9#..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..LHD..(GX,VX)199801-199906

W(ANTENNA & FRONT FENDER MOULDING)

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53875ALINER, FRONT FENDER, RH

main53875-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199612

main53875-60011iRZJ90,VZJ95..CO199910

main53875-60012iRZJ95..ARL199910-200209

53876ALINER, FRONT FENDER, LH

main53876-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199612

main53876-60011iRZJ90,VZJ95..CO199910

main53876-60012iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

53878CSPACER, FRONT FENDER

main53878-35020iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

53878ESPACER, FRONT FENDER

main53878-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53879ARETAINER, FRONT FENDER LINER

main53879-16010×2iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

53879CRETAINER, FRONT FENDER LINER

main53879-60010×20iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53882KSEAL, FRONT FENDER

main53882-16030×8iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

9011906394

main90119-06394

9015950316

main90159-50316

9017906308

main90179-06308

9046705134

main90467-05134

9046707175

main90467-07175

9046708011

main90467-08011

9046709006

main90467-09006

9163560616

main91635-60616

26 parts on this diagram · 2 diagrams in section
