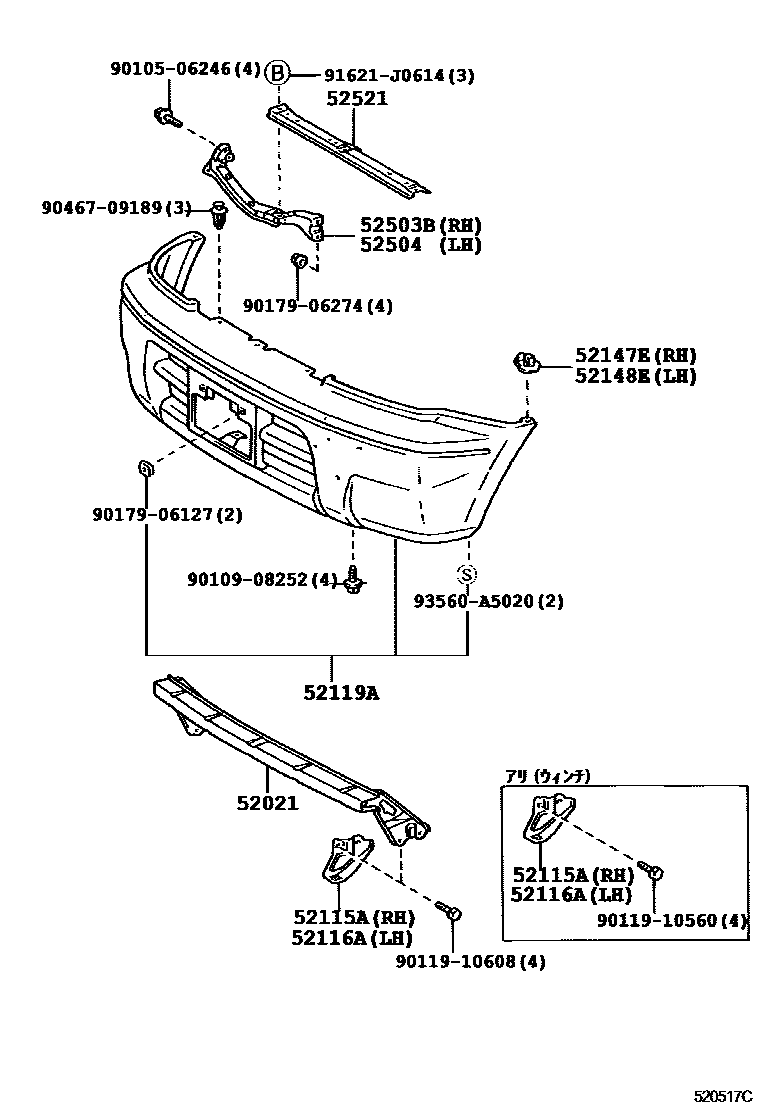

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60050iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199801

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60090iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199801

52119ACOVER, FRONT BUMPER

main52104-60900iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA)199906-200209

W(OVER FENDER)

main52104-60901iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN)199906-200209

W(OVER FENDER & WINCH)

main52104-60902iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN,MA)199906-200312

W(OVER FENDER & FRONT FOGLAMP)

main52104-60906iVZJ95..ATM..GCC199906-200001

W(OVER FENDER & WINCH & FRONT BUMPER GUARD)

main52119-60010iRZJ90,VZJ95..CO199906-199910

main52119-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199801

W(WINCH)

main52119-60070iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199801

W(WINCH & FRONT BUMPER GUARD)

main52119-60350iRZJ95..MTM..GCC;VZJ95..ATM..GCC199906-200209

main52119-60360iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199906-200209

W(WINCH)

main52119-60380iVZJ95..ATM..GCC199906-200209

W(FRONT FOG LAMP)

main52119-60440iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199906-200209

W(WINCH & BUMPER GUARD)

main52119-60900iVZJ95..CO199906-199910

W(FRONT FENDER MOULDING)

main52119-60902iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN)199604-199906

W(FRONT FENDER MOULDING & WINCH)

main52119-60903iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN)199604-199801

W(FRONT FENDER MOULDING & FRONT BUMPER GUARD & WINCH)

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iVZJ95..ATM..GCC; VZJ95..CO;RZJ9#..ARL,CO199906-200209

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iVZJ95..ATM..GCC; VZJ95..CO;RZJ9#..ARL,CO199906-200209

52503BRETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH

main52503-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#199808-199906

main52503-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

52504RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 LH

main52504-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199808-199906

main52504-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#199808-199906

main52521-60040iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

9010506246

main90105-06246

9010908252

main90109-08252

9011910560

main90119-10560

9011910608

main90119-10608

9017906127

main90179-06127

9017906274

main90179-06274

9046709189

main90467-09189

91621J0614

main91621-J0614

93560A5020

main93560-A5020

18 parts on this diagram · 3 diagrams in section
