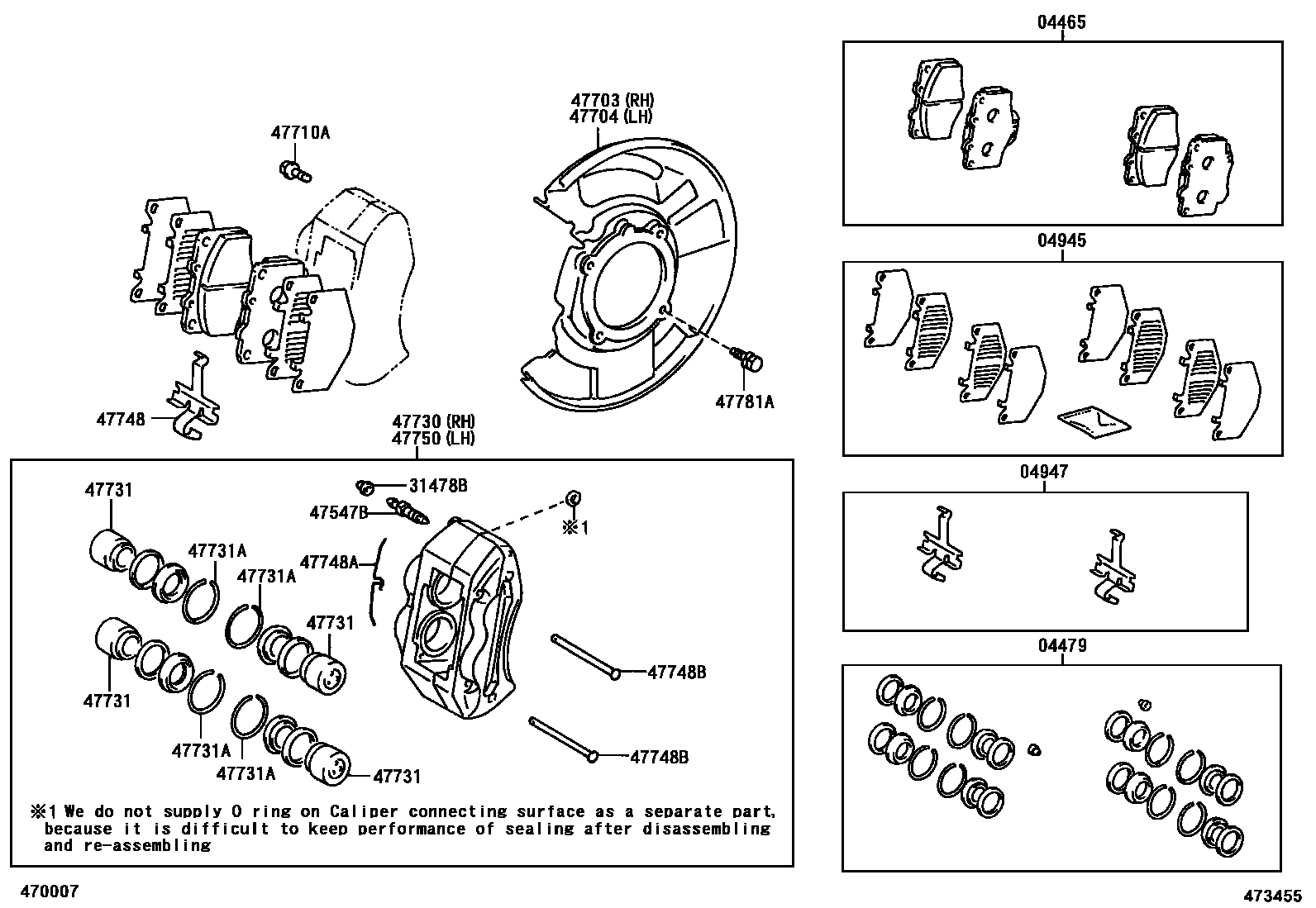

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199604-199906

MARK SUMITOMO PS534

main04465-35230iRZJ90,VZJ95..CO199910-200008

MARK AK PA533

main04465-35240iRZJ90,VZJ95..CO200008

MARK AK PA533

main04465-35280iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

MARK SUMITOMO PS534

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60080iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-35100iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199703

main47703-35101iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199703-200209

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-35100iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199703

main47704-35101iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199703-200209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×2iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200412

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35120iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47731PISTON, FRONT DISC BRAKE

main47731-35040×8iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50003×8iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60030×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06014×4iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35120iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08571×8iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

17 parts on this diagram · 1 diagram in section
