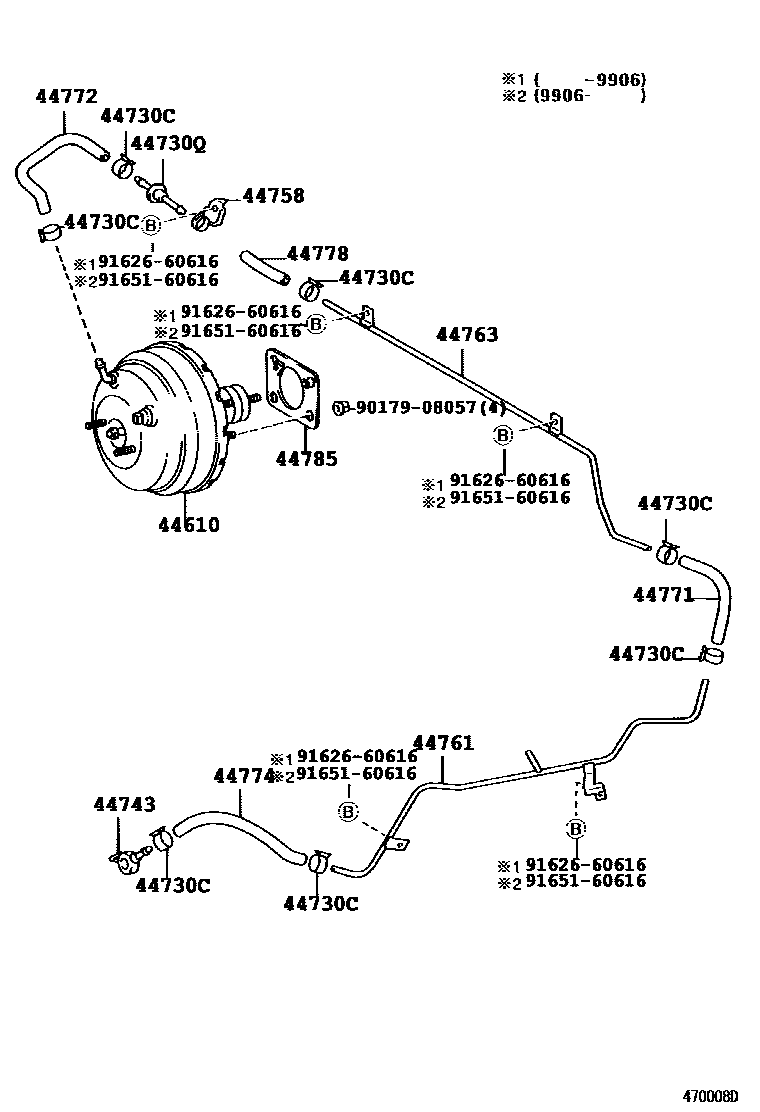

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1W(ACTIVE TRC OR VSC)

44610BOOSTER ASSY, BRAKE

main44610-60870iKZJ9#199604-199906

main44610-60880iRZJ95,VZJ95..RHD199604-199906

main44610-60890iLJ9#199604-199906

main44610-6A010iRZJ90,VZJ95..CO200209

main44610-6A040iRZJ95,VZJ95..GCC; RZJ95..GCC200209

W(ABS)

main44610-6A080iRZJ95,VZJ95..RHD..(GX,VX)199906-200209

main44610-6A100iLJ9#;KZJ95..RHD199906-200209

main44610-6A120iKZJ9#..GEN199906-200209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30030iRZJ9#..LHD199604-199605

main44730-60060iRZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)199605-199910

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×6iLJ9#..LHD; LJ9#..RHD;KZJ9#..GEN; VZJ95..ARL199906-200209

main96133-41500×2iRZJ9#,VZJ9#..LHD199906

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iKZJ9#..GEN199906-200008

44743UNION(FOR VACUUM PUMP)

main90404-51237iVZJ9#199906

main90404-51319iRZJ9#199906

main90405-09136iLJ9#199906-200209

main90405-09175iKZJ9#199906-200209

44758BRACKET, VACUUM CHECK VALVE

main44758-35070iRZJ95..RHD..CBR;RZJ95,VZJ95..RHD..(GX,VX)..EFI..(ARL,GEN)199604-200209

main44758-35120iRZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)199604-199910

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-35140iKZJ9#199604-199906

main44761-60020iKZJ95..RHD199909-200209

44763TUBE, BOOSTER VACUUM

main44763-35030iRZJ95..RHD..STD199906-200412

main44763-35040iKZJ95..MA199910-200009

main44763-35050iKZJ95..ARL199909-200209

main44763-60060iLJ9#..LHD199906-200209

44771HOSE, VACUUM TUBE CONNECTOR

main44771-35190iKZJ95..RHD199909-200209

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-35320iRZJ95..RHD..CBR;RZJ95,VZJ95..RHD..(GX,VX)..EFI..(ARL,GEN)199604-200209

main44772-35330iKZJ9#199604-199906

main44772-60130iKZJ95..GEN200008-200209

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35050iVZJ95..ARL199906-200209

main44774-35060iRZJ95..RHD..STD199906-200412

main44774-60170iRZJ95..RHD..CBR199604-199906

main44774-60200iLJ9#199604-199906

main44774-60230iKZJ95200008-200209

main95447-09220iKZJ9#199906-200008

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-35040iKZJ9#..GEN199906-200008

main44778-60140iLJ9#199906-200209

main44778-60170iKZJ95..GEN200008-200209

main95446-09100iRZJ95..RHD..CBR;RZJ95,VZJ95..RHD..(GX,VX)..EFI..(ARL,GEN)199604-200209

44785GASKET, BRAKE BOOSTER

main44785-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

9017908057

main90179-08057

9162660616

main91626-60616

9165160616

main91651-60616

16 parts on this diagram · 9 diagrams in section
