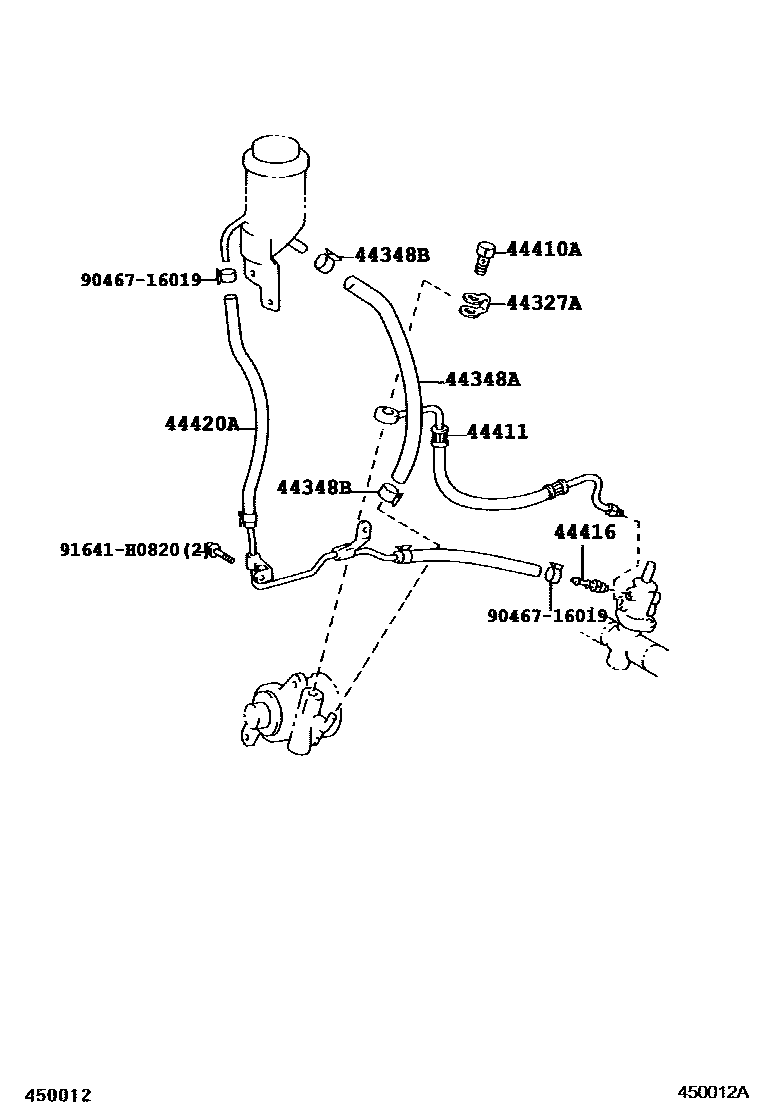

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iKZJ9#,LJ9#199604-199906

main44327-26020iRZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main44327-30040iRZJ9#,VZJ95200507

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35180iKZJ9#199604-199906

main44348-60200iLJ9#..RHD199906-200209

main44348-60210iLJ9#..LHD199604-199906

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21005×2iKZJ9#,LJ9#199604-199906

44410TUBE ASSY, PRESSURE FEED

main44410-35400iVZJ95..CO199906-199910

main44410-35410iKZJ95..TDEFI199909-200008

main44410-35420iVZJ95..ARL199604-199906

main44410-35430iRZJ95..ARL,MA199910-200209

main44410-35570iVZJ95..CO199906

main44410-60390iRZJ95..RHD..CBR199604-199906

main44410-60400iLJ9#..RHD199906-200209

main44410-60410iRZJ95..RHD..STD199906-200412

main44410-60420iVZJ95..ARL199906-200209

main44410-60530iKZJ95..RHD200008-200209

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iRZJ95..LHD..STD;RZJ95..ATM..GCC;RZJ90,VZJ9#..MTM..(GCC,GEN);RZJ95,VZJ95..(GX,VX)..(ARL,GEN,MA)199906-200209

main96341-41603iKZJ9#,LJ9#199604-199906

44411HOSE, PRESSURE FEED

main44411-35440iRZJ90..GX199604-199910

main44411-35450iKZJ9#199604-199906

main44411-35590iKZJ95..GEN200008-200209

main44411-60500iRZJ9#..LHD..CBR199604-199906

main44411-60510iLJ9#..LHD199906-200209

main44411-60600iRZJ90..STD;RZJ95..LHD199906-200312

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-42020iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

44420ATUBE ASSY, RETURN

main44420-35150iRZJ9#..LHD199910

main44420-35160iKZJ9#..GEN199906-200209

main44420-60310iRZJ9#..LHD..CBR199604-199906

main44420-60320iLJ9#..LHD199604-199906

9046716019

main90467-16019

91641H0820

main91641-H0820

10 parts on this diagram · 11 diagrams in section
