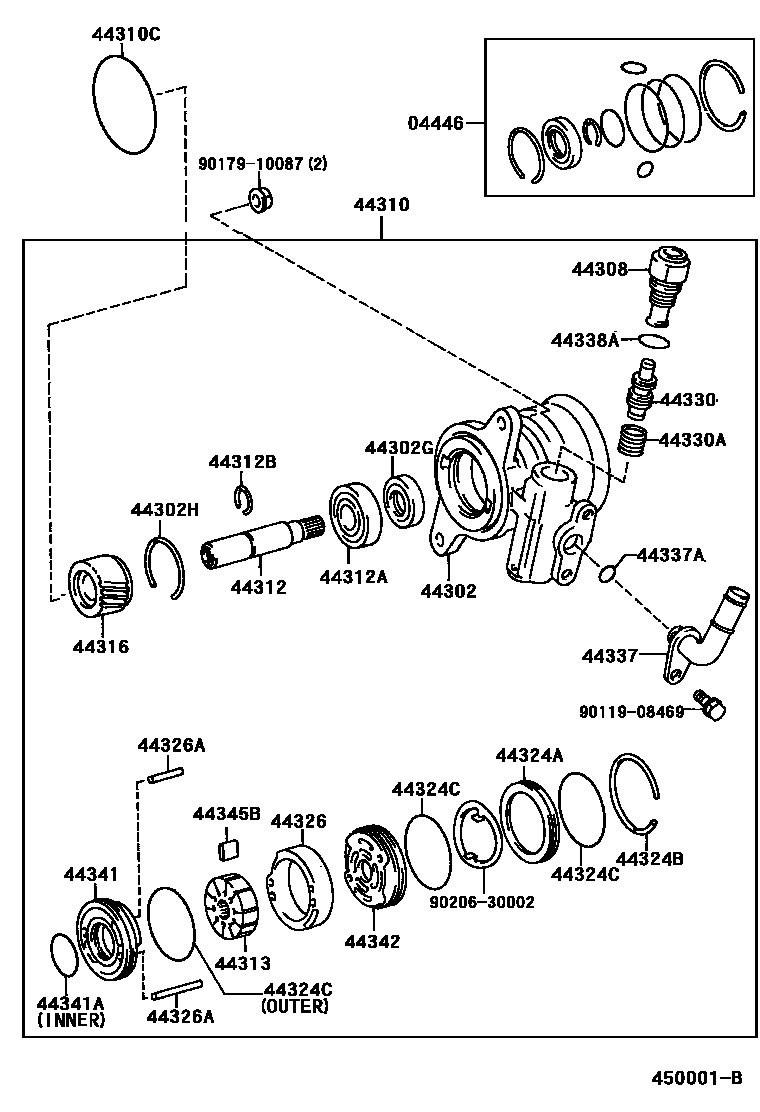

VANE PUMP & RESERVOIR (POWER STEERING)

Parts diagram
04446GASKET KIT, POWER STEERING PUMP
main04446-26040i199604-199906
sub04446-26050
main04446-27020i199604-199906
main04446-30120i199906-200501
main04446-34010i199604-199910
main04446-53030i200209
main04446-60210i200501
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
main44302-26020i199604-199906
main44302-30110i199906-200209
main44302-34010i199604-200209
main44302-34020i199906-200209
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
main90311-17004i199604-199906
main90311-17007i199906-200501
main90311-17011i200501
main90311-18012i200501
main90311-18015i199906-200412
main90316-17004i199906-200209
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
main90520-38016i199906-200209
main90521-51003i199604-199906
44308UNION SUB-ASSY, PRESSURE PORT
main44308-35010i199604-199906
main44308-60060i199604-200209
main44308-60070i199906-200008
44310PUMP ASSY, VANE
main44310-35500i199604-199906
44310CRING, O(FOR VANE PUMP)
main90301-60002i199604-199906
44312SHAFT, VANE PUMP
main44312-26020i199906
main44312-28010i199906-200209
main44312-32020i199604-199910
main44312-60020i199906-200209
44312ABEARING(FOR VANE PUMP SHAFT)
main90363-17008i199604-200209
main90363-17011i199604-199906
main90363-17013i199906
main90363-17016i199906-200209
main90363-17017i199906-200209
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
main90520-10003i199604-199910
main90520-15005i199604-199906
44313ROTOR, VANE PUMP
main44313-22040i199906-200209
NO MARK
main44313-22050i199604-199906
MARK 1
main44313-22060i199604-199906
MARK 2
main44313-22070i199906-200209
MARK 3
main44313-22080i199604-199906
MARK 4
main44313-26060i199906-200008
NO MARK
main44313-26070i199906-200209
MARK 1
main44313-26080i199906
MARK 2
main44313-26090i199906-200209
MARK 3
main44313-26100i199906-200310
MARK 4
44316GEAR, VANE PUMP
main44316-60030i199604-199906
44324AHOUSING, PUMP, REAR
main44324-32031i199604-199711
main44324-34010i199906-200209
main44324-34020i199906-200310
main44324-60040i199906-200008
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
main90521-62002i199604-199906
44324CRING, O(FOR PUMP HOUSING REAR)
main90301-18007i199906-200310
main90301-53006×3i199604-199906
sub90301-53007
44326RING, CAM(FOR VANE PUMP)
main44325-12010i199604-199906
NO MARK
main44325-12020i199604-199906
MARK 1
main44325-12030i199906-200209
MARK 2
main44325-12040i199604-199906
MARK 3
main44325-12050i199604-199906
MARK 4
main44325-12270i199604-199906
NO MARK
main44325-12280i199906-200008
MARK 1
main44325-12290i199604-199906
MARK 2
main44325-12300i199906-200111
MARK 3
main44325-12310i199604-199906
MARK 4
main44325-32270i199906-200412
NO MARK
main44325-32280i199604-200209
MARK 1
main44325-32290i199906-200310
MARK 2
main44325-32300i199906-200310
MARK 3
main44325-32310i199604-200209
MARK 4
main44325-35060i200111-200209
NO MARK
main44325-35070i200111-200209
MARK 1
main44325-35080i200111-200209
MARK 2
main44325-35090i200111-200209
MARK 3
main44325-35100i200111-200209
MARK 4
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
main90250-04047i199604-199906
L=28,OD=4.0
main90250-04049i199906-200008
L=43,OD=4.0
main90250-04071×2i199604-200209
L=23.3,OD=4.0
main90250-05008×2i199604-199906
L=25,OD=5.0
44330VALVE ASSY, FLOW CONTROL
main44330-26071i199906-200412
MARK A
main44330-26081i199906-200412
MARK B
main44330-26091i199906
MARK C
main44330-26101i199604-200209
MARK D
main44330-26111i199906-200412
MARK E
main44330-26121i199906-200209
MARK F
main44330-26190i199906-200008
MARK A
main44330-26200i199604-199906
MARK B
main44330-26210i199906-200209
MARK C
main44330-26220i199906-200008
MARK D
main44330-26230i199906-200008
MARK E
main44330-26240i199604-199906
MARK F
main44330-32130i199604-199906
MARK A
sub44330-32670
main44330-32140i199906-200209
MARK B
sub44330-32680
main44330-32150i199906-200209
MARK C
sub44330-32690
main44330-32160i199604-199906
MARK D
sub44330-32700
main44330-32170i199604-199906
MARK E
sub44330-32710
main44330-32180i199906-200209
MARK F
sub44330-32720
main44330-32790i199604-199906
MARK A
main44330-32800i199604-199906
MARK B
main44330-32810i199604-199906
MARK C
main44330-32820i199604-199906
MARK D
main44330-32830i199604-199906
MARK E
main44330-32840i199604-199906
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
main90501-12103i199906-200209
main90501-13034i199604-200209
44337UNION, POWER STEERING SUCTION PORT
main44337-30010i199604-199906
main44337-35060i199604-199906
44337ARING, O(FOR POWER STEERING SUCTION PORT)
main90301-11010i199604-199711
main90301-11016i199711-199906
main96711-19013i199906-200209
44338ARING, O(FOR PRESSURE PORT UNION)
main90301-19003i199604-199711
ID=19.5,OD=22.5
main90301-19013i199711-200209
ID=19.2,OD=22.3
main90301-19018i199906-200008
ID=19.2,OD=22.3
main90301-22001i199604-199906
OD=25.5,ID=22.5
main96711-19014i199604-199906
OD=17.0,ID=13.0
44341PLATE, VANE PUMP SIDE, FRONT
main44341-60010i199906-200209
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
main90301-28005i199906-200209
44342PLATE, VANE PUMP SIDE, REAR
main44341-12010i199906-200209
main44342-26020i199604-200209
main44342-60020i199906-200008
44345BPLATE, VANE PUMP
main44345-12010×10i199906-200209
L=14.997
main44345-12020×10i199906-200209
L=14.995
main44345-12030×10i199906-200209
L=14.993
main44345-12040×10i199604-199906
L=14.991
main44345-12050×10i199604-199906
L=14.989
main44345-26010×10i199604-200209
L=15.000
main44345-26020×10i199906-200209
L=14.998
main44345-26030×10i199906-200412
L=14.996
main44345-26040×10i199906
L=14.994
main44345-26050×10i199906
L=14.992
main44345-60010×10i199906-200008
L=15.000
main44345-60020×10i199906-200008
L=14.998
main44345-60030×10i199906-200209
L=14.996
main44345-60040×10i199604-199906
L=14.994
main44345-60050×10i199906-200008
L=14.992
9011908469
main90119-08469
9017910087
main90179-10087
9020630002
main90206-30002
