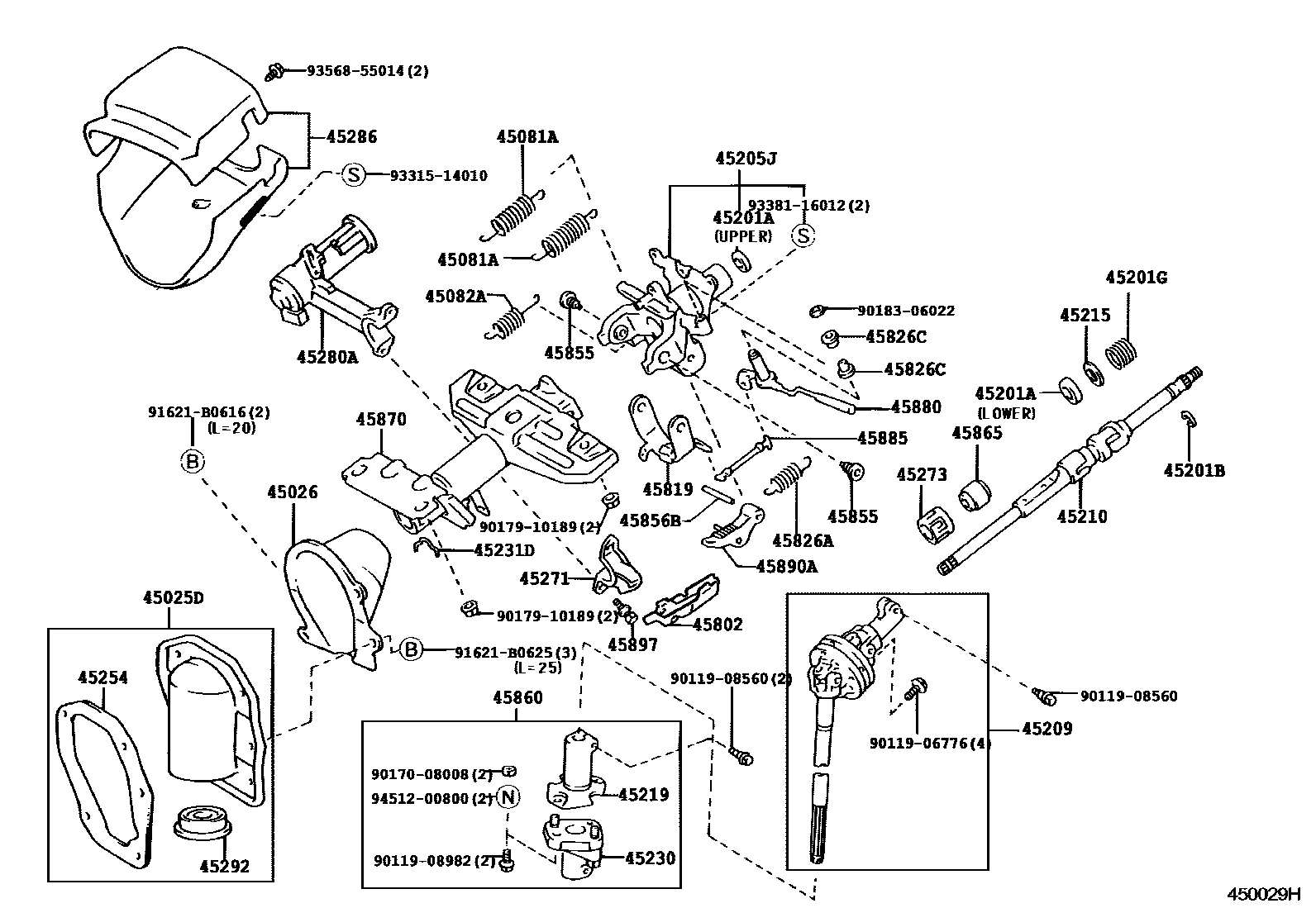

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1TILT STEERING 0003 1RIGID STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-35280iLJ9#,RZJ95,VZJ95..RHD199604-199706

main45025-35290iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199604-199706

main45025-35340iRZJ95..RHD..(GX,VX);KZJ95,LJ9#,VZJ95..RHD199906-200209

main45025-35350iRZJ95..LHD..GEN;RZJ95..ATM..GCC;KZJ95,LJ9#,RZJ90,VZJ9#..LHD..MTM..(DSL,EFI,TDEFI)..(GCC,GEN)199906-200209

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-35030iRZJ95..RHD..(GX,VX);KZJ95,LJ9#,VZJ95..RHD199906-200209

main45026-35040iVZJ95..ATM..GCC199906-200310

45081ASPRING, TENSION(FOR TILT STEERING)

main90506-25006×2iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45082ASPRING, TORSION(FOR TILT STEERING RETURN)

main90507-16024iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18009iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

UPPER

main90363-18011iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-199910

LOWER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iVZJ95..ARL200108

T=1.20,W(TILT STEERING)

main90520-17269iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199801

T=1.20,NO.1

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-35260iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199906-200108

main45205-35300iKZJ95,LJ95,RZJ9#,VZJ9#..GX,VX200108-200812

45209YOKE SUB-ASSY, STEERING SLIDING

main45290-60010iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199706

main45290-60011iKZJ9#,LJ9#,RZJ9#..GCC,GEN199706-199708

main45290-60020iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-199706

W(TILT STEERING)

main45290-60021iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199706-199708

W(TILT STEERING)

main45290-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199801-200209

main45290-60040iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199708-199801

W(TILT STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-35200iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199801

main45210-35210iKZJ9#,LJ95,RZJ9#..GX..GEN; RZJ95,VZJ9#..EFI..(ARL,GCC)199604-199801

W(TILT STEERING)

main45210-35221iRZJ95..MTM..GCC199906-200311

W(TILT STEERING)

main45210-60120iRZJ90,VZJ95200510-200710

W(TILT STEERING)

main45210-60121iRZJ90,VZJ95200711

W(TILT STEERING)

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45219YOKE, STEERING SLIDING

main45209-34040iRZJ9#..GX;VZJ95..CO200302

main45209-35100iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199706

main45209-35101iRZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN);KZJ95,LJ9#,RZJ90,VZJ90..(DSL,EFI,TDEFI)..(ARL,GCC,GEN,MA)199906-200209

45230COUPLING ASSY, FLEXIBLE

main45230-35090iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iRZJ95..GX..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX199604-199801

45254SHIELD, STEERING COLUMN HOLE

main45254-35130iKZJ9#..GEN199906-200008

main45254-35150iRZJ95..RHD..STD199906-200412

45271CLAMP, STEERING COLUMN, UPPER

main45271-12070iRZJ95..LHD..GEN;RZJ95..RHD..GX..GEN;KZJ95,LJ9#,RZJ90..(DSL,EFI,TDEFI)..GEN199906-200209

main45271-12080iRZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ95,VZJ90..EFI,TDEFI199906-200209

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

main45273-16020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199801-200209

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60410iRZJ95..LHD..GEN;RZJ95..RHD..GX..GEN;KZJ95,LJ9#,RZJ90..(DSL,EFI,TDEFI)..GEN199906-200209

main45280-60420iKZJ9#,LJ95,RZJ9#,VZJ95..(GX,VX)..(ARL,CO,GEN)199604-199906

W(TILT STEERING)

main45280-60430iVZJ95..ARL200108-200209

W(TILT STEERING & PRE-WIRLING FOR TVSS+IMOBILIZER)

45286COVER, STEERING COLUMN

main45286-60948-B0iLJ9#,RZJ95..RHD..(CBR,DSL)199807-199906

MD.MOON MIST,TRIM1#

main45286-60948-B1iRZJ95..RHD..STD199906-200412

MD.MOON MIST,TRIM1#

main45286-60948-E0iLJ95,RZJ95..RHD..GX..GEN199906-200209

OAK,TRIM4#

main45286-60949-B1iKZJ95,LJ95..RHD..(GX,VX);RZJ95..RHD..(GX,VX)..(GEN,MA); RZJ95,VZJ95..ARL199906-200209

MD.MOON MIST,TRIM1#; W(TILT STEERING),MD.MOON MIST,TRIM1#

main45286-60949-E0iKZJ95,LJ95,RZJ95..RHD..(GX,VX)..(GEN,MA); KZJ95,RZJ95,VZJ95..ARL199906-200209

OAK,TRIM4#; W(TILT STEERING),OAK,TRIM4#

main45286-60951-B0iKZJ9#,LJ9#,RZJ9#..LHD..(CO,GEN)199801-199906

MD.MOON MIST,TRIM1#

main45286-60951-E0iKZJ9#..GEN199906-200008

OAK,TRIM4#

main45286-60952-B0iKZJ95,LJ95,RZJ9#..LHD..GX..(DSL,EFI,TDEFI)..GEN; VZJ9#..MTM..GCC;RZJ95..ATM..GCC199906-200209

MD.MOON MIST,TRIM1#; W(TILT STEERING),MD.MOON MIST,TRIM1#

main45286-60952-E0iVZJ95..ATM..GCC199906-200310

OAK,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199706

main45292-35090iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199706-200209

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-12020iRZJ95..ARL;LJ95..LHD..STD;RZJ95..CBR..GCC;LJ95,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199801-200209

45819RETAINER, TILT LEVER

main45819-35010iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90905-07012iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45826CBUSH(FOR STEERING TILT LEVER)

main90389-08120×2iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-199910

45855BOLT, TILT STEERING, NO.1

main45855-35010×2iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

OD=10

45856BSHAFT, T1LT STEERING, NO.2

main45856-42010iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199910

45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45860-34020iRZJ9#..GX;VZJ95..CO200302

main45860-35170iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199706

main45860-35171iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199706-200209

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iRZJ95..GX..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..GX,VX199604-199801

45870TUBE ASSY, STEERING COLUMN

main45870-35320iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199801

main45870-35340iVZJ9#..GCC199608-199801

main45870-35360iKZJ9#..GEN199910-200008

W(TILT STEERING)

45880LEVER ASSY, STEERING TILT

main45880-60020iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199910

45885LINK, TILT LEVER

main45885-35010iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45890APAWL ASSY, TILT STEERING

main45890-35010iRZJ95..GX..CBR..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)199604-200209

45897BOLT, STEERING LOCK SET

main45897-12020×2iRZJ90,VZJ95..CO;RZJ95..MTM..GCC199906

9011906776

main90119-06776

9011908560

main90119-08560

9011908982

main90119-08982

9017008008

main90170-08008

9017910189

main90179-10189

9018306022

main90183-06022

91621B0616

main91621-B0616

91621B0625

main91621-B0625

9331514010

main93315-14010

9338116012

main93381-16012

9356855014

main93568-55014

9451200800

main94512-00800

45 parts on this diagram · 3 diagrams in section
