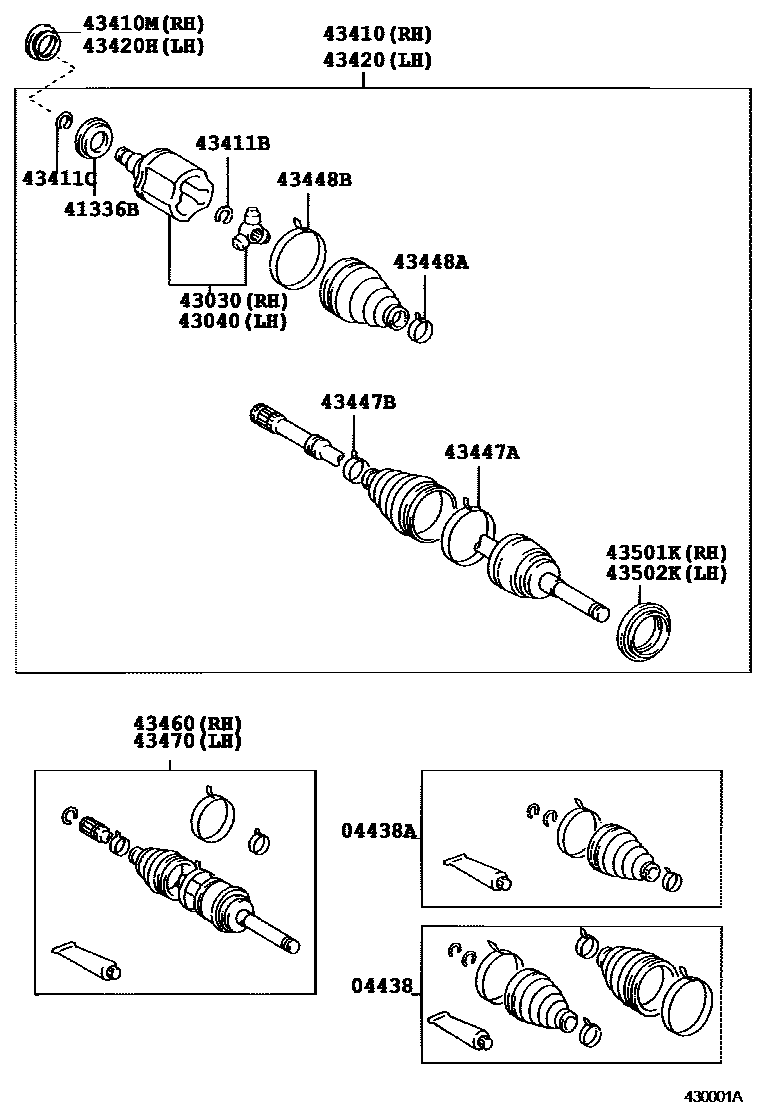

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35030×2iKZJ9#,LJ9#,RZJ9#,VZJ9#199910-200111

main04438-35060×2iKZJ95,LJ9#,RZJ9#,VZJ9#200111

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35040×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-35020×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main43430-60010iKZJ9#,LJ9#,RZJ9#..MTM..(GCC,GEN,MA)200001-200209

W(MANUAL FREE WHEEL HUB)

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-47010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90521-29002×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-35030iRZJ95..VX;RZJ95..ARL,GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ9#199910

main43430-60010iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(GCC,GEN,MA)199906-200001

W(MANUAL FREE WHEEL HUB)

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-47011iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90199906-200808

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01A50×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60110×2iRZJ9#,VZJ95200209

main90949-01A51×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39065iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main43460-69025iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199906

W(MANUAL FREE WHEEL HUB)

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-39065iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

main43460-69025iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(GCC,GEN,MA)199906-200001

W(MANUAL FREE WHEEL HUB)

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-80002iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-80002iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

19 parts on this diagram · 1 diagram in section
