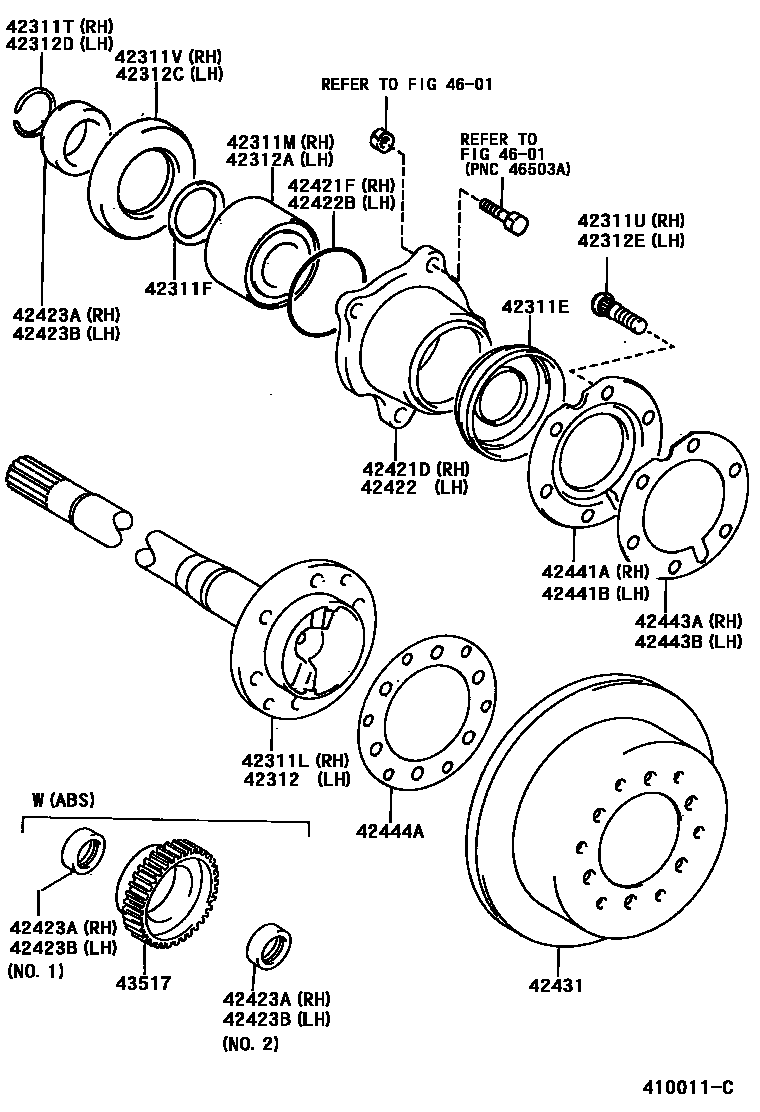

REAR AXLE SHAFT & HUB

0001 1W(REAR DISC BRAKE) 0002 1W(REAR DRUM BRAKE)

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iKZJ9#,LJ9#,RZJ9#..GCC,GEN199801-199906

W(REAR DRUM BRAKE)

main90313-48004×2iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199910

W(REAR DISC BRAKE)

main90313-54001×2iRZJ95..LHD..MTM;KZJ95,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA)200008

W(REAR DRUM BRAKE)

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90208-40002×2iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199910

42311LSHAFT, REAR AXLE, RH

main42311-35270iKZJ9#,LJ9#,RZJ9#199604-199801

W(REAR DRUM BRAKE)

main42311-60130iVZJ9#..GCC199608-199906

main42311-60140iRZJ95..ATM;KZJ95,RZJ95..GX..(EFI,TDEFI)..(ARL,GEN); VZJ95..CO199906-199910

W(ABS & REAR DISC BRAKE)

main42311-60210iRZJ95..LHD..MTM;KZJ95,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA)200008-200309

W(REAR DRUM BRAKE)

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90363-40020iRZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN; RZJ95..RHD..STD;RZJ9#..GX..(CO,MA)199906-200008

W(REAR DRUM BRAKE)

main90363-40068iRZJ95..RHD..STD200008-200412

main90369-40003iVZJ95..ARL;KZJ9#,RZJ9#..GX199604-199807

W(REAR DISC BRAKE)

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-36045iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02052×6iRZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#;RZJ95..RHD..GX..EFI199604-199909

main90942-02079×6iRZJ95..ARL; RZJ95..GX,VX;VZJ95..ARL,CO;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN)199910-200108

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-50001iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS)

main90310-50005iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS)

main90310-58002iRZJ95..ARL;VZJ9#..ARL,GCC199604-200209

W(REAR DISC BRAKE) & W/O(ABS)

42312SHAFT, REAR AXLE, LH

main42311-35270iKZJ9#,LJ9#,RZJ9#..GCC,GEN199801-199906

W(REAR DRUM BRAKE)

main42311-60130iVZJ9#..GCC199608-199906

main42311-60140iRZJ95..ATM;KZJ95,RZJ95..GX..(EFI,TDEFI)..(ARL,GEN); VZJ95..CO199906-199910

W(ABS & REAR DISC BRAKE)

main42311-60210iRZJ9#200309

W(REAR DRUM BRAKE)

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90363-40020iKZJ9#,LJ9#,RZJ9#199604-199801

W(REAR DRUM BRAKE)

main90363-40068iRZJ95..LHD..MTM;KZJ95,LJ9#,RZJ90..GEN;RZJ95..RHD..GX..(GEN,MA)200008-200209

W(REAR DRUM BRAKE)

main90369-40003iRZJ95..ARL199910-200209

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-50001iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS)

main90310-50005iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

W(REAR DRUM BRAKE) OR W(REAR DISC BRAKE & ABS)

main90310-58002iRZJ95..ARL;VZJ9#..ARL,GCC199604-200209

W(REAR DISC BRAKE) & W/O(ABS)

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-36045iRZJ95..LHD;RZJ95..RHD..GX;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN199906-199910

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02052×6iVZJ95..CO199909-199910

main90942-02079×6iRZJ95..ARL200108-200209

42421DCASE, REAR AXLE BEARING, RH

main42421-35030iRZJ95..LHD..GEN;RZJ95..ATM..GCC;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN199906-200008

W(REAR DRUM BRAKE)

main42421-35050iRZJ95..LHD..MTM;KZJ95,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA)200008

W(REAR DRUM BRAKE)

main42421-60030iVZJ95..CO;RZJ95..ARL199906-200209

W(REAR DISC BRAKE)

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-78001iVZJ95..ARL;KZJ9#,RZJ9#..GX199604-199807

W(REAR DISC BRAKE)

main90301-88077iRZJ95..GX..MA;KZJ95..TDEFI..GEN199910-200209

42422CASE, REAR AXLE BEARING, LH

main42421-35030iRZJ9#..GX..(CO,MA)199910-200008

main42421-35050iRZJ95..LHD..MTM;KZJ95,LJ9#,RZJ90..CO,GEN;RZJ95..RHD..GX..(GEN,MA)200008

W(REAR DRUM BRAKE)

main42422-60020iRZJ95..ARL;RZJ95..GX..CBR;KZJ9#,RZJ90,VZJ95..(EFI,TD)..(ARL,GEN)199807-199906

W(REAR DISC BRAKE)

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-78001iVZJ95..ARL;KZJ9#,RZJ9#..GX199604-199807

W(REAR DISC BRAKE)

main90301-88077iRZJ95..ATM;RZJ95..RHD..GX;RZJ95..LHD..GEN;KZJ9#,LJ9#,RZJ90..GEN199906-199910

W(REAR DRUM BRAKE)

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-20010iKZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN); LJ9#,RZJ90;RZJ95..LHD; VZJ95..CO199906-199910

W(ABS & REAR DISC BRAKE),NO.1; W(REAR DRUM BRAKE)

main42423-60020iKZJ95..ARL199909-200209

W(REAR DISC BRAKE),NO.2

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-20010iRZJ9#..CO,GEN; RZJ95,VZJ95..LHD200309

W(ABS & REAR DISC BRAKE),NO.1; W(REAR DRUM BRAKE)

main42423-60020iRZJ95..ARL;KZJ9#,VZJ9#;RZJ95..GX..CBR;RZJ90..EFI..GEN199807-199906

W(ABS & REAR DISC BRAKE),NO.2

42431DISC, REAR

main42431-60200×2iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199906-200505

main42431-60201×2iRZJ95,VZJ95200505

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-35020iKZJ9#,LJ9#,RZJ9#..GCC,GEN199801-199906

W(REAR DRUM BRAKE)

main42441-60020iVZJ9#..GCC; VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN); VZJ95..CO199906-199909

W(REAR DISC BRAKE)

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-35020iRZJ95..GEN200309

main42441-60020iVZJ9#..GCC; VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN); VZJ95..CO199906-199909

W(REAR DISC BRAKE)

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-55020iRZJ9#200309

W(REAR DRUM BRAKE)

main42443-60010iVZJ9#..GCC; VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN); VZJ95..CO199906-199909

W(REAR DISC BRAKE)

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-55020iRZJ9#200309

W(REAR DRUM BRAKE)

main42443-60010iVZJ9#..GCC; VZJ95..ARL;KZJ9#,RZJ9#..GX..(GCC,GEN); VZJ95..CO199906-199909

W(REAR DISC BRAKE)

42444AGASKET, BRAKE DISC, REAR

main42444-60020×2iKZJ9#,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199906-199910

43517ROTOR, SKID CONTROL, REAR

main43517-35010×2iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199910

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

26 parts on this diagram · 2 diagrams in section
