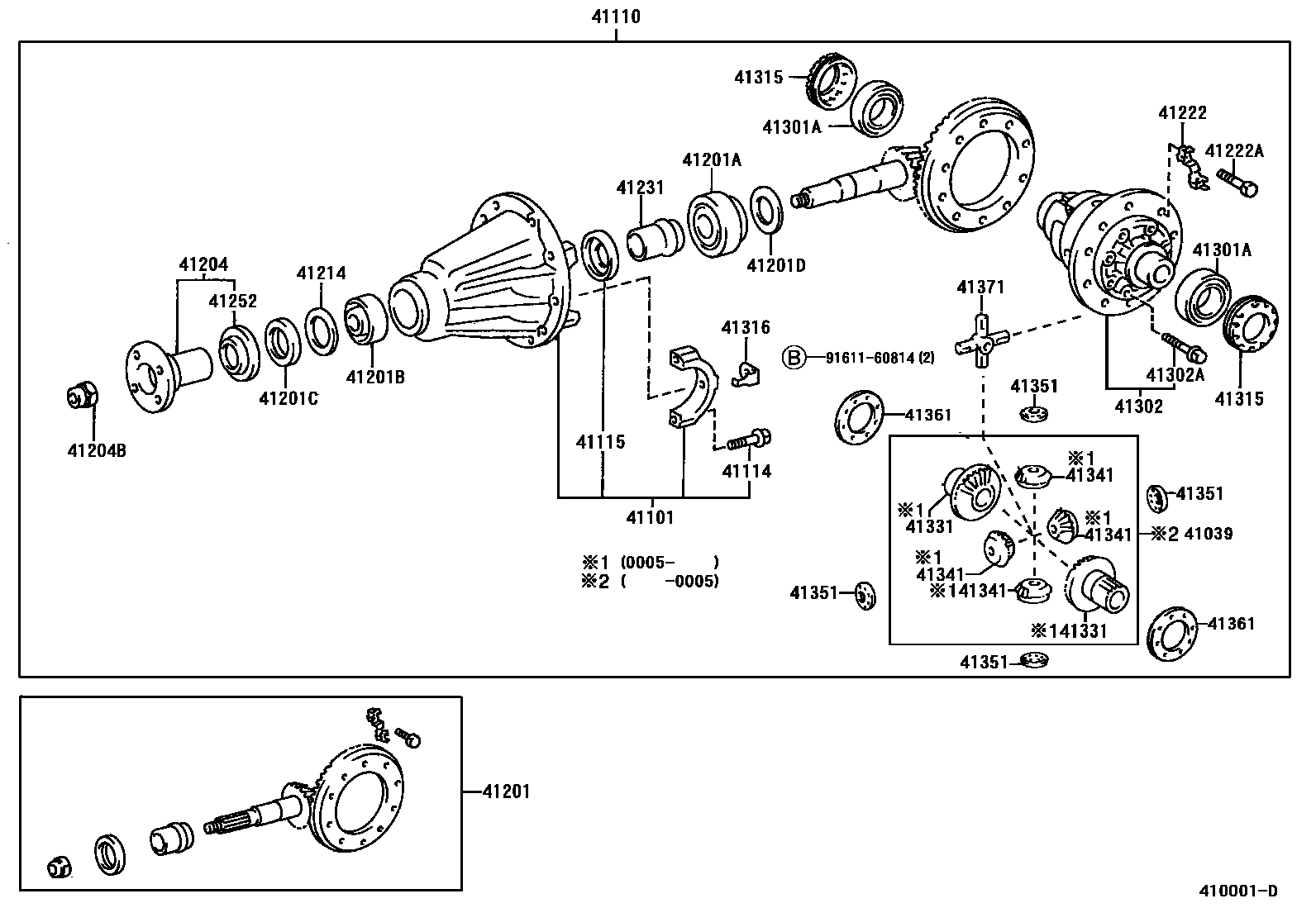

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL 0003 1REAR DIFFERENTAIL LOCK 0004 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34060iRZJ90..STD;KZJ9#,RZJ95..GEN200005-200208

W(REAR DIFFERENTIAL LOCK)

main41039-34070iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA200005

W(LSD)

main41039-34080iVZJ95..MTM..VX;KZJ95,VZJ95..ATM..(ARL,CO,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..CO,GCC,GEN200005-200208

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35150iRZJ90..STD;KZJ9#,RZJ95..GEN199906-200208

W(REAR DIFFERENTIAL LOCK)

main41101-35170iKZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

main41101-60160iLJ9#199604-199906

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-35890iKZJ9#,VZJ9#199604-199801

*FGR=41:10=4.100

main41110-3D020iVZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,RZJ9#,VZJ90..GCC,GEN199906-199910

*FGR=43:10=4.300

main41110-3D030iKZJ9#..GEN199906-200209

*FGR=41:10=4.100,W(REAR DIFFERENTIAL LOCK)

main41110-3D040iKZJ95..TDEFI..(GEN,MA)199910-200209

*FGR=43:10=4.300,W(LSD)

main41110-3D050iKZJ95..ARL199909-200209

*FGR=43:11=3.909

main41110-3D060iKZJ95..ARL;KZJ9#,VZJ9#..(EFI,TD)..(ARL,GCC,GEN)199906-200209

*FGR=41:10=4.100,W(LSD) & AXLE CODE=A01A

main41110-3D080iRZJ90..STD;RZJ95..GEN199906-200209

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK) & AXLE CODE=A02B

main41110-3D090iRZJ90..CO; RZJ95..GX199906-199910

*FGR=41:9=4.555

main41110-3D210iRZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

*FGR=41:9=4.555,W(LSD) & AXLE CODE=A03A

main41110-60690iLJ9#199604-199906

*FGR=39:8=4.875

main41110-60700iLJ9#199604-199906

*FGR=39:8=4.875,W(LSD)

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-69465iRZJ90..STD;RZJ95..GEN199906-200201

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

main41201-69466iRZJ95..GEN200209-200412

*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)

main41201-80100iKZJ95..ARL199909-200201

*FGR=43:11=3.909

main41201-80102iKZJ9#,VZJ9#..EFI,TD199604-199910

*FGR=41:10=4.100

main41201-80103iKZJ9#..GEN199906-200201

*FGR=41:10=4.100,W(REAR DIFFERENTIAL LOCK)

main41201-80104iRZJ95,VZJ95..ARL,CO,GCC,GEN;KZJ9#,RZJ90,VZJ90..GCC,GEN,MA; VZJ95..CO;RZJ95..ARL199906-200201

*FGR=43:10=4.300

main41201-80105iRZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200201

*FGR=41:9=4.555

main41201-80118iLJ9#199604-199906

*FGR=39:8=4.875

main41201-80177iKZJ95..ARL200201-200209

*FGR=43:11=3.909

main41201-80179iVZJ95..ATM..GCC200201-200208

*FGR=41:10=4.100

main41201-80180iKZJ95..GEN200201-200209

*FGR=41:10=4.100,W(REAR DIFFERENTIAL LOCK)

main41201-80181iRZJ95..ARL200201-200209

*FGR=43:10=4.300

main41201-80182iRZJ9#..GX,VX200201

*FGR=41:9=4.556

main41201-80183iLJ9#200201-200209

*FGR=39:8=4.875

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30025iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199801

W(REAR DIFFERENTIAL LOCK)

main90366-30067iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iKZJ9#,LJ9#,RZJ9#,VZJ9#199910-200201

main90311-41009iKZJ95,LJ9#,RZJ9#,VZJ9#200201

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=1.70

main90201-35498iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=1.73

main90201-35499iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

OD=47,T=1.76

main90201-35500iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

OD=47,T=1.79

main90201-35501iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=1.82

main90201-35502iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=1.85

main90201-35503iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=1.88

main90201-35504iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=1.91

main90201-35505iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=1.94

main90201-35506iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

OD=47,T=1.97

main90201-35507iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=2.00

main90201-35508iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=2.03

main90201-35509iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.06

main90201-35510iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.09

main90201-35511iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

OD=47,T=2.12

main90201-35512iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.15

main90201-35513iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

OD=47,T=2.18

main90201-35514iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

OD=47,T=2.21

main90201-35515iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.24,MARK 01

main90201-35516iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.27,MARK 02

main90201-35517iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.30,MARK 03

main90201-35518iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200201

main41204-35081iRZJ95..ARL200201-200209

main41204-35082iRZJ9#,VZJ95200405

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iRZJ95..ARL200201-200209

OD=39.5

main90179-20018iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200201

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

main41214-26011iRZJ95..ARL200201-200209

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

main41222-60010×5iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

W(REAR DIFFERENTIAL LOCK)

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200201

main41252-35041iRZJ95..ARL200201-200209

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60060iRZJ90..STD;KZJ9#,RZJ95..GEN199906-200208

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

RH

main90366-75001iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

LH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

main41302-35040iRZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200209

W(LSD)

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-10084×8iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

RH

main41315-60010iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

LH

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35030×2iRZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200005

W(LSD)

main41331-35040×2iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

main41331-60040iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

LH

41341PINION, REAR DIFFERENTIAL

main41341-30020×4iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060×4iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35160×6iRZJ95..GX,VX;RZJ95..LHD..STD;KZJ95,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN,MA200208-200302

T=1.8,W(LSD)

main41361-35161×6iRZJ95,VZJ95..GCC200302-200312

T=1.8,W(LSD)

main41361-35290×2iRZJ9#..CBR;RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN)199801-200208

T=1.70,MARK N,W(LSD)

main41361-35291×2iRZJ95,VZJ95..GCC200302-200312

T=1.70,MARK N,W(LSD)

main41361-35310×2iKZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN199801-199809

T=0.9

main41361-35320iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

T=1.0,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-35330×2iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

T=1.1

main41361-35340×2iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

T=1.2

main41361-35350×2iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

T=1.3

main41361-60290×2iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

T=0.90,W(REAR DIFFERENTIAL LOCK)

main41361-60300×2iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

T=1.00,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60310×2iKZJ9#,RZJ9#..(CBR,TD)..GEN199604-199906

T=1.10,W(REAR DIFFERENTIAL LOCK)

main41361-60320×2iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

T=1.20,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60330×2iRZJ90..STD;RZJ95..RHD..GX..GEN;KZJ95,RZJ95..LHD..GEN200208-200209

T=1.30,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

41371SPIDER, REAR DIFFERENTIAL

main41306-35040iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906

W(LSD)

main41371-35020iRZJ90,VZJ95..CO; VZJ95..MTM..GCC;VZJ95..ATM..(ARL,GCC);KZJ9#,LJ9#,RZJ9#,VZJ90..ARL,GCC,GEN199906-199910

9161160814

main91611-60814
