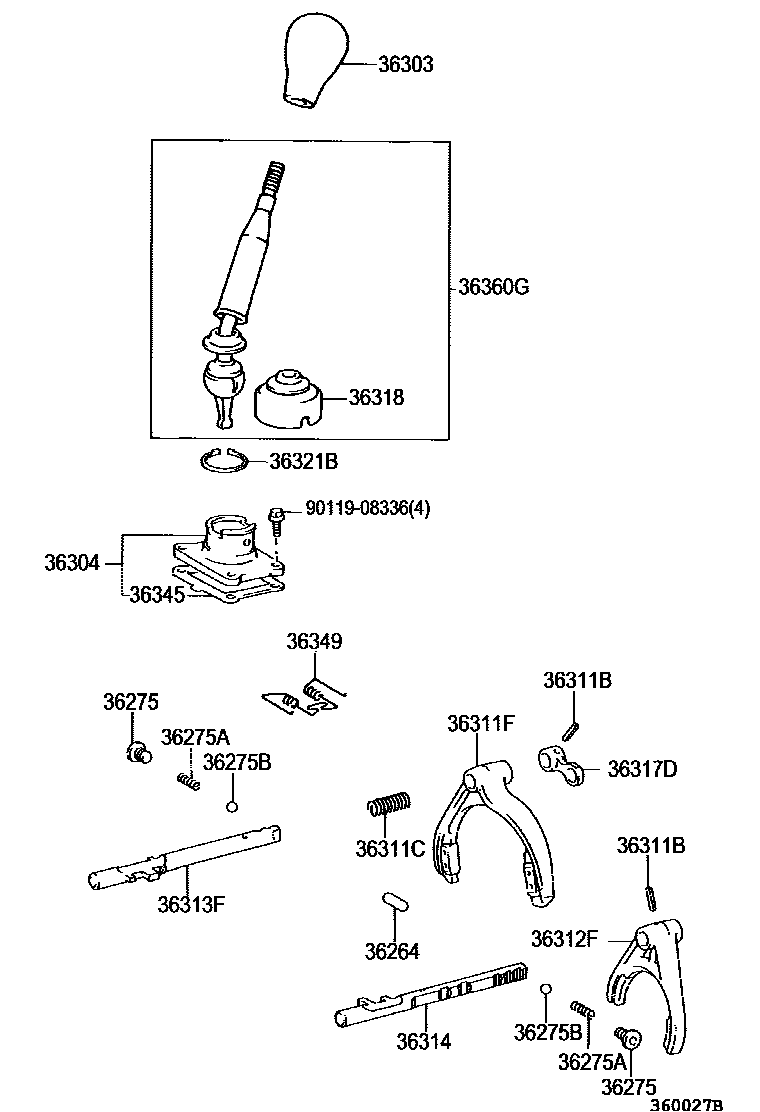

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1 0005 1W(215/80R16 TIRE OR 265/70R160006 1W(ACTIVE TRC OR VSC)

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main90341-12014iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-200209

L=23

36275BBALL, SHIFT DETENT

main90360-10003iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

OD=9.52,STEEL

main90360-10003iKZJ95,VZJ95..ATM..ARL199906-200209

OD=9.52,STEEL,W(ACTIVE TRC OR VSC)

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35140-C0iRZJ90..CO199604-200412

BLACK,TRIM1#

main36303-35140-C0iKZJ9#..GEN199906-200209

BLACK,TRIM1#,4#

main36303-60260-C0iVZJ95..CO199604-199910

BLACK,TRIM1#

main36303-60260-C0iRZJ95..ATM..GCC200001-200209

CHINA SPEC,BLACK,TRIM1#,4#

main36303-60260-C0iVZJ95..ARL;RZJ95..MTM..ARL;RZJ95..RHD..ATM;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC,MA199906-200310

BLACK,TRIM1#,4#

main36303-60270-C0iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC),BLACK,TRIM1#,4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35051iRZJ95..ATM..GCC199906-200209

main36304-35060iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199608

main36304-35061iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199608-200812

main36304-60030iVZJ9#;RZJ95..MTM..ARL199604-200812

main36304-60040iRZJ95..ATM..ARL199604-200209

main36304-60040iRZJ95..ATM..GCC200001-200209

CHINA SPEC

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iKZJ95,RZJ95..ATM199906-200209

L=22,W(ABS & ACTIVE TRC)

main90254-05001iKZJ95,RZJ95..ATM199604-200209

L=22

main90254-05001iKZJ95..ATM..ARL199909-200209

L=22,W(ACTIVE TRC OR VSC)

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199604-199910

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35020iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199604-199910

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35070iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

main36313-35080iRZJ95..ATM..GCC199906-200209

main36313-60110iKZJ95,RZJ95..RHD..ATM199604-200209

main36313-60110iRZJ95..ATM..GCC200001-200209

W(215/80R 16 TIRE OR 265/70R16 TIRE)

main36313-60120iVZJ9#;RZJ95..MTM..ARL199604-200209

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35110iRZJ95..ATM..GCC199906-200209

main36314-35140iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

main36314-60060iRZJ95..ATM..GCC200001-200209

W(215/80R 16 TIRE OR 265/70R16 TIRE)

main36314-60060iRZJ95..ATM..ARL199604-200209

main36314-60070iVZJ9#;RZJ95..MTM..ARL199604-200209

main36314-60080iVZJ95..ATM..ARL199906-200209

W(ACTIVE TRC)

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iKZJ95,RZJ95..ATM199604-200209

main36345-35050iVZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM199604-200209

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

main36349-35020iRZJ95..ATM..GCC199906-200209

main36349-60010iVZJ9#;KZJ95,RZJ95..MTM..ARL199604-200209

main36349-60020iKZJ95,RZJ95..RHD..ATM199604-200209

main36349-60020iRZJ95..ATM..GCC200001-200209

CHINA SPEC

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35211iKZJ9#..GEN199604-200209

main36360-60490iRZJ95..RHD..STD199604-200412

main36360-60501iKZJ95..MTM..ARL200001-200209

main36360-60520iVZJ95..ATM..ARL199604-199609

main36360-60521iKZJ95,VZJ95..RHD..ATM199609-200209

main36360-60530iVZJ95..ATM..GCC199608-199609

main36360-60531iVZJ95..LHD..ATM199609-200310

main36360-60540iVZJ95..MTM..ARL199604-200209

main36360-60550iVZJ9#..MTM..VX199608-200209

main36360-60560iRZJ95..MTM..ARL199604-200209

main36360-60570iRZJ95..ATM..ARL199604-200209

main36360-60580iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

main36360-60710iRZJ95..ATM..GCC199906-200209

main36360-60720iRZJ95..ATM..GCC200001-200209

CHINA SPEC

9011908336

main90119-08336

19 parts on this diagram · 6 diagrams in section
