TRANSFER GEAR

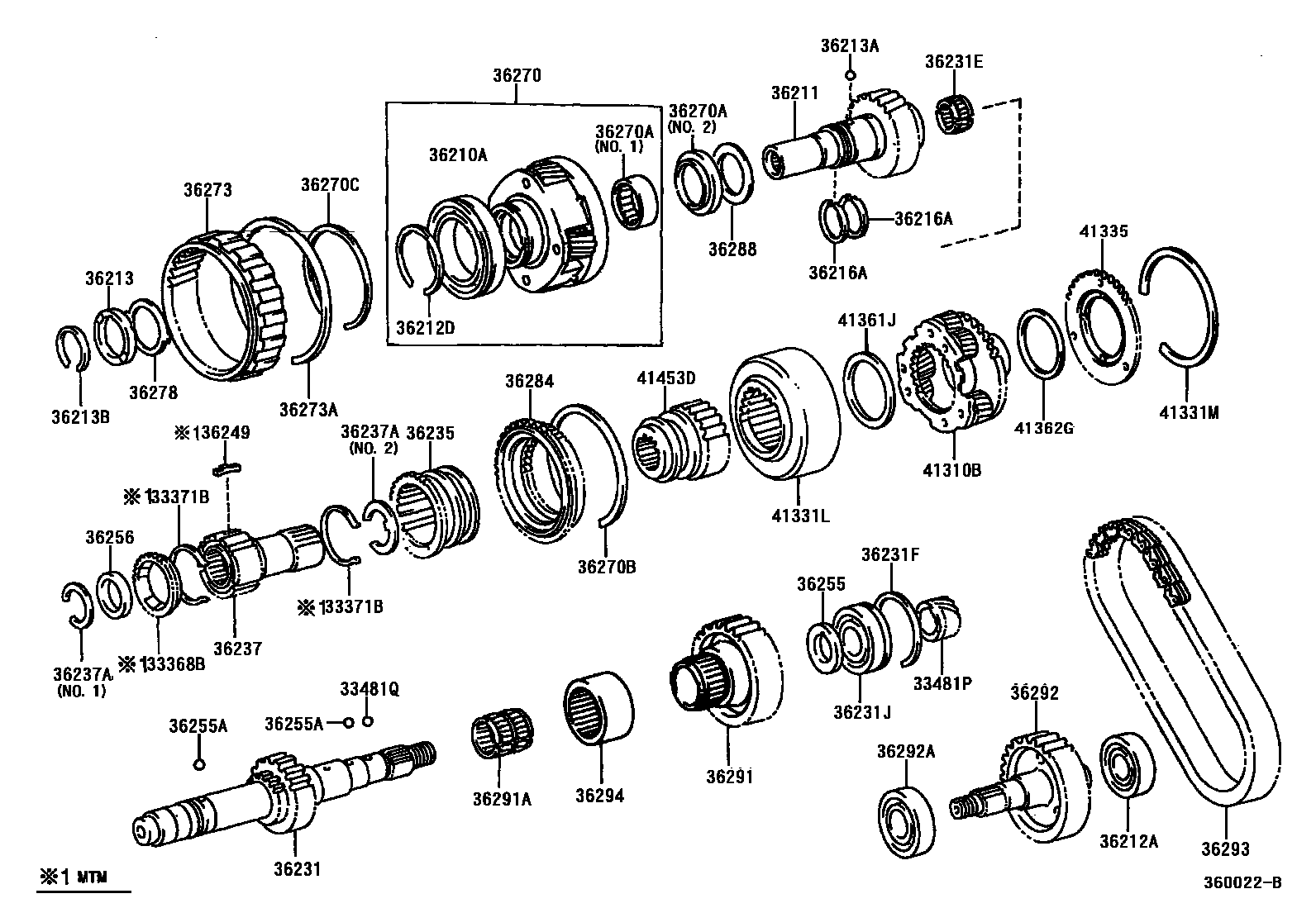

Parts diagram
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
main33367-14010i199906
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
main33371-14010×2i199604-200209
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
main33481-35111i199906
N=11
main33481-35121i199604-199906
N=8
main33481-35151i199604-199910
N=10
main33481-35200i199909-200209
N=11
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
main90360-05012i199604-200209
36210ABEARING (FOR TRANSFER INPUT SHAFT)
main90363-75001i199604-200209
36211SHAFT, TRANSFER INPUT
main36201-35040i199604-199910
main36201-35050i199604-200209
main36201-35060i199604-199901
main36201-35061i199901-200209
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
main90363-28004i199906
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
main90520-72001i199906
T=1.45,MARK 1
main90520-72002i199604-200209
T=1.50,MARK 2
main90520-72003i199906
T=1.55,MARK 3
main90520-72004i199604-200209
T=1.60,MARK 4
main90520-72005i199604-200209
T=1.65,MARK 5
36213STOPPER, TRANSFER INPUT GEAR
main36213-35020i199604-200209
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
main90360-05012i199906
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
main90520-44003i199906
T=2.10-2.15
main90520-44004i199906
T=2.15-2.20
main90520-44005i199906
T=2.20-2.25
main90520-44006i199906
T=2.25-2.30
main90520-44007i199604-200209
T=2.30-2.35
main90520-44008i199906
T=2.35-2.40
main90520-44009i199906
T=2.40-2.45
main90520-44010i199906
T=2.45-2.50
main90520-44011i199604-200209
T=2.50-2.55
main90520-44012i199906
T=2.55-2.60
main90520-44013i199906
T=2.60-2.65
main90520-44014i199604-200209
T=2.65-2.70
main90520-44015i199604-200209
T=2.70-2.75
main90520-44016i199604-200209
T=2.75-2.80
main90520-44017i199604-200209
T=2.80-2.85
main90520-44018i199906
T=2.85-2.90
main90520-44019i199604-200209
T=2.90-2.95
main90520-44020i199604-200209
T=2.95-3.00
main90520-44021i199604-200209
T=3.00-3.05
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
main36216-35011×2i199604-200209
main36216-35012×2i200812
36231SHAFT, TRANSFER OUTPUT, REAR
main36231-35030i199604-199910
main36231-60090i199604-200209
main36231-71010i200404
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
main90364-28004i199604-200209
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
main90520-71221i199604-200209
T=1.65,ID=71.1
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
main90363-32006i199604-200209
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
main36235-35021i199604-200209
36237HUB, TRANSFER CLUTCH
main36203-35010i200001-200209
W(215/80R 16 TIRE OR 265/70R16 TIRE)
main36237-35030i199604-199910
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
main90520-38008i200001-200209
T=2.10,MARK A,NO.1
main90520-39004i199906
T=2.10-2.15,MARK A
main90520-39005i199604-199910
T=2.15-2.20,MARK B
main90520-39006i199604-199910
T=2.20-2.25,MARK C
main90520-39007i199906
T=2.25-2.30,MARK D
main90520-39008i199906
T=2.30-2.35,MARK E
main90520-39009i199906
T=2.35-2.40,MARK F
main90520-39010i199906
T=2.40-2.45,MARK G
main90520-39011i199604-199910
T=2.45-2.50,MARK H
main90520-39012i199604-199910
T=2.50-2.55,MARK J
main90520-39013i199906
T=2.00-2.05,MARK K
main90520-39014i199604-199910
T=2.05-2.10,MARK L
main90520-58003i199906
T=1.95-2.05,NO.2
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
main36249-35030×3i199604-200209
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
main36255-35020i199604-200209
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
main90360-05012i199906
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
main36256-35020i199604-200001
36270GEAR ASSY, TRANSFER LOW PLANETARY
main36270-35900i199604-200209
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
main90364-47001i199604-200209
NO.1
main90374-49001i199906
NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
main90521-99056i199604-200209
T=1.8
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
main90520-99001i199906-200208
main90520-99072i200208-200209
36273GEAR, TRANSFER LOW PLANETARY RING
main36273-35030i199604-200209
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
main90520-99078i200208-200209
main90521-99052i199604-200208
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
main36278-35010i199604-200208
T=0.95-1.05
main36278-35020i200208
T=0.95-1.05
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
main36284-35021i199906
36288RACE, TRANSFER THRUST BEARING, NO.1
main36288-28010i199604-200209
36291SPROCKET, TRANSFER DRIVE
main36291-60010i200001
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
main90364-37009i199906-200208
main90364-37013i200208-200209
36292SPROCKET, TRANSFER DRIVEN
main36292-35030i199604-200204
main36292-35050i200204
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
main90363-32037i199604-200209
36293CHAIN, TRANSFER FRONT DRIVE
main36293-35030i199604-199609
main36293-35031i199609-200209
main36293-35040i200212
36294SLEEVE, TRANSFER DRIVE SPROCKET
main36294-60010i199604-200001
41310BGEAR ASSY, CENTER DIFFERENTIAL PLANETARY
main41310-60050i199604-199709
main41310-60051i199709-199905
main41310-60052i200001
41331LGEAR, CENTER DIFFERENTIAL PLANETARY RING
main41331-35060i199604-200001
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
main90521-99116i199604-200001
41335PLATE, CENTER DIFFERENTIAL PLANETARY RING GEAR
main41335-35010i199604-199709
main41335-35011i199709-200001
41361JWASHER, CENTER DIFFERENTIAL PLANETARY CARRIER, NO.1
main41361-35300i199604-200001
41362GWASHER, CENTER DIFFERENTIAL PLANETARY CARRIER, NO.2
main41362-35020i199604-200001
41453DSLEEVE, CENTER DIFFERENTIAL LOCK
main41453-35010i199604-200001

45 parts on this diagram · 3 diagrams in section
