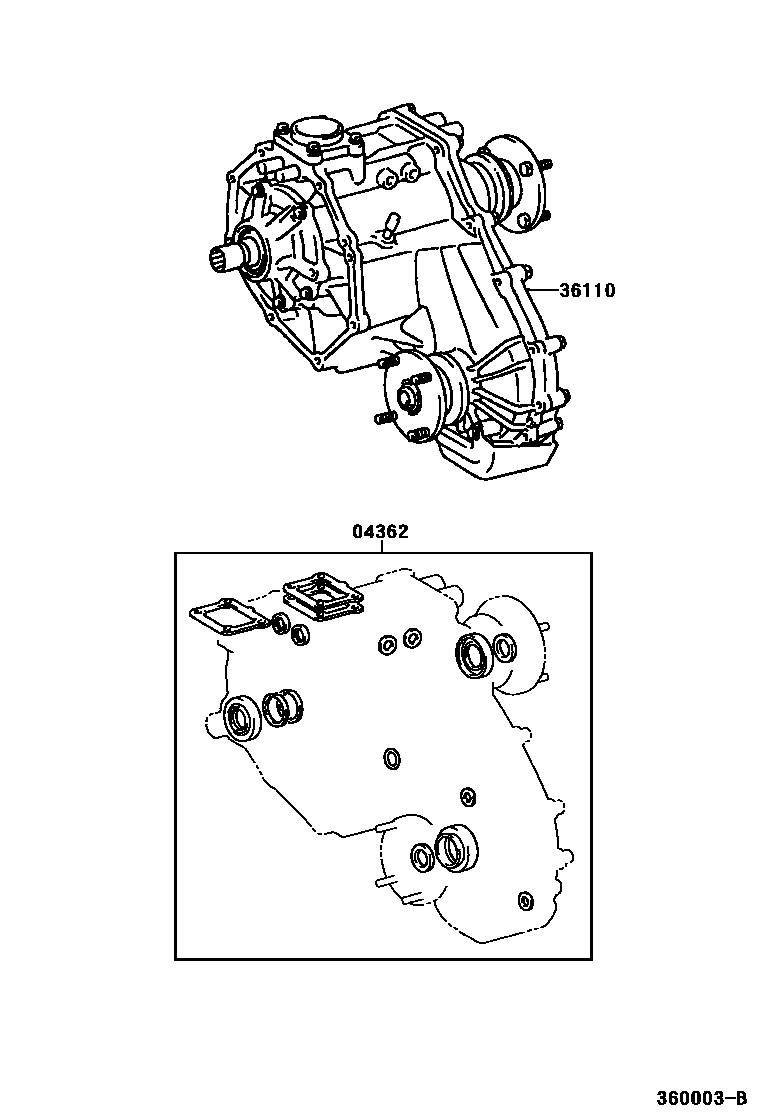

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-60070iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200412

main04362-60530iRZJ90200412-200608

main04362-60540iVZJ95..MTM200412-200608

main04362-60550iVZJ95..ATM200412-200608

main04362-60570iRZJ90200609-200807

main04362-60571iRZJ90200807-200808

main04362-60580iVZJ95..MTM200609-200807

main04362-60581iVZJ95..MTM200807-200808

main04362-60590iVZJ95..ATM200609-200807

main04362-60591iVZJ95..ATM200807-200808

36110TRANSFER ASSY

main36110-35221iRZJ90..GX..GEN;RZJ95..RHD..GX..GEN199906-200209

W(PART TIME 4WD)

main36110-35281iRZJ90..GX..GEN;RZJ95..RHD..GX..GEN; RZJ95..LHD..GX..GEN199906-200209

W(ABS & DIFFERENTIAL LOCK); W(ABS & PART TIME 4WD)

main36110-35300iRZJ95..ATM..GCC199906-200209

main36110-6C471iVZJ95..ATM199604-199910

main36110-6D041iVZJ9#..MTM..(ARL,GCC)199906-200209

W(CENTER DIFFERENTIAL LOCK)

main36110-6D051iKZJ95..ATM..ARL199909-200209

main36110-6D220iKZJ95..MTM..ARL200001-200209

main36110-6D231iRZJ95..MTM..ARL199604-200209

W(ABS & CENTER DIFFERENTIAL LOCK)

main36110-6D241iRZJ95..ATM..ARL199604-200209

main36110-6D251iKZJ95..MTM..ARL200001-200209

W(ABS)

main36110-6D261iVZJ9#..MTM..(ARL,GCC)199906-200209

W(ABS & CENTER DIFFERENTIAL LOCK)

main36110-6D271iRZJ95..MTM..ARL199604-200209

W(CENTER DIFFERENTIAL LOCK)

main36110-6D280iRZJ90..CO199910

main36110-6D290iKZJ9#199604-199906

W(PART TIME 4WD)

main36110-6D300iLJ9#199604-199906

W(PART TIME 4WD)

main36110-6D310iKZJ9#199604-199906

W(ABS & PART TIME 4WD)

main36110-6E160iKZJ95..ATM..ARL199909-200209

W(VSC)

main36110-6E170iVZJ95..ATM..ARL199906-200209

W(ACTIVE TRC)

2 parts on this diagram · 1 diagram in section
