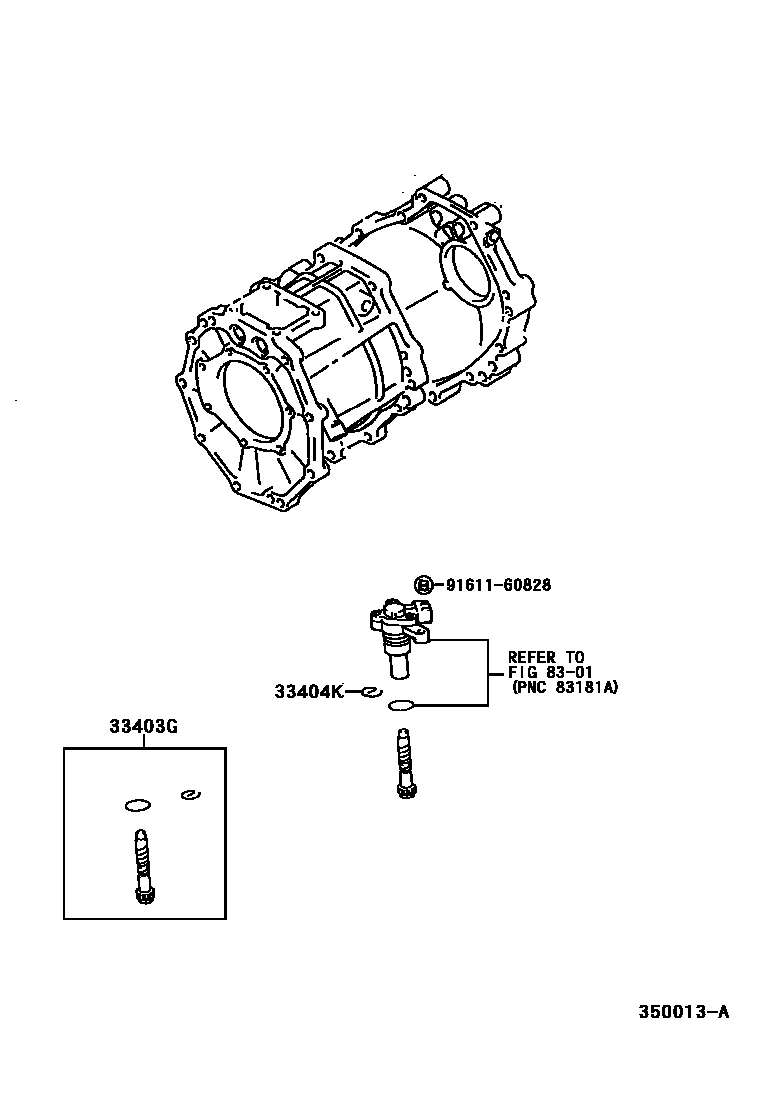

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39345iVZJ95..ATM199604-199910

N=31,MARK 31:11

main33403-39365iKZJ95..ATM..ARL199909-200209

N=30,MARK 30:11

main33403-39415iRZJ95..ATM199906-200209

N=33,MARK 33:11

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

8301METER

→ Go to FIG 83-01

9161160828

main91611-60828

4 parts on this diagram · 1 diagram in section
