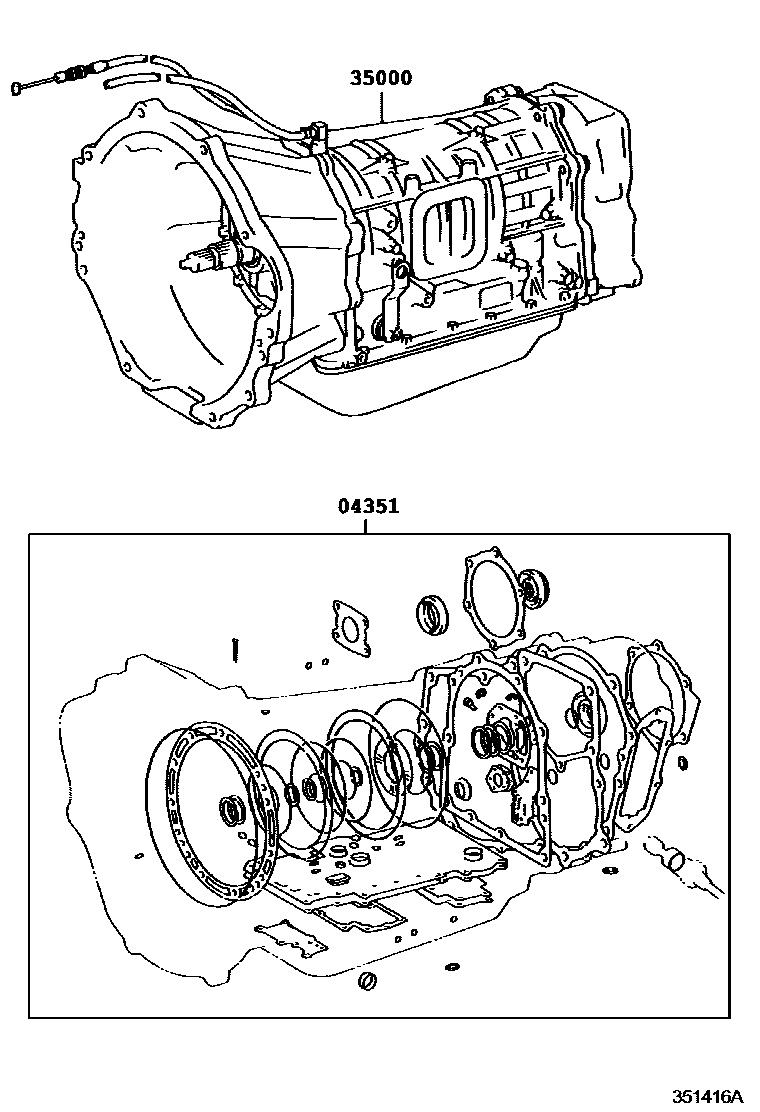

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-34020iRZJ95..ATM199604-199906

main04351-34030iVZJ95..ATM199604-199906

main04351-60041iKZJ95..MA199906-200008

main04351-60170iVZJ95..ATM199906-200210

main04351-60171iVZJ95..ATM200210-200404

main04351-60180iKZJ95..MA200008-200209

main04351-60440iVZJ95..ATM200404

35000TRANSMISSION ASSY, AUTOMATIC

main35000-60480iVZJ95..LHD..ATM199608-199906

main35000-60490iVZJ95..ATM..ARL199604-199906

main35000-60500iRZJ95..ATM199604-199906

main35000-60640iVZJ95..ATM..ARL199906-200209

main35000-60650iVZJ95..LHD..ATM199906

A343F

main35000-60660iRZJ95..ATM..ARL; RZJ95..RHD..ATM199910-200209

main35000-60670iRZJ95..ATM..GCC199906-200209

main35000-60680iKZJ95..ATM..ARL199909-200008

main35000-60690iKZJ95..MA199910-200008

main35000-60720iKZJ95..ATM..ARL199909-200008

W(VSC)

main35000-60860iRZJ95..ATM..GCC200001-200209

CHINA SPEC

main35000-60870iKZJ95..ATM..ARL200008-200209

main35000-60880iKZJ95..ATM..ARL200008-200209

W(VSC)

main35000-60890iKZJ95..MA200008-200209

2 parts on this diagram · 1 diagram in section
