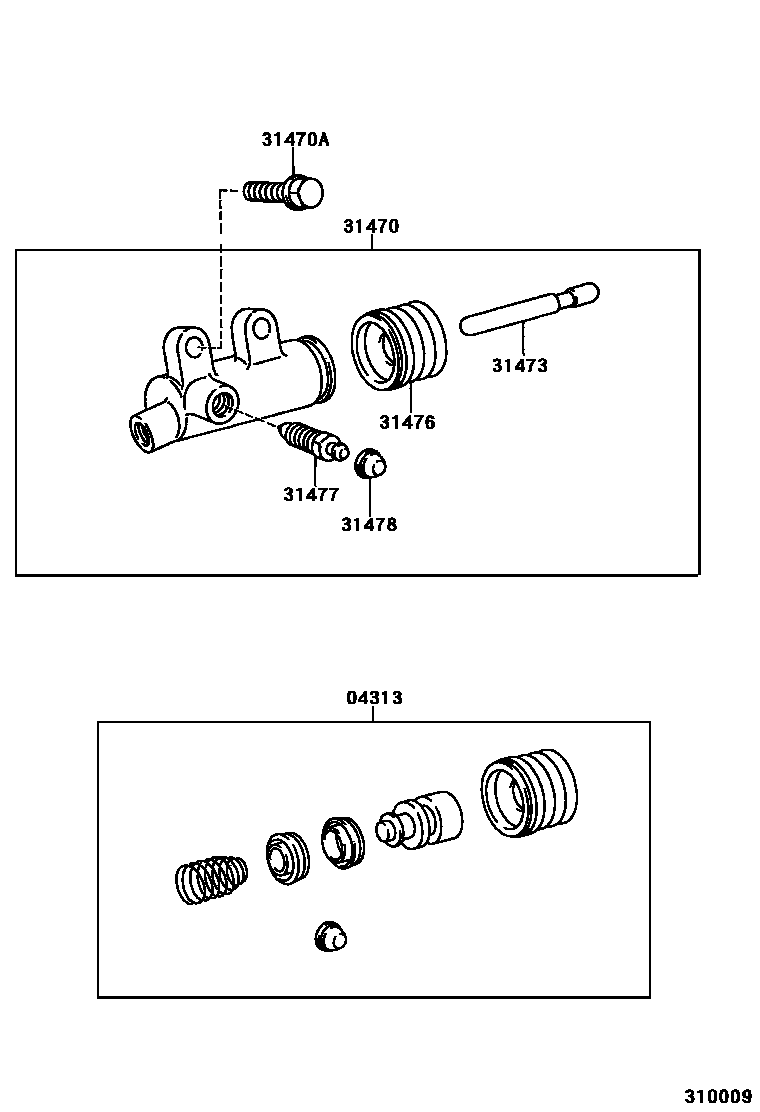

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRZJ90..GX;RZJ9#..CBR;LJ9#,VZJ9#..MTM;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200808

main04313-18020iKZJ9#199604-200105

main04313-35060iKZJ95..MTM200105-200209

main04313-52020iRZJ90200808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30222iLJ9#199604-200209

main31470-35120iVZJ9#..MTM199604-199910

main31470-35130iRZJ9#..MTM199604-200808

main31470-35140iKZJ9#199604-200209

main31470-43010iRZJ90200808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iVZJ9#..MTM199604-199809

*8-1.25PX20-20

main91611-60825iKZJ9#,LJ9#,RZJ9#..MTM199604-199809

*8-1.25PX25-25

main91611-B0825iRZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199809-200209

*8-1.25PX25-25

main91611-G0820iKZJ9#,VZJ9#..MTM199809-199910

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iRZJ90200808

main31473-32010iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200808

main31473-35050iLJ9#,VZJ9#..MTM199604-199910

main31473-60141iKZJ9#199604-200105

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

7 parts on this diagram · 3 diagrams in section
