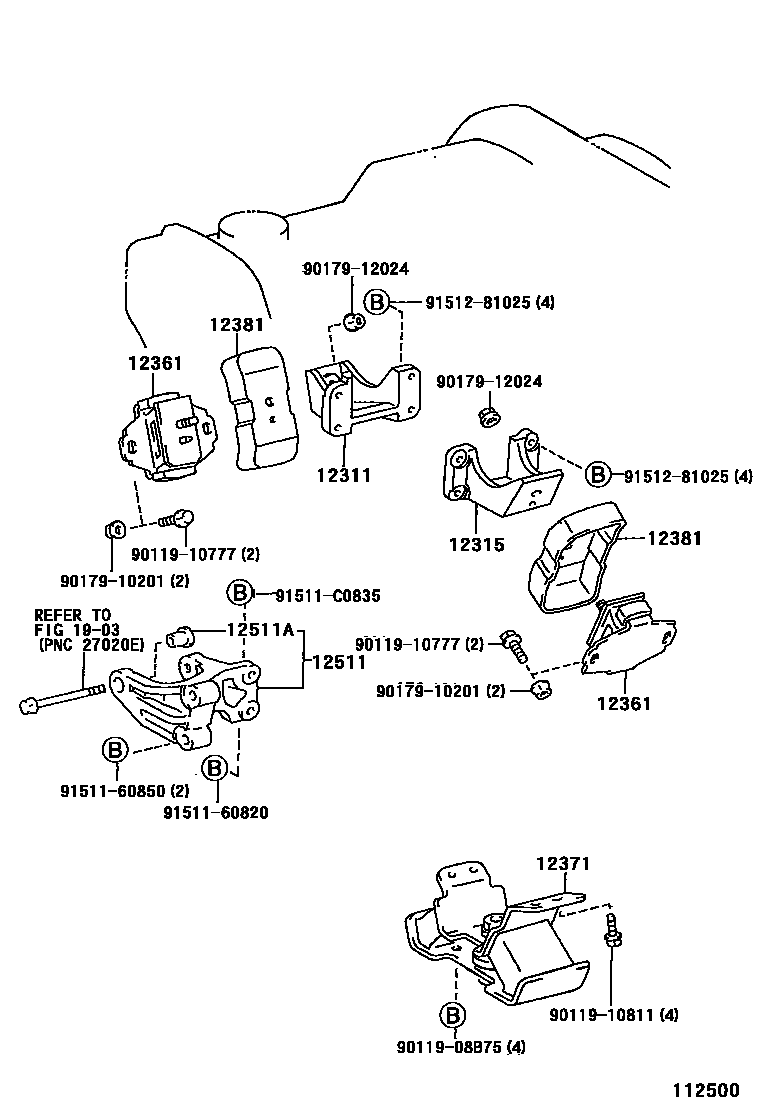

Toyota LAND CRUISER 90 — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12511BRACKET, ALTERNATOR, NO.1
12511ABUSH, ALTERNATOR BRACKET
1903ALTERNATOR
9011908B75
9011910777
9011910811
9017910201
9017912024
9151160820
9151160850
91511C0835
9151281025
17 parts on this diagram · 5 diagrams in section
MOUNTING for Toyota LAND CRUISER 90
This section contains 32 genuine Toyota parts for the MOUNTING system of the Toyota LAND CRUISER 90. Key components include: PLATE, OIL BAFFLE, BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
