ENGINE OVERHAUL GASKET KIT

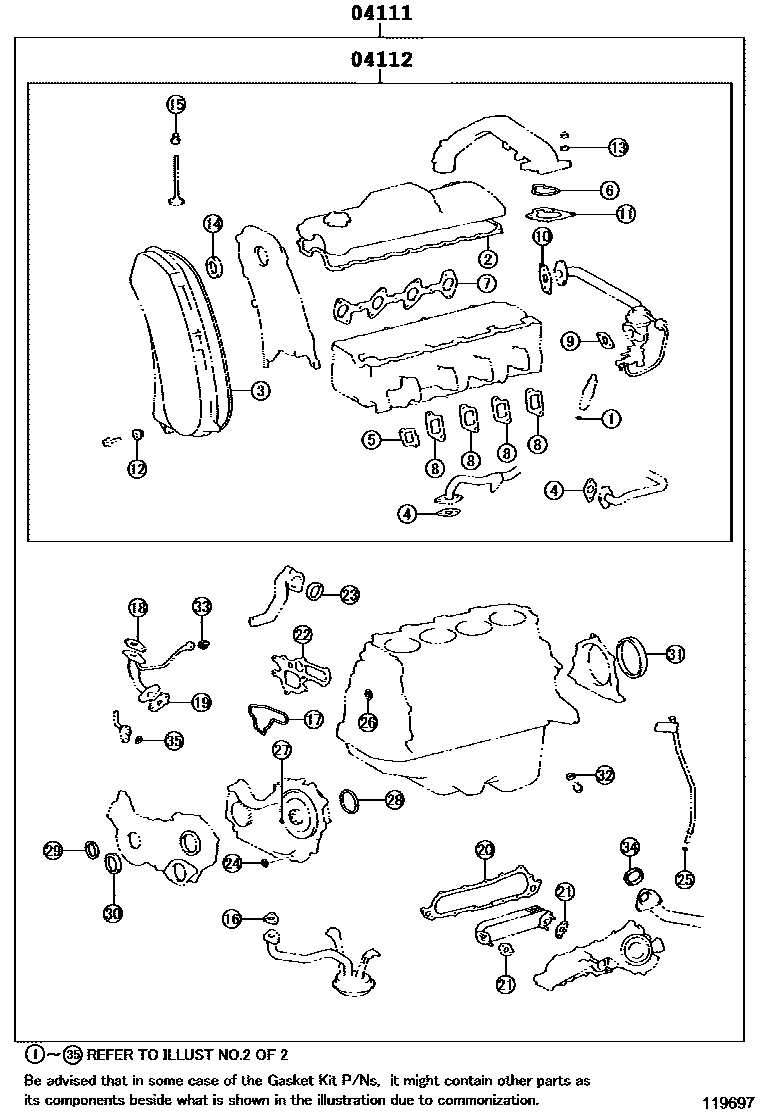

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-54093i199604-199705

main04111-54094i199705-199906

main04111-54320i199906-200008

main04111-54321i200008-200209

main04111-62080i199604-199608

main04111-62081i199608-199901

main04111-62130i199906-200402

main04111-62230i200402-200712

main04111-62231i200801-200812

main04111-67020i199604-199607

main04111-67022i199607-199805

main04111-67024i199906-200002

main04111-67025i200002-200209

main04111-67040i199909-200002

main04111-67041i200002-200209

main04111-75060i199604-199906

main04111-75100i199906-199910

main04111-75161i200001-200009

CHINA SPEC

main04111-75162i200009-200312

CHINA OEM SPEC;PNC 17177 = TYPE B:FIG.17-01;CHINA SPEC

main04111-75210i199906-200009

main04111-75211i200009-200402

main04111-75220i199906-200009

main04111-75221i200009-200312

PNC 17177 = TYPE A:FIG.17-01

main04111-75470i200402-200412

main04111-75490i200402-200812

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54071i199604-199705

main04112-54072i199705-199906

main04112-54260i199906-200008

main04112-54261i200008-200209

main04112-62070i199604-199608

main04112-62071i199608-199901

main04112-62110i199906-200402

main04112-62200i200402-200712

main04112-62201i200801-200812

main04112-67020i199604-199607

main04112-67021i199906-200002

main04112-67022i200002-200209

main04112-67040i199909-200002

main04112-67041i200002-200209

main04112-75060i199604-199906

main04112-75100i199906-199910

main04112-75161i199906-200402

main04112-75210i199906-200402

main04112-75450i200402-200412

main04112-75470i200402-200812

2 parts on this diagram · 18 diagrams in section
