SHORT BLOCK ASSEMBLY

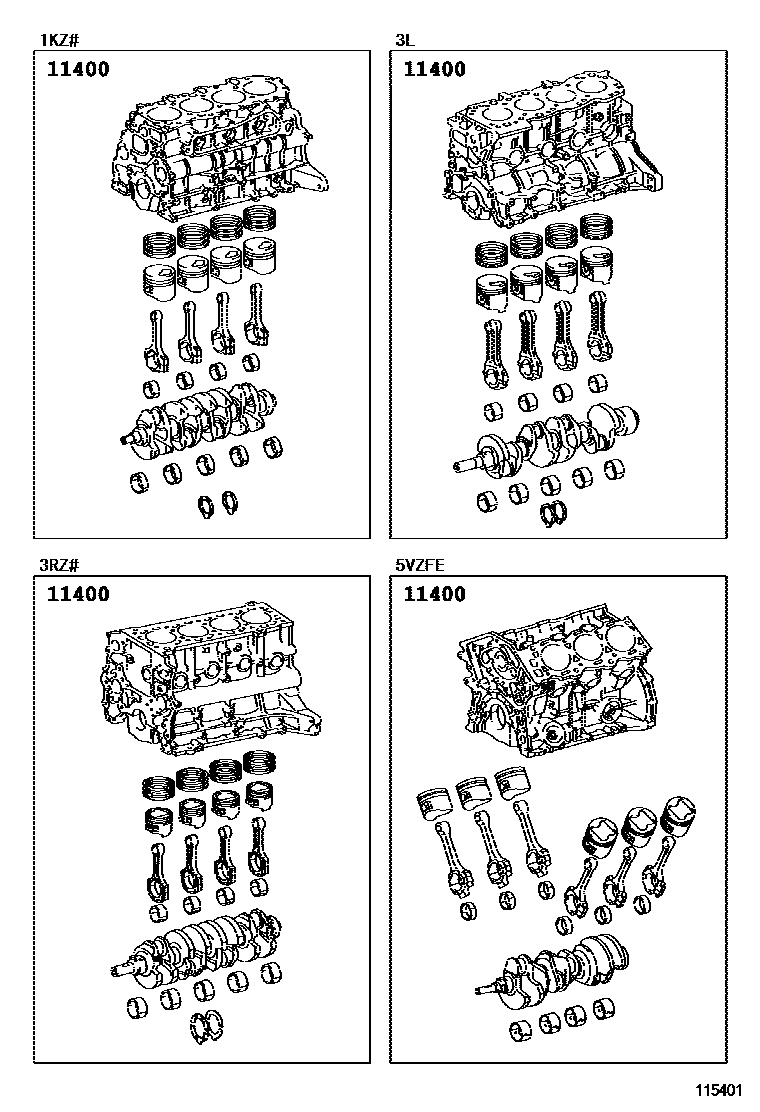

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54120i199604-199906

main11400-62080i199604-199608

main11400-62081i199608-199705

main11400-62082i199705-199901

main11400-62091i199608-199705

main11400-62092i199705-199901

LEADED GASOLINE SPEC

main11400-62110i200108-200209

SAUDI ARABIA SPEC

main11400-62120i199906-200008

LEADED GASOLINE SPEC

main11400-62211i200607-200812

main11400-62220i200402-200607

main11400-67030i199604-199608

main11400-67041i200005-200008

main11400-67050i199909-200005

main11400-67051i200008-200209

main11400-69035i199608-199906

main11400-75050i199604-199906

main11400-75060i199604-199804

main11400-75061i200108-200312

SAUDI ARABIA SPEC

main11400-75120i200209-200312

main11400-75250i200402-200403

1 parts on this diagram · 1 diagram in section
