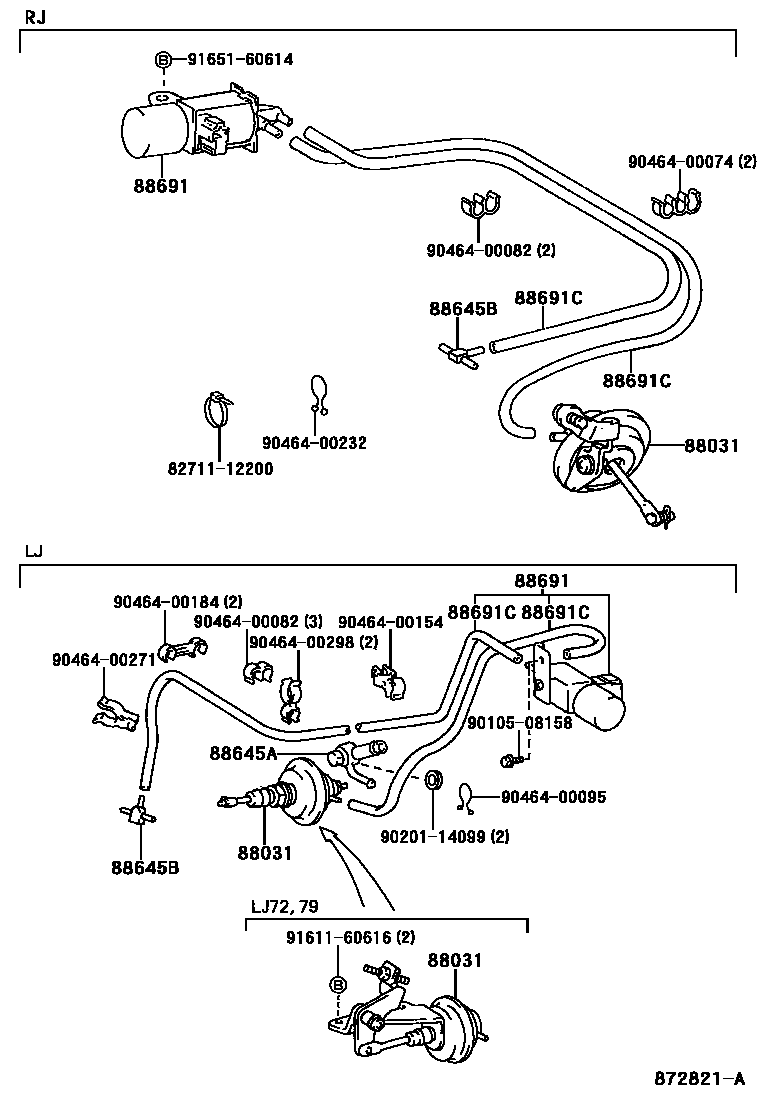

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1MAKER OPTION 0002 1 0004 1 0005 1

88031ACTUATOR SET, IDLE-UP

main88031-12150iHZJ78..LHD200010-200101

W(EGR)

main88031-25020iLJ7#..LHD199305-199604

COLD SPEC

main88031-30060iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199401-199908

main88031-30070iHZJ78..LHD200101-200207

W(EGR)

main88031-35090iRJ70..ARL199001-199108

main88031-60020iFJ7#..ARL,GCC,GEN199001-199201

88645AUNION (FOR IDLE UP DEVICE)

main90405-09142iHZJ78..LX;HZJ79..ARL..CBU199908-200108

main90405-09144iLJ70..ARL199001-199208

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iLJ7#;RJ77..GCC;FJ7#,RJ70..ARL199001-199305

main90413-04005iKZJ7#199305-199604

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-60060iLJ7#199001-199305

main88690-60070iHZJ70..LHD;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..HT..GEN;HZJ75..LHD..PIC..GEN..CBU; HZJ70..RHD..HT199501-199908

W(CUT SYSTEM)

main88690-60080iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199501-200007

BANGLADESH SPEC

main88690-60110iPZJ70,73..ARL199001-199108

main88690-90K01iFJ7#..ARL199001-199208

main88691-60020iHZJ7#..ARL199305-199501

main88691-90K01iFJ7#..GEN..CBU199201-199208

main88691-90K02iRJ7#;FJ75..RHD..HT..GEN199004-199305

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-60010iLJ7#..GEN199001-199305

L=1300

main90999-92002iRJ77..GCC199004-199305

*H,L=150,MARK=#0

main90999-92003iRJ7#..GEN199401-199604

*H,L=570,MARK=#*

main90999-92004iHZJ7#..ARL,GCC,GEN199401-199501

*H,L=800,MARK=#0

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010508158

main90105-08158

9020114099

main90201-14099

9046400074

main90464-00074

9046400082

main90464-00082

9046400095

main90464-00095

9046400154

main90464-00154

9046400184

main90464-00184

9046400232

main90464-00232

9046400271

main90464-00271

9046400298

main90464-00298

9161160616

main91611-60616

9165160614

main91651-60614

18 parts on this diagram · 4 diagrams in section
