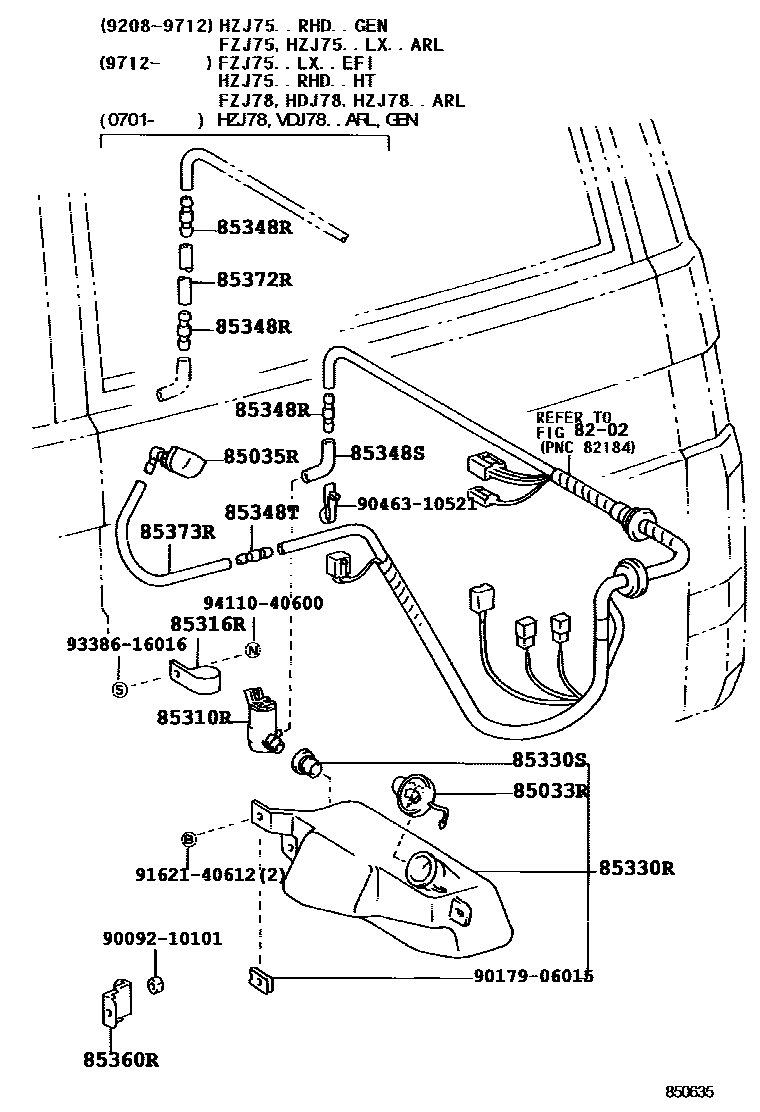

REAR WASHER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85033-36120iFZJ71..LHD..GEN199908-200808

main85332-20050iLJ77,79,RJ77199004-199305

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-90K02iFZJ75,HZJ75..LX..ARL;FJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70..HT199001-199305

main85391-60030iLJ77,79,RJ77199004-199305

main85391-60031iKZJ77,LJ79,RJ77199305-199604

main85391-60040iPZJ70..HT199305-199401

85310RMOTOR ASSY, REAR WASHER

main85310-22080iFZJ73200207-200405

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010iFZJ70..HT..CBR;FZJ75,HZJ75..LX..ARL;FZJ70,78,HZJ70,78..ARL;FJ70,73,FZJ71,73,74,HDJ78,HZJ71,73,LJ70,72,PZJ70,73,RJ70..HT199001-200207

85330RJAR ASSY, REAR WASHER

main85325-60040iLJ79..RHD..LX; LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199305-199604

W(REAR WIPER)

main85330-90K03iFZJ70,HZJ70..ARL199305-199501

main85330-90K09iHZJ78..GEN200207-200701

85330SBUSH, REAR WASHER JAR

main90099-32089iFZJ73..STD..GEN..CBR; FZJ75,HZJ75..LX..ARL;FZJ70,73,HZJ70..HT..(GCC,GEN)199305-199908

COLOMBIA SPEC

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iFZJ75,HZJ75..LX..ARL;FZJ78,HDJ78,HZJ78..ARL199208-200207

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iFZJ70..HT..CBR;FZJ75,HZJ75..LX..ARL;FZJ70,78,HZJ70,78..ARL;FJ70,73,FZJ71,73,74,HDJ78,HZJ71,73,LJ70,72,PZJ70,73,RJ70..HT199001-200207

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iFZJ71..RHD;FZJ74,HDJ78,HZJ71..HT;FZJ71,HZJ78..STD..(ARL,GCC)199908-200701

85360RBRACKET ASSY, REAR WASHER

main85361-90K01iFZJ75,HZJ75..LX..ARL199305-199711

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06013iHZJ78..GEN200207-200701

L=1000(*H,L=450)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iFZJ71..LHD..GEN199908-200808

L=1450(*H,L=230)

main90446-06013iFJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT199001-199201

L=1000(*H,L=230)

9009210101

main90092-10101

9017906015

main90179-06015

9046310521

main90463-10521

9162140612

main91621-40612

9338616016

main93386-16016

9411040600

main94110-40600

19 parts on this diagram · 2 diagrams in section
