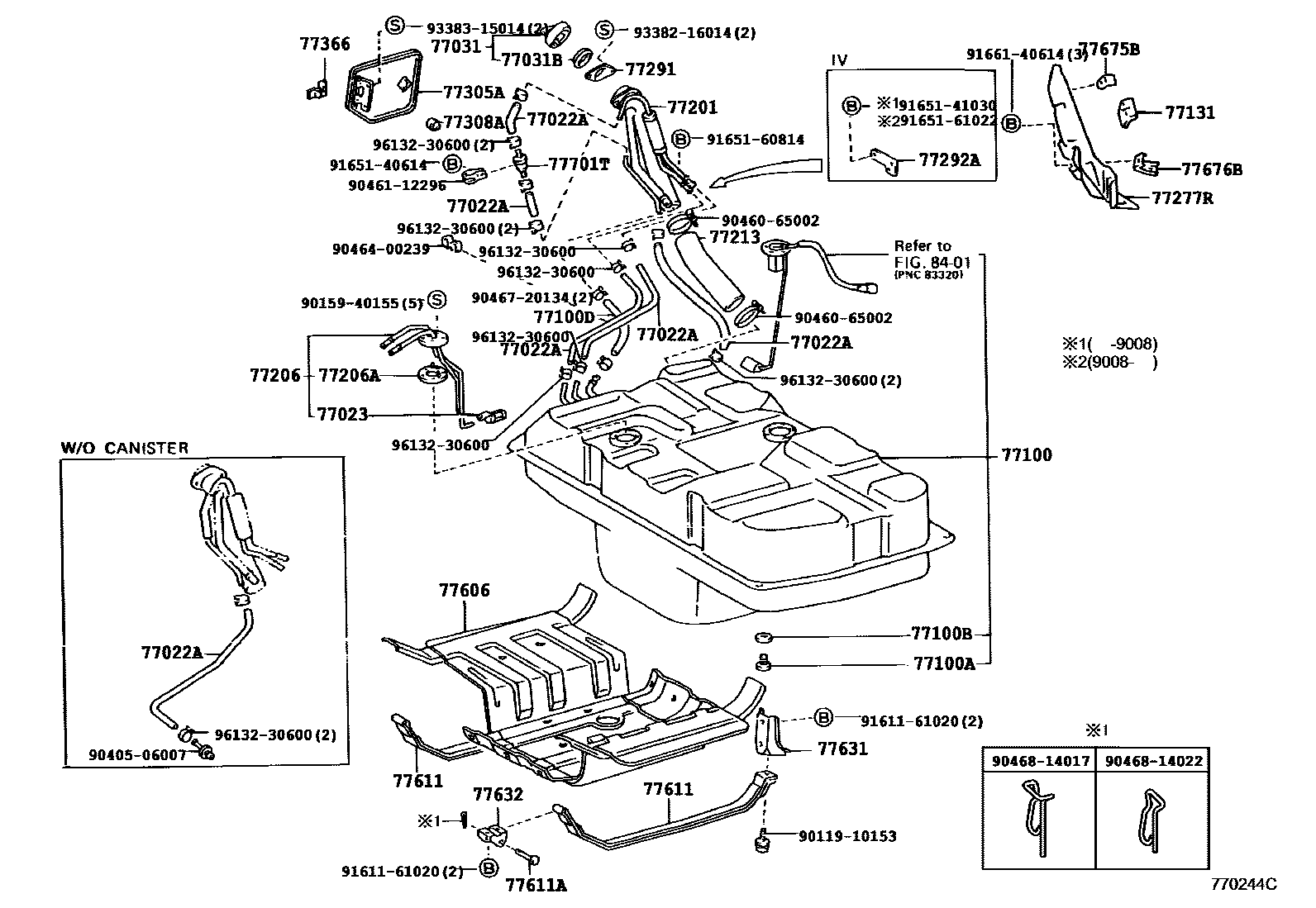

FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TANK 0011 1FUEL TANK 0012 1FUEL SUB TANK 0018 1FUEL SUB TANK 0019 1FUEL SUB TANK 0020 1FUEL TUBE 0021 1FUEL TUBE 0022 1FUEL TUBE 0023 1FUEL TUBE 0024 1FUEL TUBE 0025 1FUEL TUBE 0027 1FUEL TUBE 0028 1FUEL TUBE 0029 1FUEL TUBE 0030 1FUEL TUBE 0031 1FUEL TUBE W(FUEL SUB TANK) 0032 1FUEL TUBE 0033 1FUEL TUBE 0034 1FUEL TUBE W(FUEL SUB TANK) 0035 1FUEL TUBE 0036 1FUEL TUBE W(FUEL SUB TANK) 0037 1FUEL TUBE 0038 1FUEL TUBE 0039 1FUEL TUBE 0042 1FUEL TUBE 0044 1CHINA SPEC 0046 1FUEL TUBE 0047 1FUEL TUBE 0048 1FUEL TUBE W(FUEL SUB TANK) 0049 1FUEL TUBE 0050 1FUEL TUBE 0051 1FUEL TUBE W(FUEL SUB TANK) 0052 1FUEL TUBE 0053 1FUEL TUBE W(CHARCOAL CANISTER0054 1FUEL TUBE 0055 1FUEL TUBE W(FUEL SUB TANK) 0056 1FUEL TUBE W(CHARCOAL CANISTER0057 1W(CHARCOAL CANISTER & SUB TAN0058 1FUEL TUBE 0059 1FUEL TUBE 0061 1FUEL TUBE 0062 1FUEL TUBE W(FUEL SUB TANK) 0063 1FUEL TUBE 0064 1FUEL TUBE W(FUEL SUB TANK) 0065 1AUXILIARY FUEL TANK

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77249-60090iHZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79199201-200808

L=60

main77259-60170iFZJ75..EFI199305-199308

L=260,W(FUEL SUB TANK)

main77259-60170iFZJ75..EFI199208-199305

L=260,W(FUEL SUB TANK),MAIN-TANK

main90447-12081iFJ75..ARL,GCC199001-199208

L=260

main90447-12104iPZJ75..5F199001-200007

L=540,W(FUEL SUB TANK)

main90447-12105iFJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-200007

L=450,W(FUEL SUB TANK)

main90447-12106iPZJ75..5F199001-200007

L=670,W(FUEL SUB TANK)

main90447-12122iHZJ70,PZJ70,73199108-199305

L=200,ID=6.0

main90447-17005iHZJ70,PZJ70,73199108-199305

L=200,ID=9.5

main95333-06010iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199202-199908

L=100(*H,L=90)

main95333-06010iFZJ75,HZJ75,PZJ75..HT199201-200007

L=100(*H,L=80),W(FUEL SUB TANK)

main95333-06010iFJ75..GEN..CBU;FZJ75,HZJ75,PZJ75..HT199001-199302

*H,L=80,W(FUEL SUB TANK)

main95333-06010iHZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN199001-199201

*H,L=80

main95333-06010iHZJ70,LJ70;FJ70,73,FZJ70,73,LJ72,77,79,PZJ70,73,RJ7#..GEN199201-199208

L=100(*H,L=80)

main95333-06020iFZJ75,HZJ75,PZJ75..ARL,GCC,GEN199201-199908

L=200(*H,L=150)

sub95337-06020

main95333-06020iFJ75..ARL,GCC199001-199003

L=200(*H,L=130),W(FUEL SUB TANK)

sub95337-06020

main95333-06020iHZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN199001-199201

*H,L=150

sub95337-06020

main95333-06020iHZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN199001-199201

*H,L=150,W(FUEL SUB TANK)

sub95337-06020

main95333-06020iFJ75..ARL,GCC199003-199208

L=200(*H,L=140),W(FUEL SUB TANK)

sub95337-06020

main95333-06020iFJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-200007

L=200(*H,L=190),W(FUEL SUB TANK)

sub95337-06020

main95333-06020iHZJ70,LJ70;FJ70,73,FZJ70,73,LJ72,77,79,PZJ70,73,RJ7#..GEN199201-199908

L=200(*H,L=150),W(FUEL SUB TANK)

sub95337-06020

main95333-06020iFZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7#199208-200106

L=200(*H,L=170)

sub95337-06020

main95333-06020iFJ75..HT..GEN;FZJ75,HZJ75,PZJ75..HT199001-199305

L=200(*H,L=180),W(FUEL SUB TANK)

sub95337-06020

main95333-06020iHZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN199908

L=200

sub95337-06020

main95333-06030iFZJ75..ARL..IV;PZJ75..PIC..4F;FZJ75,HZJ75..PIC..(ARL,GCC,GEN)..(CBR,DSL)199001-200007

L=300(*H,L=220),W(FUEL SUB TANK)

sub95338-06030

main95333-06030iFJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#199001-200106

L=300(*H,L=220)

sub95338-06030

main95333-06030iHZJ70..HT;FZJ73..CBR;FZJ70,KZJ7#,LJ7#,PZJ70,73,RJ7#199208-200106

L=300

sub95338-06030

main95333-06030iFJ70,73,RJ7#..ARL,GCC199001-199201

*H,L=280,W(FUEL SUB TANK)

sub95338-06030

main95333-06030iFJ70,73,RJ7#..ARL,GCC199001-200007

*H,L=280

sub95338-06030

main95333-06030iFJ70,73,FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7#199201-199305

L=300(*H,L=280)

sub95338-06030

main95333-06030iFZJ75..ARL..IV;PZJ75..PIC..4F;FZJ75,HZJ75..PIC..(ARL,GCC,GEN)..(CBR,DSL)199201-200007

L=300(*H,L=280),W(FUEL SUB TANK)

sub95338-06030

main95333-06040iFJ75,PZJ75..PIC..GEN;FZJ75,HZJ75..PIC..(ARL,GCC,GEN)199001-200007

L=400(*H,L=380),W(FUEL SUB TANK)

main95333-06060iFJ75199001-199208

L=600(*H,L=420)

main95333-06060iFJ75199201-199208

L=600(*H,L=550)

main95333-06060iFJ75,HJ75,HZJ75,PZJ75199001-199201

*H,L=550

main95333-08020iFZJ75..CBU..EFI199305-199908

L=200(*H,L=170)

sub95337-08020

main95333-08020iFZJ75..CBU..EFI199208-199305

L=200(*H,L=170),W(FUEL SUB TANK),SUB-TANK

sub95337-08020

main95333-08030iFZJ75..ARL..IV199305-199908

L=300,W(FUEL SUB TANK)

main95333-08030iFZJ75..IV..EFI199208-199305

L=300,W(FUEL SUB TANK),SUB-TANK

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12031iFJ75..ARL,GCC,GEN199005-199108

W(FUEL SUB TANK)

main77023-12031iFJ7#,HJ75;FZJ75..EFI199005-199908

main77023-12050iRJ7#..HT199001-199604

main77023-22040iFJ7#,HJ75,LJ7#199001-199005

W(FUEL SUB TANK)

main77023-22040iLJ7#199005-199305

main77023-36010iHZJ71199108-200701

main77023-36010iHZJ75..GEN199001-200207

W(FUEL SUB TANK)

main77023-60010iHDJ7#200108-200701

W(FUEL SUB TANK)

main77023-60020iFZJ70..HT..CBR;FZJ75..LHD..IV..CBR;FZJ73,75..(GCC,GEN)..CBU..CBR199201-199911

77031CAP ASSY, FUEL TANK

main77310-12100iFJ75..ARL..CBU199001-199201

W(FUEL SUB TANK)

main77310-12150iHZJ71,78..STD199803-200701

MATERIAL=PLASTIC

main77310-12150iHZJ78..LX199803-200701

W(FUEL SUB TANK)

main77310-12150iHDJ78200108-200701

main77310-35061iHZJ7#,LJ7#,PZJ7#..HT,SOT199001-199201

W(FUEL SUB TANK)

main77310-35070iFZJ70..SOT199305-199604

sub77310-48010

main77310-35070iFZJ75..HT..CBR199201-199803

W(FUEL SUB TANK)

sub77310-48010

main77310-35080iFZJ75..CBU..EFI199201-199803

W(FUEL SUB TANK)

sub77310-12140

main77310-35080iFZJ70..EFI199305-199501

sub77310-12140

main77310-35110iHZJ75,PZJ75..HT;HZJ75..STD..GCC199201-199803

W(FUEL SUB TANK)

sub77310-12150

main77310-35110iKZJ7#,LJ7#199305-199803

sub77310-12150

main77310-48010iFZJ75..HT..CBR199803-200808

W(FUEL SUB TANK)

main77310-48010iFZJ70,75..GEN..CBU..EFI199803-200405

main77310-48020iFZJ75..CBU..EFI199803-199908

W(FUEL SUB TANK)

main77310-55080iHZJ79..GCC,GEN199001-200002

W(FUEL SUB TANK)

sub77310-60100

main77310-55080iPZJ75..5F199305-199908

sub77310-60100

main77310-60051iFZJ75..RHD..IV..CBR199108-199908

MATERIAL=METAL

sub77310-60090

main77310-60051iFZJ75..RHD..IV..CBR199001-200002

W(FUEL SUB TANK)

sub77310-60090

main77310-60090iFZJ79..GCC,GEN200002-200808

W(FUEL SUB TANK)

main77310-60100iHZJ79..GCC,GEN200002-200701

W(FUEL SUB TANK)

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iFJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

W(FUEL SUB TANK)

main77316-12050iFZJ75,HZJ75..SA199908-199911

main77316-16010iHDJ78200108-200701

main77316-16010iHZJ75..STD..GCC;FZJ70,75,HZJ70..ARL..CBU;FJ7#,FZJ70,73,75,HDJ78,HZJ75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(CBR,DSL,TD,TDEFI)199201-200808

W(FUEL SUB TANK)

main77316-16010iHZJ78..ARL,GEN;FZJ71,74,78,HZJ71199305-200808

MATERIAL OF PNC77031=PLASTIC

main77316-27010iFZJ75..PIC..CBU;FZJ75..LHD..IV..CBR;HZJ75..PIC..(GCC,GEN,SA)199001-200002

MATERIAL OF PNC77031=METAL

main77316-27010iFJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199001-199908

W(FUEL SUB TANK)

main77316-27010iFZJ79,HZJ79..GCC,GEN199908-200002

W(SUB FUEL TANK)

77100TANK ASSY, FUEL

main77001-60520iFZJ71,74199908-200512

sub77001-60521

main77001-60521iFZJ71..LHD..GEN200601-200808

sub77001-60522

main77001-60530iHZJ70199908-200302

sub77001-60580

main77001-60531iHZJ71200601-200701

sub77001-60532

main77001-60540iFZJ78,79199908-200512

SUB TANK

sub77001-60541

main77001-60541iFZJ79..GEN..IV;FZJ78..LHD..GEN200601-200808

SUB TANK

sub77001-60542

main77001-60550iHDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200512

SUB TANK

sub77001-60551

main77001-60551iHDJ7#,HZJ78,79200601-200701

SUB TANK

sub77001-60552

main77001-60560iFZJ78,79199908

sub77001-60561

main77001-60560iFZJ78,79199908-200512

MAIN TANK

sub77001-60561

main77001-60561iFZJ78,79..ARL200601-200808

MAIN TANK

main77001-60570iHDJ7#,HZJ78,79200108-200512

MAIN TANK

sub77001-60740

main77001-60570iHDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200512

sub77001-60740

main77001-60580iHZJ71199908-200512

sub77001-60531

main77001-60740iHDJ7#,HZJ78,79200601-200701

MAIN TANK

sub77001-60781

main77001-60920iFZJ75..IV199909-200405

main77100-60240iFJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-199108

SUB TANK

sub77001-60910

sub83320-69025

main77100-60280iFJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#199001-199108

sub77001-60914

sub83320-69025

main77100-60300iFJ75,HJ75,HZJ75,PZJ75199001-199108

MAIN TANK

sub77001-60918

sub83320-69035

main77100-60720iFZJ70..EFI199208-199501

sub77001-60911

sub23206-66050

sub23217-50061

sub23221-50060

sub23229-16010

sub23239-11010

sub23249-74610

sub77169-14010

sub83320-69115

sub90159-50219

sub90467-12067

sub90480-01303

sub90949-01182

sub94110-40800

sub94611-10800

main77100-60730iFZJ75..EFI199208-199307

sub77100-60731

main77100-60731iFZJ75..ARL199307-199908

main77100-60740iFZJ75..EFI199208-199307

MAIN TANK

sub77100-60741

main77100-60741iFZJ75..ARL199307-199908

MAIN-TANK

sub77001-60915

sub23206-66070

sub23217-50061

sub23221-50060

sub23229-16010

sub23239-11010

sub23249-74610

sub77026-60080

sub77169-20040

sub77380-26010

sub77420-26010

sub83320-69185

sub90119-06347

sub90159-50219

sub90179-05042

sub90464-00156

sub90467-12067

sub93319-A4010

main77100-60905iFZJ70,73..CBR199208-199908

sub77001-60912

sub83320-80223

main77100-60907iHZJ75..GEN199108-200007

SUB TANK

main77100-60907iFZJ75..LHD..IV..CBR;FZJ75..(GCC,GEN)..CBU199201-199801

SUB-TANK

main77100-60908iFJ70,73,FZJ70,73,HZJ70,LJ7#,PZJ70,73,RJ7#199108-199208

sub77001-60914

sub83320-80223

main77100-60909iFJ75199108-199208

MAIN TANK

sub77001-60918

sub83320-80224

main77100-60910iFZJ75..GEN199201-199208

MAIN TANK

sub77001-60916

sub77026-60070

sub77380-26010

sub77420-26010

sub83320-80225

sub90119-06347

sub90159-40155

sub90179-05042

main77100-60910iFZJ75..GEN199201-199208

MAIN-TANK

sub77001-60916

sub77026-60070

sub77380-26010

sub77420-26010

sub83320-80225

sub90119-06347

sub90159-40155

sub90179-05042

main77100-60913iFZJ75..GCC199201-199208

MAIN-TANK

sub77001-60916

sub77026-60080

sub77380-26010

sub77420-26010

sub83320-80225

sub90119-06347

sub90159-40155

sub90179-05042

main77100-60916iFZJ75..EFI199208-199801

SUB TANK

main77100-60917iHZJ70..GEN199208-199908

main77100-60918iHZJ75,PZJ75..ARL,GCC,GEN199208-199908

MAIN TANK

main77100-60918iPZJ75..5F199305-199908

main77100-60919iLJ7#199208-199305

sub77100-60917

main77100-60920iRJ70..SOT199208-199604

main77100-60921iFZJ75..RHD..IV..CBR199208-199908

MAIN-TANK

main77100-60921iFZJ75..SA199305-199909

main77100-60922iFZJ75..GCC199208-199908

MAIN-TANK

main77100-60922iFZJ75..LHD..GEN..CBU199603-199908

CHAINA SPEC,MAIN-TANK

77100APLUG(FOR FUEL TANK)

main90105-12116iFZJ75..IV199908-200808

W(FUEL SUB TANK)

main90341-20004iKZJ7#,LJ7#,RJ7#..HT199001-200808

77100BGASKET(FOR FUEL TANK)

main90430-12245iHZJ75..GEN199908-200808

W(FUEL SUB TANK)

main90430-12245iHZJ78,79..GCC,GEN200207-200701

main90430-20007iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200808

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22002iFJ75,HZJ75,PZJ75..HT199001-199208

L=200,MAIN TANK

main90445-22002iFJ75,HJ75,HZJ75,PZJ75199001-199201

L=200

main90445-22024iHDJ78200108

L=385,W(FUEL SUB TANK),SUB TANK

main90445-22024iHDJ78200108

L=220,W(FUEL SUB TANK),SUB TANK

main90445-22024iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199108-199401

L=385

main90445-22024iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199001-200808

L=220

main90445-22024iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199201-200808

L=220,W(FUEL SUB TANK)

main90445-22024iFJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199001-199208

L=385,SUB TANK

main90445-22024iFJ75,HZJ75,PZJ75..HT199001-199208

L=220,SUB TANK

main90445-22024iFZJ78..LHD..GEN199401-200808

L=385,W(FUEL SUB TANK)

main95311-13015iFZJ75..IV199908-200808

L=150

main95311-13022iFZJ75..CBU..EFI199201-200405

*H,L=130

77131BRACKET, FUEL TANK FILLER PIPE SUPPORT

main77131-90K00iRJ70..SOT;PZJ7#..HT,SOT199001-200808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60170iHZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN)199001-199201

main77201-60171iFJ75..GEN..CBU199201-199208

main77201-60180iHJ75,HZJ75,PZJ75..PIC;FJ75..PIC..(GCC,GEN,SA)199001-199201

MAIN TANK

main77201-60180iFJ75..GEN..IV199201-199208

main77201-60191iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)..(CBR,DSL)199305-200007

SUB-TANK

main77201-60191iHZJ75..PIC..(ARL,GCC,GEN);FJ75,FZJ75,PZJ75..PIC..(GCC,GEN)199001-199305

SUB TANK

main77201-60200iHZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,RJ70..GCC,GEN199001-199201

main77201-60201iFZJ70,73,HZJ70..CBR,DSL199201-199908

main77201-60210iFJ70,73,RJ70..ARL199001-199201

main77201-60211iFZJ70..EFI199201-200405

main77201-60230iFJ75..ARL..CBU199001-199201

main77201-60231iFJ75..ARL..CBU199201-199208

main77201-60250iFJ75..ARL..IV199001-199208

main77201-60271iFJ75..ARL..IV199001-199208

SUB TANK

main77201-60290iHZJ75,PZJ75..HT;FJ75..HT..(GCC,GEN)199001-199201

SUB TANK

main77201-60291iFJ75..GEN..CBU;FZJ75,HZJ75,PZJ75..HT..(CBR,DSL)199201-199305

SUB TANK

main77201-60291iPZJ75..HT199305-199908

SUB-TANK

main77201-60300iFJ75..ARL..CBU199001-199201

SUB TANK

main77201-60301iFJ75..ARL..CBU199201-199208

SUB TANK

main77201-60360iLJ77,79,RJ77199004-199201

main77201-60361iKZJ77,LJ79,RJ77199201-199604

main77201-60370iPZJ75..HT199305-199908

MAIN-TANK

main77201-60370iHDJ78,HZJ78;FZJ78..GCC,GEN199201-200808

main77201-60370iFZJ75,HZJ75,PZJ75..HT..(CBR,DSL)199201-199305

MAIN TANK

main77201-60380iHZJ75..GEN..IV;HZJ75..PIC..(ARL,GCC);HZJ75..LHD..PIC..GEN..CBU;FZJ75..PIC..(GCC,GEN)..CBR199305-200007

main77201-60380iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)..(CBR,DSL)199201-199305

MAIN TANK

main77201-60380iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)..(CBR,DSL)199305-200007

MAIN-TANK

main77201-60390iFZJ75,78..ARL..CBU199208-200605

main77201-60390iFZJ78..GCC200108-200701

SAUDI ARABIA SPEC

main77201-60390iFZJ78..LHD..GEN200010-200808

CHINA SPEC

main77201-60400iFZJ75..ARL..IV199208-200405

main77201-60410iFZJ75,78..ARL..CBU199208-200605

MAIN-TANK

main77201-60410iFZJ78..GCC200108-200701

SAUDI ARABIA SPEC & W(SUB FUEL TANK),MAIN-TANK

main77201-60410iFZJ78..LHD..GEN200010-200808

CHINA SPEC,MAIN-TANK

main77201-60420iFZJ75..IV..EFI199208-199908

MAIN-TANK

main77201-60430iFZJ75..CBU..EFI199208-199908

SUB-TANK

main77201-60440iFZJ75..ARL..IV199208-199908

SUB-TANK

main77201-60650iHDJ78,HZJ78;FZJ78..GCC,GEN199908-200808

W(FUEL SUB TANK),MAIN-TANK

main77201-60660iHDJ79,HZJ79;FZJ79..GCC,GEN199908-200808

W(FUEL SUB TANK),MAIN-TANK

main77201-60670iHDJ78200108-200701

SUB-TANK

main77201-60670iHZJ78;FZJ78..GCC,GEN199908-200808

W(FUEL SUB TANK),SUB-TANK

main77201-60670iHDJ78200108

W(FUEL SUB TANK),SUB TANK

main77201-60680iHDJ79,HZJ79;FZJ79..GCC,GEN199908-200808

W(FUEL SUB TANK),SUB-TANK

main77201-60690iFZJ71,74,HZJ71199908-200808

main77201-60710iHDJ79,HZJ79;FZJ79..GCC,GEN199908-200808

main77201-60720iFZJ79..ARL199908-200605

main77201-60720iFZJ79..GEN..IV200109-200808

VENEZUELA SPEC

main77201-60720iFZJ79..GCC200108-200701

SAUDI ARABIA SPEC

main77201-60720iFZJ79..RHD..CBU200007-200701

CHINA SPEC

main77201-60730iFZJ79..GCC200108-200701

SAUDI ARABIA SPEC & W(SUB FUEL TANK),MAIN-TANK

main77201-60730iFZJ79..RHD..CBU200007-200701

SOUTH AFRICA SPEC,MAIN-TANK

main77201-60730iFZJ79..ARL199908-200605

MAIN-TANK

main77201-60730iFZJ79..LHD..GEN..CBU200010-200701

CHINA SPEC,MAIN-TANK

main77201-60740iFZJ79..ARL199908-200605

SUB-TANK

main77201-60740iFZJ79..GCC200108-200701

SAUDI ARABIA SPEC & W(SUB FUEL TANK),SUB-TANK

main77201-60740iFZJ79..LHD..GEN..CBU200010-200701

CHINA SPEC,SUB-TANK

main77201-60740iFZJ79..RHD..CBU200007-200701

SOUTH AFRICA SPEC,SUB-TANK

main77201-60760iFZJ78..LHD..GEN200010-200808

CHINA SPEC,SUB-TANK

main77201-60760iFZJ78..GCC200108-200701

SAUDI ARABIA SPEC & W(SUB FUEL TANK),SUB-TANK

main77201-60760iFZJ78..ARL199908-200605

SUB-TANK

main77201-60770iFZJ74..STD..GEN200109-200808

SAUDI ARABIA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77240-60141iFJ75..ARL,GCC,GEN199001-199208

MAIN TANK

main77240-60170iFJ70,73199001-199208

main77240-60190iHZJ70,73,PZJ70,73199001-199908

main77240-60200iHZJ75,PZJ75..ARL,GCC,GEN199001-199201

MAIN TANK

main77240-60210iHZJ75..GEN199001-200007

SUB TANK

main77240-60210iHZJ75..LX;HZJ75..GEN..IV;HZJ75..LHD..HT199201-199908

SUB-TANK

main77240-60210iHZJ75..GEN199908-199909

main77240-60220iLJ7#199001-199305

main77240-60230iRJ7#199001-199604

main77240-60240iFJ75..ARL,GCC,GEN199001-199208

SUB TANK

main77240-60250iFZJ75..SA199305-199911

main77240-60250iFZJ75..GCC,GEN199201-199908

MAIN-TANK

main77240-60260iHZJ75..ARL,GCC,GEN199201-200007

MAIN-TANK

main77240-60260iPZJ75..5F199305-199911

main77240-60270iFZJ73..CBR;FZJ70..HT..CBR199201-199908

main77240-60280iFZJ75..RHD..IV..CBR199201-199908

SUB-TANK

main77240-60290iFZJ75..ARL199208-199908

main77240-60320iKZJ7#,LJ7#199305-199604

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14010iFZJ71,74199908-200808

SUB TANK

main77169-14020iFJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-200701

W(FUEL SUB TANK)

main77169-14020iFJ7#,HZJ75,LJ7#,PZJ7#,RJ7#199108-200701

main77169-20040iFZJ78,79199908

main77169-20040iFZJ79..CBU;FZJ78..GCC;FZJ78..RHD..GEN199908-200808

MAIN TANK

77213HOSE, FUEL TANK SUB INLET

main77213-60040iFZJ70..SOT;FZJ70,HZJ70..ARL199001-200405

main77213-60050iFJ75,HZJ75,PZJ75..HT199001-199208

MAIN TANK

main77213-60050iFJ75,FZJ75,HZJ75,PZJ75..HT199001-200106

main77213-60050iFZJ75,HZJ75..HT199305-199908

MAIN-TANK

main77213-60061iFJ75..CBU199001-199208

SUB TANK

main77213-60061iFZJ75,HZJ75..HT199305-199908

SUB-TANK

main77213-60061iFZJ75,HZJ75,PZJ75..HT199201-199305

W(FUEL SUB TANK)

main77213-60070iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199305-199909

MAIN-TANK

main77213-60070iFJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199001-199208

MAIN TANK

main77213-60070iFJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC199001-199909

main77213-60081iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199305-200007

SUB-TANK

main77213-60081iFZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199108-199305

W(FUEL SUB TANK)

main77213-60081iFJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)199001-199208

SUB TANK

main77213-60100iKZJ77,LJ79,RJ77199004-199604

sub77213-60170

main77213-60160iFZJ71,74,HZJ71199908-200808

main77213-60180iFZJ78..LHD..GEN199908-200808

sub77213-60540

main77213-60190iHZJ78..STD;FZJ78..GCC;FZJ78..RHD..GEN199908-200808

SUB FUEL TANK

sub77213-60550

main77213-60190iHDJ78200108

SUB TANK

sub77213-60550

main77213-60200iFZJ79..ARL199908-200808

sub77213-60560

main77213-60210iFZJ79..CBU;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200808

SUB FUEL TANK

main77213-60210iHDJ79200108

SUB TANK

77277TUBE, FUEL RETURN, NO.1

main77257-60051iHZJ7#,PZJ7#199001-200007

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-90K01iFZJ70..GEN..EFI199001-200808

77291PACKING, FUEL TANK SUPPORT, UPPER

main77293-60030iFJ75,HJ75,HZJ75,PZJ75199001-200405

main77293-60030iHZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..PIC..(ARL,GEN)..(DSL,EFI);FJ75,FZJ79,HDJ79,HZJ79,PZJ75..PIC..(ARL,GCC,GEN)199001-200808

W(FUEL SUB TANK)

main77293-60060iPZJ75..HT199201-200106

77292ASTAY, FUEL TANK FILLAR UPPER PIPE

main77292-60010iHDJ79,HZJ79..IV199305-200701

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-90K00iFZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN)199001-199908

SUB TANK

main77305-90K00iHZJ70..SOT199305-200808

main77305-90K00iHZJ78..LX199908-200701

NO.1

main77305-90K01iFZJ78..LHD..GEN199305-200808

main77305-90K01iHZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT199001

MAIN TANK

main77305-90K01iHZJ78..LX199908-200701

NO.2

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05018iHZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200701

W(FUEL SUB TANK)

main90541-05018iFZJ70..SOT;FZJ70,HZJ70..ARL199305-200808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iFZJ75,HZJ75..HT199001-200701

W(FUEL SUB TANK)

main77366-12010iHZJ70..SOT199305-200808

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60030iHZJ70..SOT199305-200405

main77606-60030iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..HT..GEN;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU199001-200808

SUB TANK

main77606-60041iFJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-199208

MAIN TANK

main77606-60060iHZJ75..RHD..PIC..GEN..CBU199305-200405

main77606-60060iFZJ75,HZJ75;FJ75,PZJ75..GEN199201-200007

MAIN TANK

main77606-60130iHZJ78..LX;HZJ79..ARL..CBU199908-200808

W(FUEL SUB TANK),MAIN TANK

77611BAND, FUEL TANK

main77601-60081iPZJ70,73;RJ70..SOT199001-200405

main77601-60101iFJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-199201

MAIN TANK

main77601-60101iFJ75..ARL199201-199208

main77601-60131iFJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN199001-200007

SUB TANK

main77601-60160iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..HT..GEN;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU199201-200007

MAIN TANK, RH

main77601-60160iFZJ75,PZJ75..RHD..GEN..IV199201-200405

RH

main77601-60190iLJ77,79,RJ77199004-199604

main77601-60230iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV199908-200808

MAIN TANK, RH,RH

main77601-60240iHZJ70199908-200808

main77601-60260iHZJ78..LX;HZJ79..ARL..CBU199908-200206

W(FUEL SUB TANK),SUB TANK

sub77601-60261

main77601-60261iFZJ78,79..ARL200206-200808

SUB TANK

main77602-60070iFZJ75,HZJ75;FJ75,PZJ75..GEN199201-200405

LH

main77602-60070iHZJ75..RHD..PIC..GEN..CBU199201-200007

MAIN TANK, LH

main77602-60100iHZJ78..LX;HZJ79..ARL..CBU199908-200808

MAIN TANK, LH,LH

77611APIN (FOR FUEL TANK BAND)

main90240-10011iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..HT..GEN;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU199001-200808

main90240-10025iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71199001-200808

main90249-14002iFZJ75..GEN..CBU..EFI199001-200405

W(FUEL SUB TANK)

main90249-14002iHZJ78..LX;HZJ79..ARL..CBU199908-200808

SUB TANK

77631BRACKET, FUEL TANK, NO.1

main77613-60090iKZJ77,LJ79,RJ77199004-199604

RH

main77614-60050iLJ77,79,RJ77199004-199604

LH

main77614-60050iHZJ70..SOT199001-200808

main77616-60050iFJ75..ARL199001-199208

main77616-60080iFZJ75,HZJ75..SA199201-200808

77632BRACKET, FUEL TANK, NO.2

main77615-60020iFJ75..ARL199001-199208

main77615-60050iFZJ75,PZJ75..RHD..GEN..IV199201-200808

main77625-60020iHZJ70..SOT199001-200808

main77625-60030iLJ77,79,RJ77199004-199604

77675BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1

main77675-90K00iHZJ78..STD;FZJ71..GCC;FZJ71..RHD;FZJ74,HDJ78,HZJ71199001-200808

77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2

main77676-90K00iRJ70..SOT;PZJ7#..HT,SOT199001-200808

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iHZJ78..LX;HZJ79..ARL..CBU199001-200808

9011910153

main90119-10153

9015940155

main90159-40155

9040506007

main90405-06007

9046065002

main90460-65002

9046112296

main90461-12296

9046400239

main90464-00239

9046720134

main90467-20134

9046814017

main90468-14017

9046814022

main90468-14022

9161161020

main91611-61020

9165140614

main91651-40614

9165141030

main91651-41030

9165160814

main91651-60814

9165161022

main91651-61022

9166140614

main91661-40614

9338216014

main93382-16014

9338315014

main93383-15014

9613230600

main96132-30600

46 parts on this diagram · 52 diagrams in section
