FRONT FENDER APRON & DASH PANEL

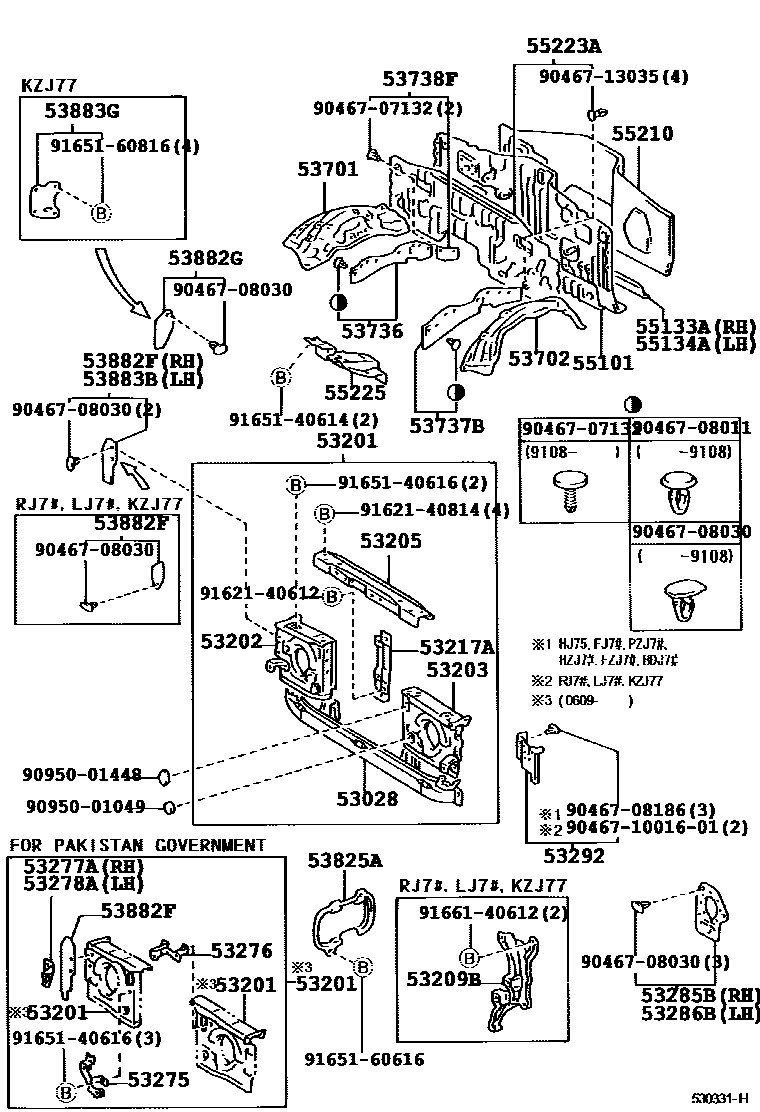

Parts diagram
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
main53028-60020i199001-199305
main53028-60021i199305-199401
main53028-60040i199908-200808
main53028-90K03i199001-199110
*GIS
53201SUPPORT SUB-ASSY, RADIATOR
main53210-60131i200402-200605
main53210-60420i200609-200611
FOR PAKISTAN GOVERNMENT
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-60040i199001-199305
main53202-60041i199305-199604
main53202-60080i199001-199110
*GIS
main53202-60110i199305-199706
main53202-60111i199706-200007
main53202-60140i199706-199711
FOR PAKISTAN GOVERNMENT
main53202-60180i200609-200611
FOR PAKISTAN GOVERNMENT
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-60040i199001-199305
main53203-60041i199305-199401
main53203-60080i199001-199110
*GIS
main53203-60100i199706-199711
FOR PAKISTAN GOVERNMENT
main53203-60110i199305-199706
main53203-60111i199908-200108
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-60020i199706-199908
main53216-60040i199001-199305
main53216-60041i199305-199604
main53216-90K02i199001-199004
*GIS
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-60020i199004-199305
53217ABRACE, HOOD LOCK SUPPORT
main53217-60060i199001-199305
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
main53275-60030i199706-199711
FOR PAKISTAN GOVERNMENT
main53275-60050i200609-200611
FOR PAKISTAN GOVERNMENT
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
main53276-60030i199706-199711
FOR PAKISTAN GOVERNMENT
main53276-60050i200609-200611
FOR PAKISTAN GOVERNMENT
53277ABRACKET, HEADLAMP DOOR MOUNTING, NO.2 RH
main53277-60010i199706-199711
FOR PAKISTAN GOVERNMENT
main53277-60020i200609-200611
FOR PAKISTAN GOVERNMENT
53278ABRACKET, HEADLAMP DOOR MOUNTING, NO.2 LH
main53278-60010i199706-199711
FOR PAKISTAN GOVERNMENT
main53278-60020i200609-200611
FOR PAKISTAN GOVERNMENT
53285BSEAL, RADIATOR SIDE AIR, NO.1
main53285-60020i199001-199004
53286BSEAL, RADIATOR SIDE AIR, NO.2
main53286-60020i199004-199305
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
main53292-60010i199305-199402
main53292-60020i199305-199402
main53292-90K00i199402-199908
main53292-90K02i199001-199305
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-60140i199001-199305
main53701-60170i199305-199604
W(*EW OR RADIO); W(*EW); W(RADIO)
main53701-60230i199001-199305
main53701-60240i199305-199604
W(RADIO)
main53701-60250i199305-199604
W(BATTERY=75D31R X 75D31L)
main53701-60280i199305-200007
main53701-60320i199001-199305
main53701-60350i199001-199108
main53701-60370i199001-199305
main53701-60410i199305-199908
main53701-60510i199305-199604
main53701-60520i199305-199604
W(RADIO)
main53701-60690i199709-200405
main53701-60730i199908-200601
W(CLUTCH BOOSTER)
main53701-60760i199908-200808
main53701-60770i199908-200601
W(AIR CONDITIONER)
main53701-60790i199908-200108
W(CLUTCH BOOSTER)
main53701-60810i199908-200701
main53701-60850i200207-200605
W(CLUTCH BOOSTER)
main53701-60860i199908-200601
main53701-60870i200408-200601
W(BATTERY=95D31R + 95D31L)
main53701-60880i199908-200601
W(AIR CONDITIONER)
main53701-60890i200601-200701
main53701-6A010i200109-200601
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC
main53701-6A020i200601-200701
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC; W(AIR CONDITIONER)
main53701-6A030i199912-200701
main53701-6A040i200207-200605
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-60210i199001-199108
main53702-60211i199305-199604
W(RADIO)
main53702-60230i199001-199305
main53702-60250i199001-199305
W(CYCLONE AIR CLEANER)
main53702-60251i199305-199604
main53702-60261i199305-199308
W(FRONT HEATER); W(FRONT OR REAR HEATER)
main53702-60340i199305-200405
main53702-60420i199001-199305
main53702-60421i199305-199604
main53702-60430i199004-199305
W(RADIO)
main53702-60431i199305-199604
W(RADIO)
main53702-60500i199201-199305
W(*EW & BATTERY=75D31R X2)
main53702-60850i199305-199911
main53702-6A040i200108-200701
main53702-6A090i200601-200605
main53702-6A120i199908-200601
W(WINCH)
main53702-6A150i199908-200601
W(AIR CONDITIONER)
main53702-6A160i199908-200601
main53702-6A200i199908-200808
main53702-6A240i200601-200701
main53702-6A260i199908-200601
W(WINCH)
main53702-6A310i199908-200701
W(AIR CONDITIONER & 2BATTERY)
main53702-6A330i199908-200601
main53702-6A360i199908-200701
W(WINCH)
main53702-90K96i199305-199401
main53702-90L15i199001-199208
main53702-90L23i199305-199911
main53702-90L41i199001-199208
main53702-90L45i199201-199305
W(75D31R X2 BATTERY)
53736SEAL, FRONT FENDER APRON, RH
main53736-60020i199001-199106
main53736-60021i199305-199604
main53736-60040i199305-199501
main53736-60090i199908-200808
main53737-60040i199006-199106
main53737-90K03i199001-199006
53737BSEAL, FRONT FENDER APRON, LH
main53737-60020i199001-199106
main53737-60021i199106-199305
main53737-60040i199305-199501
main53737-60050i199305-199401
main53737-60080i199908-200701
main53737-90K03i199001-199106
53738FSEAL, FRONT FENDER APRON
main53738-60020i199106-199201
main53738-60030i199305-199401
main53738-90K03i199001-199106
main53738-90K04i199001-199004
53825APROTECTOR, FRONT FENDER, UPPER RH
main53825-60020i199908-200605
53882FSEAL, FRONT FENDER
main53882-60020i199305-199604
main53882-60030i199305-199401
main53882-60040i200609-200611
FOR PAKISTAN GOVERNMENT
53882GSEAL, FRONT FENDER
main53882-60070i199001-199305
53883BSEAL, FRONT FENDER, LH
main53883-90K00i199001-199201
53883GSEAL, FRONT FENDER, FRONT
main53883-60020i199305-199604
55101PANEL SUB-ASSY, DASH
main55101-60250i199201-199208
W(*CLB)
main55101-6A650i199001-199305
main55101-6A651i199608-199908
main55101-6A670i199001-199305
W(*CLB)
main55101-6A690i199510-199608
W(FRONT HEATER & *AIC); W(FRONT OR REAR HEATER) & W(*AIC)
main55101-6A691i199608-199908
W(FRONT HEATER & *AIC); W(REAR HEATER & *AIC)
main55101-6A710i199305-199401
W(*CLB & *AIC & FRONT HEATER)
main55101-6A750i199305-199401
W(FRONT HEATER)
main55101-6A751i199608-199908
W(FRONT & REAR HEATER); W(FRONT HEATER)
main55101-6A800i199001-199305
W(*CLB & FRONT HEATER)
main55101-6A850i199108-199208
*EX-USSR SPEC
main55101-6A870i199208-199305
W(FRONT HEATER & *AIC) OR W(REAR HEATER & *AIC) OR *EX-USSR SPEC
main55101-6A890i199305-199401
main55101-6B020i199501-200007
W(*CLB & *AIC); W(*CLB)
main55101-6B070i199608-199908
W(FRONT & REAR HEATER); W(FRONT HEATER)
main55101-6B090i199001-199108
main55101-6B110i199001-199305
W(*CLB & FRONT HEATER); W(*CLB)
main55101-6B210i199001-199208
main55101-6B230i199004-199305
main55101-6B320i199001-199305
main55101-6C170i199201-199305
main55101-6C171i199608-199908
main55101-6C180i199305-199501
W(*AIC)
main55101-6C181i199608-199908
W(*AIC)
main55101-6C190i199201-199305
W(*CLB)
main55101-6C200i199201-199305
W(*CLB & *AIC)
main55101-6C220i199305-199501
W(FRONT HEATER)
main55101-6C221i199608-199908
W(FRONT & REAR HEATER); W(FRONT HEATER)
main55101-6C230i199305-199501
W(*CLB & FRONT HEATER)
main55101-6C240i199201-199305
W(*CLB & (FRONT & REAR HEATER))
main55101-6C250i199201-199305
main55101-6C260i199201-199305
W(*AIC)
main55101-6C270i199305-199908
W(*CLB)
main55101-6C280i199305-199501
W(*CLB & *AIC)
main55101-6C290i199201-199305
W(FRONT HEATER)
main55101-6C300i199201-199305
W(FR & RR HEATER)
main55101-6C310i199305-199908
W(*CLB & FRONT HEATER)
main55101-6C320i199608-199908
W(*CLB & FRONT & REAR HEATER)
main55101-6C340i199305-199608
main55101-6C341i199608-199908
main55101-6C360i199201-199305
W(*CLB)
main55101-6C510i199208-199305
main55101-6C520i199208-199305
W(*CLB)
main55101-6C580i199305-199604
main55101-6C600i199305-199604
W(FRONT HEATER)
main55101-6C620i199305-199604
W(REAR HEATER & *AIC)
main55101-6C640i199305-199604
main55101-6C650i199305-199604
W(FR & RR HEATER)
main55101-6D060i199709-200106
main55101-6D620i199908-200207
W(FRONT HEATER & CLUTCH BOOSTER & SILENCER)
main55101-6D640i199908-200207
W(FRONT HEATER & SILENCER)
main55101-6D650i199908-200108
W(CLUTCH BOOSTER)
main55101-6D651i200108-200701
W(CLUTCH BOOSTER)
main55101-6D680i199908-200108
W(FRONT HEATER & CLUTCH BOOSTER)
main55101-6D681i200108-200701
W(FRONT HEATER & CLUTCH BOOSTER)
main55101-6D690i199908-200108
main55101-6D700i199908-200108
W(FRONT HEATER); W(REAR HEATER)
main55101-6D720i199908-200108
W(FRONT HEATER); W(REAR HEATER)
main55101-6D750i199908-200808
W(FRONT HEATER & SILENCER); W(REAR HEATER & SILENCER)
main55101-6D760i199908-200108
main55101-6D761i200108-200701
main55101-6D781i200108-200701
W(REAR HEATER)
main55101-6D810i199908-200108
BANGLADESH SPEC & W(CLUTCH BOOSTER & BOOST VENTILATOR)
main55101-6D820i199908-200108
BANGLADESH SPEC & W(BOOST VENTILATOR)
main55101-6D830i200109-200808
CHINA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC OR SAUDI ARABIA SPEC & W(FRONT HEATER)
main55101-6D880i200010-200808
CHINA SPEC & W(REAR HEATER)
main55101-6E021i200108-200701
main55101-6E560i200207-200605
main55101-90437i199001-199208
W(*CLB)
main55101-90602i199001-199201
W(FRONT HEATER)
main55101-90603i199001-199201
main55101-90614i199001-199108
main55101-90623i199001-199108
main55101-90K84i199001-199201
main55101-90L00i199001-199201
W(*CLB)
main55101-90L13i199001-199208
main55101-90L29i199305-199604
main55101-90L31i199001-199305
W(FRONT HEATER)
main55101-90L37i199201-199208
main55101-90L38i199201-199208
W(*CLB & *AIC)
main55101-90L45i199201-199208
VENEZUELA SPEC; W(FRONT HEATER)
main55101-90L46i199201-199208
W(*CLB & FRONT HEATER)
main55101-90L79i199001-199305
W(FRONT HEATER)
main55101-90L80i199001-199305
main55101-90L82i199001-199305
W(FRONT HEATER & *AIC)
main55101-90L84i199305-199604
main55101-90L85i199004-199305
W(FRONT HEATER)
55133AREINFORCEMENT, DASH TO FLOOR, RH
main55133-60020i199305-200405
55134AREINFORCEMENT, DASH TO FLOOR, LH
main55134-60010i199305-199908
55210INSULATOR ASSY, DASH PANEL
main55210-60030i199305-199911
main55210-60040i199305-199501
main55210-60110i200012-200108
W(HEATER)
55223AINSULATOR, DASH PANEL, OUTER
main55223-60040i199201-199208
main55223-60060i199001-199208
main55223-60070i199201-199208
main55223-60120i199208-199305
main55223-60121i199305-199911
main55223-60130i199208-199305
main55223-60131i199305-199911
main55223-60140i199208-199305
main55223-60141i199305-199908
main55223-60150i199208-199305
main55223-60151i199305-199908
main55223-60210i199908-200808
55225INSULATOR, DASH PANEL HEAT
main55225-60030i200109-200808
9046707132
main90467-07132
9046708011
main90467-08011
9046708030
main90467-08030
9046708186
main90467-08186
904671001601
main90467-1001601
9046713035
main90467-13035
9095001049
main90950-01049
9095001448
main90950-01448
9162140612
main91621-40612
9162140814
main91621-40814
9165140614
main91651-40614
9165140616
main91651-40616
9165160616
main91651-60616
9165160816
main91651-60816
9166140612
main91661-40612

45 parts on this diagram · 4 diagrams in section

FRONT FENDER APRON & DASH PANEL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
