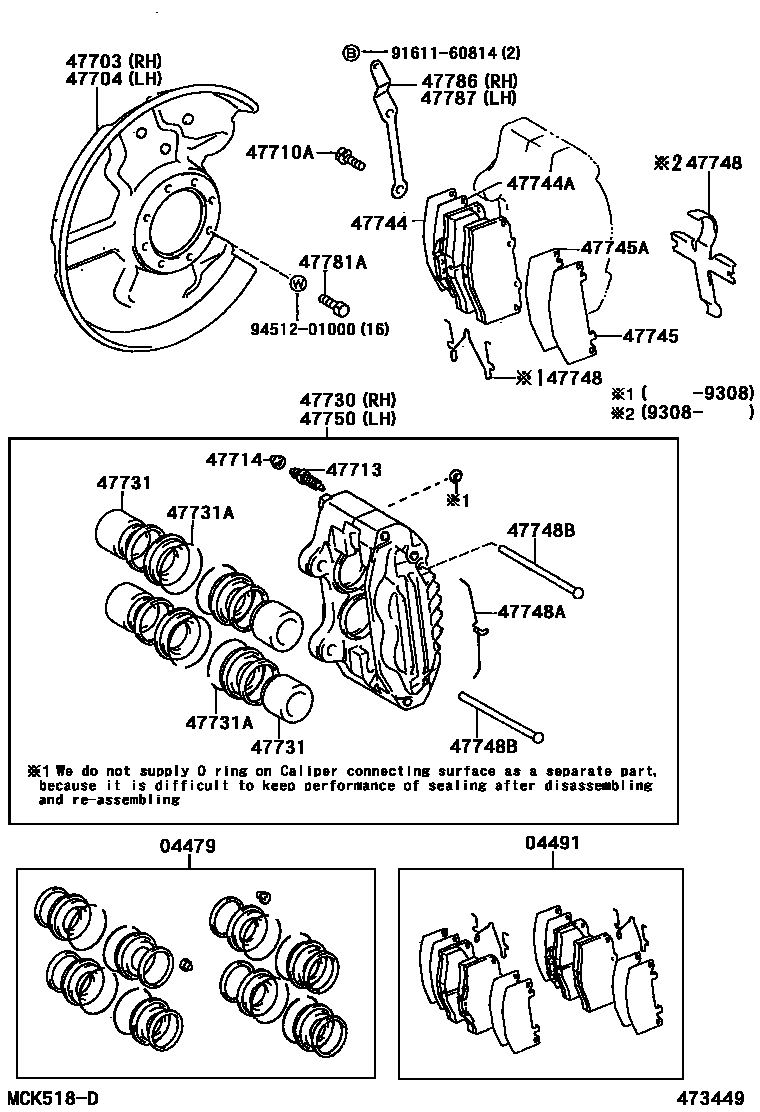

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30030iLJ70,72,RJ70199001-199305

sub04479-30031

main04479-35010iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200405

main04479-60070iHZJ78..LX;HZJ79..ARL..CBU199908-200808

04491PAD KIT, DISC BRAKE, FRONT

main04491-60070iFJ7#,HZJ75,LJ77,79,PZJ7#,RJ77..GCC,GEN199001-199012

sub04491-60080

main04491-60080iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70,KZJ7#,LJ7#,RJ77..GCC,GEN;FZJ70,HZJ75,RJ70..(HT,PIC)..(CBR,DSL)199001-199505

sub04465-60030

main04491-60090iFJ7#,HZJ7#,PZJ70,73..ARL199001-199012

sub04491-60080

main04491-60100iLJ70,72,RJ70..GEN199001-199012

sub04491-60110

main04491-60110iLJ70,72,RJ70199012-199305

sub04465-60050

main04491-60120iLJ70,RJ70..ARL199001-199012

sub04491-60110

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-60060iLJ70,RJ70;LJ72..LHD199001-199305

main47703-60070iFJ70..4F,4FC;FJ70..ARL,GCC;FJ70..5F..LX..GEN;FJ73,HZJ70,73,LJ77,79,PZJ70,73,RJ77199001-200007

W(FR DISC BRAKE)

main47703-60070iFZJ70..SOT;FZJ70,HZJ70..ARL199305-200106

main47703-60080iPZJ75..4F199201-200405

main47703-60080iFJ75,HJ75,HZJ75..ARL,GCC,SA199001-199201

W(AIR SCOOP)

main47703-60080iFZJ73..STD..GEN..CBR199308-199908

COLOMBIA SPEC

main47781-60100iFZJ78,79..ARL199908-200808

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-60060iLJ70,RJ70;LJ72..LHD199001-199305

main47704-60070iFZJ75,HZJ75,PZJ75..GCC,GEN199001-200007

W(FR DISC BRAKE)

main47704-60070iFZJ70..SOT;FZJ70,HZJ70..ARL199305-200106

main47704-60080iPZJ75..4F199201-200405

main47704-60080iFJ75,HJ75,HZJ75..ARL,GCC,SA199001-199201

W(AIR SCOOP)

main47704-60080iFZJ73..STD..GEN..CBR199308-199908

COLOMBIA SPEC

main47782-60100iHZJ78..LX;HZJ79..ARL..CBU199908-200808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

*12-1.25PX38-23

main90105-12175iHZJ78..LX;HZJ79..ARL..CBU199908-200808

*12-1.25PX35-27

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200405

main47547-60030iFZJ78,79..ARL199908-200808

sub47547-60020

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35010iLJ70,72,RJ70199001-199305

main47730-35080iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200007

main47730-60050iFZJ73..STD..GEN199012-199908

COLOMBIA SPEC

main47730-60050iFJ75..LHD..IV;FZJ70..LHD..HT..GEN;FJ70,75,FZJ75..LHD..(HT,SOT)..5F..GEN199008-199908

VENEZUELA SPEC

main47730-60050iFZJ75..LHD..IV199201-199709

VENEZUELA OR COLOMBIA SPEC

main47730-60050iFZJ70,75..GEN..CBU..EFI199709-200405

main47730-60120iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

47731PISTON, FRONT DISC BRAKE

main47731-14110iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main47731-30020iLJ70,72,RJ70199001-199305

OD=42.82

main47731-35010iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)199001-199708

main47731-35050iFZJ70,75..GEN..CBU..EFI199708-200405

main47732-30010iLJ70,72,RJ70199001-199305

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iLJ70,72,RJ70199001-199305

PISTON OD=33.93

main90522-48044iLJ70,72,RJ70199001-199305

PISTON OD=42.82

main90522-48044iPZJ70,73;PZJ75..4F;RJ70..SOT199305-200808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-35010iLJ70,72,RJ70199001-199305

main47745-35020iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

main47745-35020iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..STD..GEN199008-199208

W(FR DISC BRAKE)

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-35010iLJ70,72,RJ70199001-199305

main47744-35020iFJ75..RHD;FJ75..GCC;FJ70..4F,4FC;FJ70..ARL,GCC;FJ70..5F..LX..GEN;FJ75..LHD..HT..4F;FJ75..LHD..PIC..GEN..CBU;FJ73,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200405

main47744-35020iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..STD..GEN199008-199208

W(FR DISC BRAKE)

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35010iLJ70,72,RJ70199001-199305

main47745-35020iKZJ7#,LJ7#,RJ7#..HT199001-200405

main47745-35020iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..STD..GEN199008-199208

W(FR DISC BRAKE)

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-35010iLJ70,72,RJ70199001-199305

main47744-35020iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..STD..GEN199008-199208

W(FR DISC BRAKE)

main47744-35020iFJ75..RHD;FJ75..GCC;FJ70..4F,4FC;FJ70..ARL,GCC;FJ70..5F..LX..GEN;FJ75..LHD..HT..4F;FJ75..LHD..PIC..GEN..CBU;FJ73,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200405

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-30013iLJ70,72,RJ70199001-199305

main47748-60010iFJ7#,HJ75,HZJ75,LJ77,79,PZJ7#,RJ77..GCC,GEN,SA199001-199308

main47748-60010iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..STD..GEN199008-199208

W(FR DISC BRAKE)

main47748-60040iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main47748-60050iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199308-200405

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12003iLJ70,72,RJ70199001-199305

main90468-12015iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200808

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06006iLJ70,72,RJ70199001-199305

main90240-06024iHZJ78..LX;HZJ79..ARL..CBU199908-200808

main90240-06158iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200405

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35010iLJ70,72,RJ70199001-199305

main47750-35080iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200007

main47750-60050iFZJ75..LHD..IV199201-199709

VENEZUELA SPEC OR COLOMBIA SPEC

main47750-60050iFZJ70,75..LHD..HT..GEN199008-199908

VENEZUELA SPEC

main47750-60050iFZJ73..STD..GEN199012-199908

COLOMBIA SPEC

main47750-60050iFZJ70,75..GEN..CBU..EFI199709-200405

main47750-60120iHZJ78..LX;HZJ79..ARL..CBU199908-200808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10166iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200808

sub90101-10204

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200405

9161160814

main91611-60814

9451201000

main94512-01000

23 parts on this diagram · 4 diagrams in section
