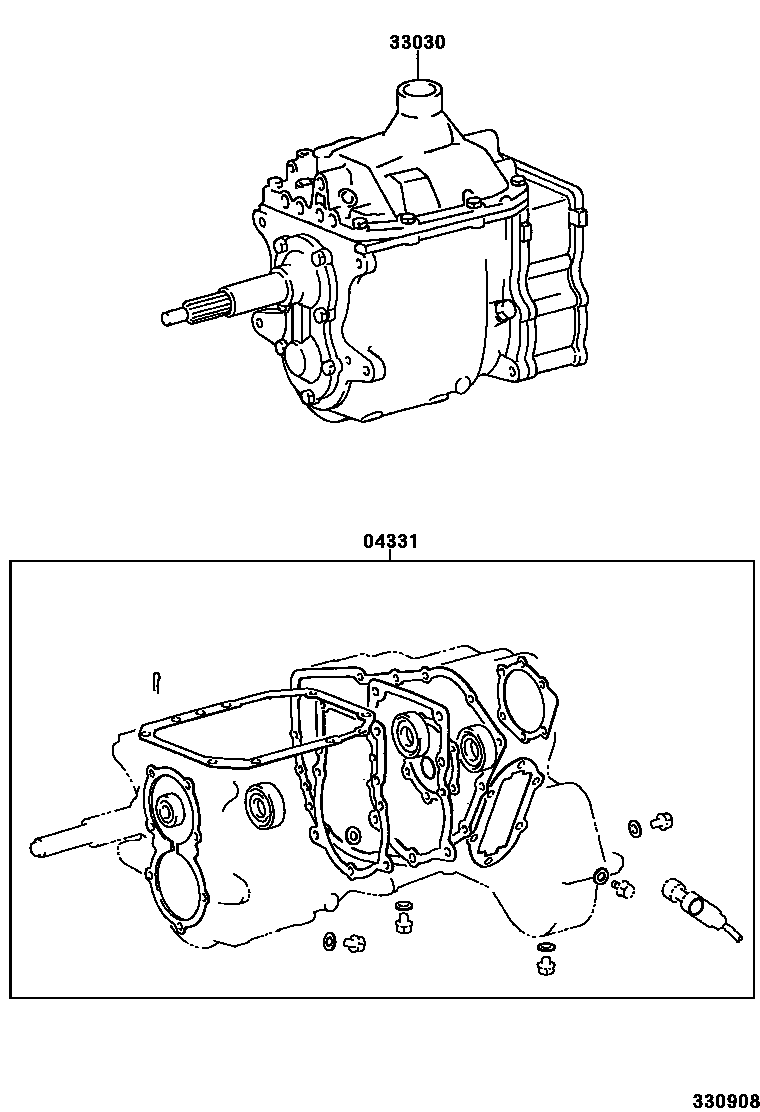

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1H41,H55 0003 1R141,R150,R151 0004 1G40,G52 0005 1H150,H151 0006 1R151

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60200iFZJ70..SOT;FZJ70..EFI;FZJ75..RHD..IV..CBR199305-199501

main04331-60210iLJ7#,RJ7#..HT199305-199604

main04331-60220iPZJ70,73;PZJ75..4F199305-199401

main04331-60230iFJ70,75,HZJ75..4F199001-199201

main04331-60240iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

main04331-60250iHZJ71,78,79199908-200701

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-60341iHJ75;FJ70,75..4F199001-199201

main33030-60351iFJ7#..5F..GCC199001-199201

main33030-60431iFJ7#..5F..(ARL,GEN,SA)199001-199208

main33030-60760iLJ72,79..5F199004-199305

main33030-60770iLJ72,79..4F199004-199305

main33030-60780iRJ7#..LX199305-199604

main33030-60790iRJ70..SOT199305-199401

G40

main33030-60800iPZJ7#..5F199001-199305

main33030-60810iPZJ7#..4F199001-199305

main33030-60820iLJ70,77199001-199208

main33030-60821iLJ77199208-199305

main33030-60840iHZJ75..4F199001-199201

main33030-60850iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

H55

main33030-60880iHZJ75..4F199001-199201

W(*MW)

main33030-60890iHZJ75..5F..GEN;HZJ75..LX..GCC; HZJ75..STD..GCC199001-199305

W(*MW OR *ELC); W(*MW)

main33030-6A040iFZJ75..GEN,SA199201-199208

main33030-6A041iFZJ75..RHD..IV..CBR199305-199501

H150

main33030-6A050iFZJ75..GCC199201-199208

main33030-6A051iFZJ75..GCC199305-199608

main33030-6A060iFZJ70,73..GEN199201-199208

main33030-6A061iFZJ70,73..ARL,GEN199208-199305

main33030-6A070iFZJ70,73..GCC199201-199208

main33030-6A071iFZJ70,73..GCC199208-199305

main33030-6A090iFZJ75..EFI199305-199608

main33030-6A100iKZJ7#199305-199604

main33030-6A130iPZJ70..5F199305-199401

R151

main33030-6A140iPZJ7#..4F199305-199401

main33030-6A200iFZJ75..(GEN,SA)..CBR199608-199801

main33030-6A202iFZJ75..GEN..CBR199801-199908

H150

main33030-6A210iFZJ75..GCC199608-199801

main33030-6A212iFZJ75..GCC199801-199908

main33030-6A220iFZJ75..EFI199608-199801

H150

main33030-6A222iFZJ75..GEN..IV..EFI199801-200405

H150

main33030-6A230iFZJ70,73..GEN199608-199801

main33030-6A232iFZJ73..EFI199801-200405

H151

main33030-6A240iFZJ70,73..GCC199608-199801

main33030-6A242iFZJ70,73..GCC199801-199908

main33030-6A410iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200609

R151F

main33030-6A411iHZJ7#200609-200701

R151

main33030-6A420iFZJ79..CBU;FZJ78..GCC;FZJ78..RHD..GEN199908-200701

H150

main33030-6A430iFZJ71..LHD..GEN199908-200808

H151

main33030-6A570iHDJ7#200108-200701

2 parts on this diagram · 5 diagrams in section
