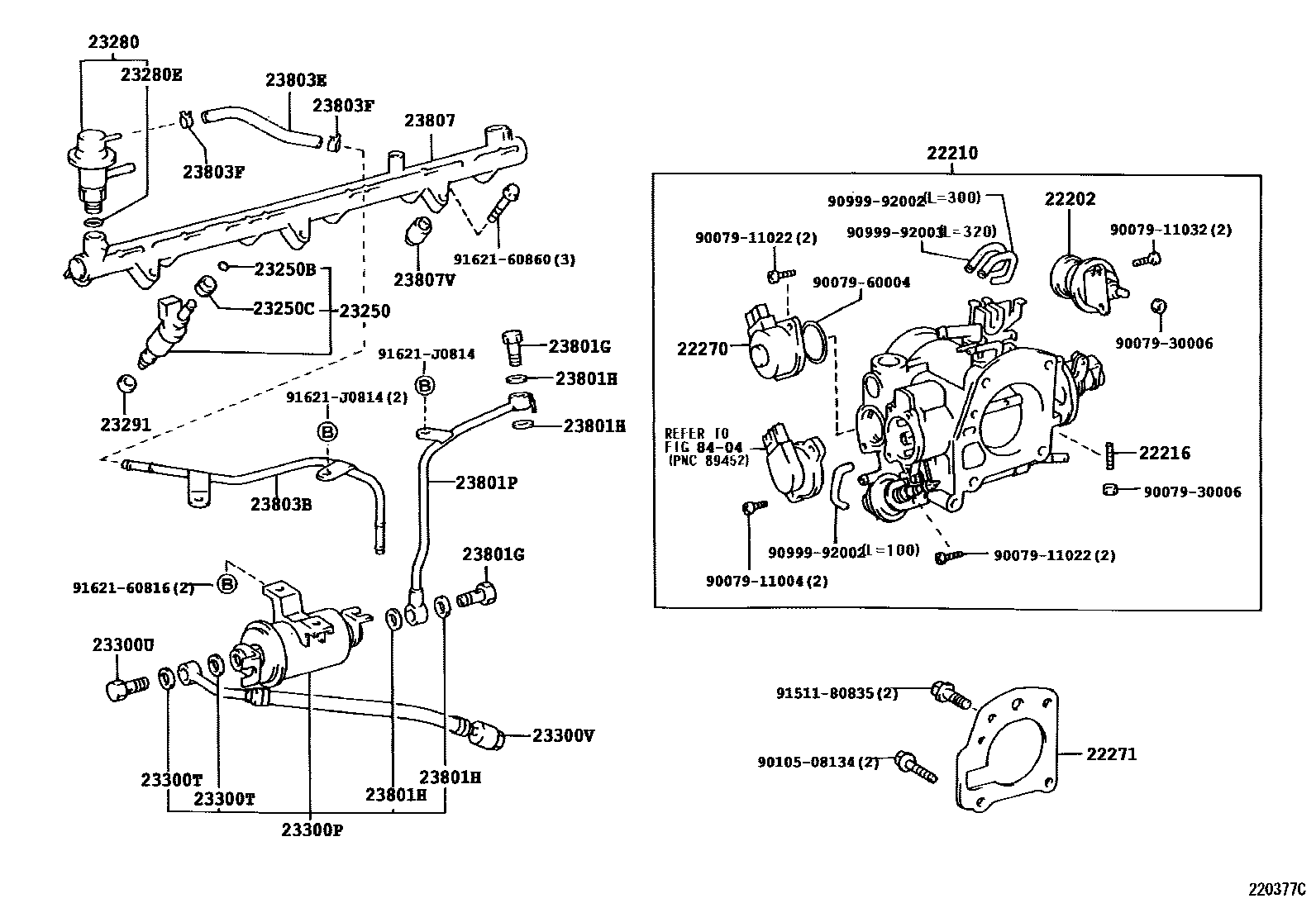

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22202DASH POT SUB-ASSY

main22202-66021i1FZFE..FZJ70,75..ARL199208-199908

sub22202-66030

main22202-66030i1FZFE..FZJ70,73,75..GEN199709-200405

main22202-66070i1FZFE..FZJ78,79..ARL199908-200808

22210BODY ASSY, THROTTLE

main22210-66020i1FZFE..FZJ70,75199208-199501

main22210-66021i1FZFE..FZJ75..ARL199501-199908

main22210-66060i1FZFE..FZJ70,73,75..GEN199709-200405

main22210-66070i1FZFE..FZJ78,79..ARL199908-200808

22216SCREW, DASH POT ADJUSTING

main22216-74311i1FZFE..FZJ70,75199208-199307

sub90079-13010

main90079-13010i1FZFE..FZJ70,75..ARL199307-199908

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-66010i1FZFE..FZJ70,75199208-199501

main22270-66011i1FZFE..FZJ70,73,75199501-200405

main22270-66020i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN199908-200808

22271GASKET, THROTTLE BODY

main22271-66010i1FZFE..FZJ70,75199208-200405

main22271-66020i1FZFE..FZJ78,79..ARL199908-200808

23250INJECTOR ASSY, FUEL

main23209-66010i1FZFE..FZJ78,79..ARL199908-200808

main23209-74080i1FZFE..FZJ70,75199208-200405

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1FZFE..FZJ70,75199208-200405

main90301-07024i1FZFE..FZJ71,74,78,79199908-200607

main90301-07037i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD200607-200808

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79199208-200808

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75010i1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79199208-200808

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-09002i1FZFE..FZJ70,73,75199208-200808

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN199208-200808

23300PFILTER, FUEL(FOR EFI)

main23300-66050i1FZFE..FZJ71,74,78,79199908-200808

main23300-69045i1FZFE..FZJ70,75199208-200106

23300TGASKET(FOR FUEL FILTER)

main90430-12026i1FZFE..FZJ70,75199208-200106

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1FZFE..FZJ70,75199208-200106

23300VHOSE, FUEL(FOR FUEL INLET)

main90923-01402i1FZFE..FZJ70,75199208-200106

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12097i1FZFE..FZJ70,75199208-200405

23801HGASKET(FOR FUEL PIPE)

main90430-12026i1FZFE..FZJ70,73,75199208-200405

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-66020i1FZFE..FZJ70,75199208-200405

main23801-66040i1FZFE..FZJ78,79..ARL199908-200808

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-66020i1FZFE..FZJ70,73,75199208-200405

main23803-66040i1FZFE..FZJ78,79..ARL199908-200808

23803EHOSE, FUEL

main95333-06010i1FZFE..FZJ70,75199208-200808

main95334-06010i1FZFE..FZJ71,74,78,79199306-200004

23803FCLIP

main90467-11009i1FZFE..FZJ71,74,78,79199908-200204

sub96135-51100

main90467-11057i1FZFE..FZJ70,75199208-199312

sub96135-51100

main96135-51100i1FZFE..FZJ70,73,75199312-200405

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-66020i1FZFE..FZJ70,75199208-200405

main23807-66030i1FZFE..FZJ78,79..ARL199908-200808

main23807-66040i1FZFE..FZJ79..RHD..CBU199908-200701

SOUTH AFRICA SPEC

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1FZFE..FZJ70,75199208-200808

8404

9007911004

main90079-11004

9007911022

main90079-11022

9007911032

main90079-11032

9007930006

main90079-30006

9007960004

main90079-60004

9010508134

main90105-08134

9099992002

main90999-92002

9099992003

main90999-92003

9151180835

main91511-80835

9162160816

main91621-60816

9162160860

main91621-60860

91621J0814

main91621-J0814

36 parts on this diagram · 4 diagrams in section
