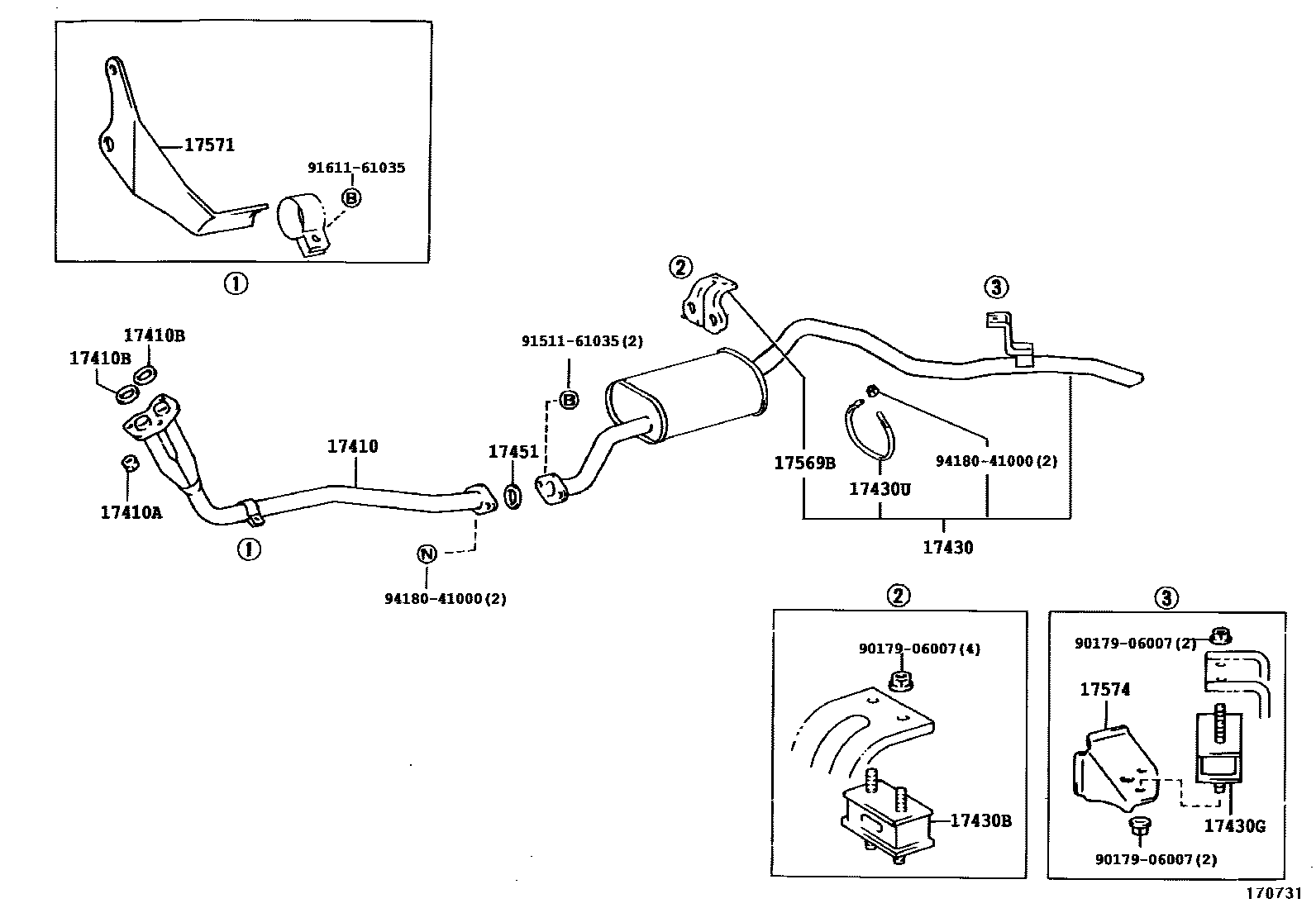

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-17060i1HZ..HZJ71,78,79..GCC,GEN199908-200701

TYPE A:REFER TO ILLUSTRATION

main17401-17070i1HZ..HZJ7#..ARL199001-199208

main17401-17071i1HZ..HZJ7#..ARL199208-199305

main17401-17180i1HZ..HZJ78,79..ARL199908-200001

main17401-17190i1HZ..HZJ78,79..ARL200001-200701

TYPE B:REFER TO ILLUSTRATION

main17401-17220i1HDFTE..HDJ7#200108-200207

main17401-17221i1HDFTE..HDJ7#200207-200701

main17401-18020i1PZ..PZJ7#..GEN199001-199305

main17401-18030i1PZ..PZJ70,73..ARL199001-199108

main17401-35120i22R..RJ7#..GCC,GEN199001-199305

main17401-54110i2LT..LJ70,77199001-199305

main17401-54120i3L..LJ72,79199004-199305

main17401-58120i2H..HJ75199001-199108

main17401-67030i1KZT..KZJ7#199305-199604

main17410-35230i22R..RJ70..ARL199001-199108

main17410-61220i3F..FJ7#..MTM199001-199208

main17410-61230i3F..FJ70,73..4FC199001-199201

main17410-61271i1FZF..FZJ7#..GCC199305-199801

main17410-66070i1FZFE..FZJ70,75199305-199501

main17410-66110i1FZFE..FZJ70,75..CBU199909-200106

TYPE B:REFER TO ILLUSTRATION

main17410-66120i1FZF..FZJ7#..GCC199801-199907

main17410-66121i1FZF..FZJ70,73,75;1FZFE..FZJ75..ARL199907-199911

TYPE A:REFER TO ILLUSTRATION

main17410-66122i1FZFE..FZJ71,74,78,79; 1FZFE..FZJ78,79..ARL200206-200207

TYPE A:REFER TO ILLUSTRATION

main17410-66130i1FZFE..FZJ74..STD..GEN;1FZFE..FZJ71,78,79..LHD..GEN; 1FZFE..FZJ79..LHD..GEN..CBU200010-200108

TYPE B:REFER TO ILLUSTRATION

main17410-66131i1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD200108-200206

TYPE B:REFER TO ILLUSTRATION

main17410-66132i1FZFE..FZJ74..STD;1FZFE..FZJ74..LX..GCC;1FZFE..FZJ71,78,79..LHD; 1FZFE..FZJ79..LHD..GEN..CBU200206-200207

TYPE B:REFER TO ILLUSTRATION

main17410-66150i1FZFE..FZJ78,79..ARL;1FZFE..FZJ78,79..LHD..GEN..CBU200207-200701

TYPE C:REFER TO ILLUSTRATION

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-06007×2i1FZF..FZJ70,73,75..GCC199801-199911

main90179-06030×4i1HZ..HZJ75199905-200007

###

main90179-10070×4i1FZFE..FZJ70;1FZF..FZJ70..SOT;1FZF..FZJ75..RHD..IV;1FZFE..FZJ75..GEN..CBU199305-200106

##

17410BGASKET, EXHAUST PIPE

main17451-67020i1HDFTE..HDJ7#200108-200701

main90917-06005i2H..HJ75199001-199108

main90917-06038×2i22R..RJ7#199001-199206

main90917-06039×2i3F..FJ7#199001-199208

main90917-06042i2LT,3L..LJ7#199001-199206

main90917-06059i1HZ,1KZT,1PZ..HZJ70,75,KZJ7#,PZJ7#199305-200007

main90917-06064×2i22R..RJ7#199206-199305

main90917-06065×2i1FZ#..FZJ7#199201-199305

main90917-06066i2LT,3L..LJ7#199206-199305

17430PIPE ASSY, EXHAUST, TAIL

main17405-17030i1HZ..HZJ70199001-199208

main17405-17031i1HZ..HZJ71199908-200701

main17405-17050i1HZ..HZJ73199001-199108

main17405-17070i1HZ..HZJ75199001-199109

main17405-17071i1HZ..HZJ75199109-199305

main17405-17072i1HZ..HZJ78,79199908-200001

main17405-17073i1HZ..HZJ78,79200001-200701

main17405-17270i1HDFTE..HDJ7#200108-200701

main17405-18010i1PZ..PZJ70199001-199208

main17405-18011i1PZ..PZJ70199208-199305

main17405-18030i1PZ..PZJ73199001-199208

main17405-18031i1PZ..PZJ73199305-199401

main17405-18050i1PZ..PZJ75199001-199305

main17405-35120i22R..RJ70..GEN199001-199208

main17405-35121i22R..RJ70199208-199301

main17405-35122i22R..RJ70199305-199604

main17405-35130i22R..RJ70..ARL199001-199108

main17405-35140i22R..RJ77199004-199205

main17405-35141i22R..RJ77199205-199301

main17405-35142i22R..RJ77199305-199604

main17405-54210i3L..LJ72199004-199208

main17405-54211i3L..LJ72199208-199301

main17405-54212i3L..LJ72199301-199305

main17405-54230i2LT,3L..LJ77,79199004-199012

main17405-54231i2LT..LJ77199301-199305

main17405-54240i2LT..LJ70199001-199208

main17405-54270i3L..LJ79199012-199301

main17405-54271i3L..LJ79199301-199305

main17405-61200i3F..FJ75..GCC,GEN,SA199001-199208

main17405-61300i3F..FJ70199001-199208

main17405-61310i3F..FJ73199001-199208

main17405-61340i1FZF..FZJ70199201-199208

main17405-61341i1FZFE..FZJ71199908-200310

main17405-61342i1FZFE..FZJ71200310-200808

main17405-61350i1FZF..FZJ73199201-199208

main17405-61351i1FZF..FZJ73199305-199908

main17405-61352i1FZFE..FZJ74200310-200701

main17405-61360i1FZ#..FZJ75199201-199305

main17405-61361i1FZF..FZJ75;1FZFE..FZJ75..CBU;1FZFE..FZJ75..ARL..IV199509-200106

main17405-61362i1FZFE..FZJ78,79199908-200310

main17405-61363i1FZFE..FZJ78,79200310-200808

main17405-67010i1KZT..KZJ70199305-199604

FR

main17405-67030i1KZT..KZJ77199305-199604

FR

main17405-68040i3F..FJ75..ARL199001-199208

main17405-68080i2H..HJ75199001-199108

main17430-61190i3F..FJ70..5F..GEN199001-199208

VENEZUELA SPEC

main17430-67010i1KZT..KZJ70199305-199604

RR

main17430-67020i1KZT..KZJ77199305-199604

RR

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17567-17010i1FZF..FZJ73;22R,1FZ#,1HZ,1KZT,3L,1PZ..FZJ70,HZJ70,KZJ7#,LJ7#,PZJ70,73,RJ7#199305-199905

main17567-17020i1FZF..FZJ73;1FZ#,1HZ..FZJ70,HZJ70199905-200106

main17567-61030i22R,3F..FJ70,73,RJ7#199011-199208

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-17010i22R,1FZ#,1HZ,2LT,3L,1PZ..FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199208-199305

main17567-17020i1FZF..FZJ73,75;1FZFE..FZJ75..CBU;1FZFE..FZJ75..ARL..IV;1FZ#,1HZ..FZJ70,HZJ70,75199905-200106

main17567-61030i22R,3F,2H,2LT,3L..FJ7#,HJ75,LJ7#,RJ7#199006-199011

17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)

main17504-17010i1FZ#,1HZ..FZJ70,73,HZJ70,73199001-199305

main17504-61020i22R,3F,2LT,3L,1PZ..FJ70,73,LJ7#,PZJ70,73,RJ7#199001-199604

17451GASKET, EXHAUST PIPE

main90917-06024i2H..HJ75199001-199012

main90917-06039i22R..RJ7#..GCC,GEN199001-199206

main90917-06044i22R..RJ7#199206-199305

main90917-06045×2i22R..RJ70..ARL199104-199108

main90917-06047×2i22R..RJ70..ARL199001-199104

main90917-06049i1KZT,3L..KZJ7#,LJ7#199305-199604

main90917-06054i1HZ,1PZ..HZJ7#,PZJ7#199001-199302

main90917-06072i1FZ#..FZJ7#199201-199302

main90917-06073i2H..HJ75199012-199108

main90917-06076i1FZ#,1HZ,1PZ..FZJ7#,HZJ7#,PZJ7#199302-199305

17569BSTAY, EXHAUST PIPE SUPPORT, NO.2

main17569-17010i1FZFE,1HZ..FZJ71,74,HZJ71199908-200808

main17569-54020i22R..RJ70..ARL;2LT,3L..LJ70,72199001-199604

main17569-54030i22R,2LT,3L..LJ77,79,RJ77199004-199604

main17569-61020i1PZ..PZJ70,73;22R..RJ70..GEN199001-199604

main17569-61050i3F..FJ70,73199001-199208

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-17030i1HZ..HZJ7#199001-199305

main17571-18010i1PZ..PZJ7#199305-199501

main17571-35030i22R..RJ70..ARL199001-199108

main17571-35110i22R..RJ7#..GCC,GEN199001-199305

main17571-54390i2LT,3L..LJ7#199007-199305

main17571-54400i3L..LJ72,79199004-199007

main17571-61110i3F..FJ7#..MTM199001-199208

main17571-61120i3F..FJ70,73..4FC199001-199201

main17571-61221i1FZF..FZJ73,75;1FZ#..FZJ70,75..CBU;1FZFE..FZJ75..ARL..IV199305-200106

MARK 12

main17571-61222i1FZFE..FZJ71,74,78,79200206-200808

MARK 13

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-60030i1FZF..FZJ73;22R,1FZ#,1HZ,1KZT,3L,1PZ..FZJ70,HZJ70,KZJ70,LJ72,PZJ70,73,RJ70199305-200106

main17574-60040i1FZ#,3F,1HZ,2H,1PZ..FJ75,FZJ75,HJ75,HZJ75,PZJ75199001-199305

9017906007

main90179-06007

9151161035

main91511-61035

9161161035

main91611-61035

9418041000

main94180-41000

15 parts on this diagram · 16 diagrams in section
