CYLINDER BLOCK

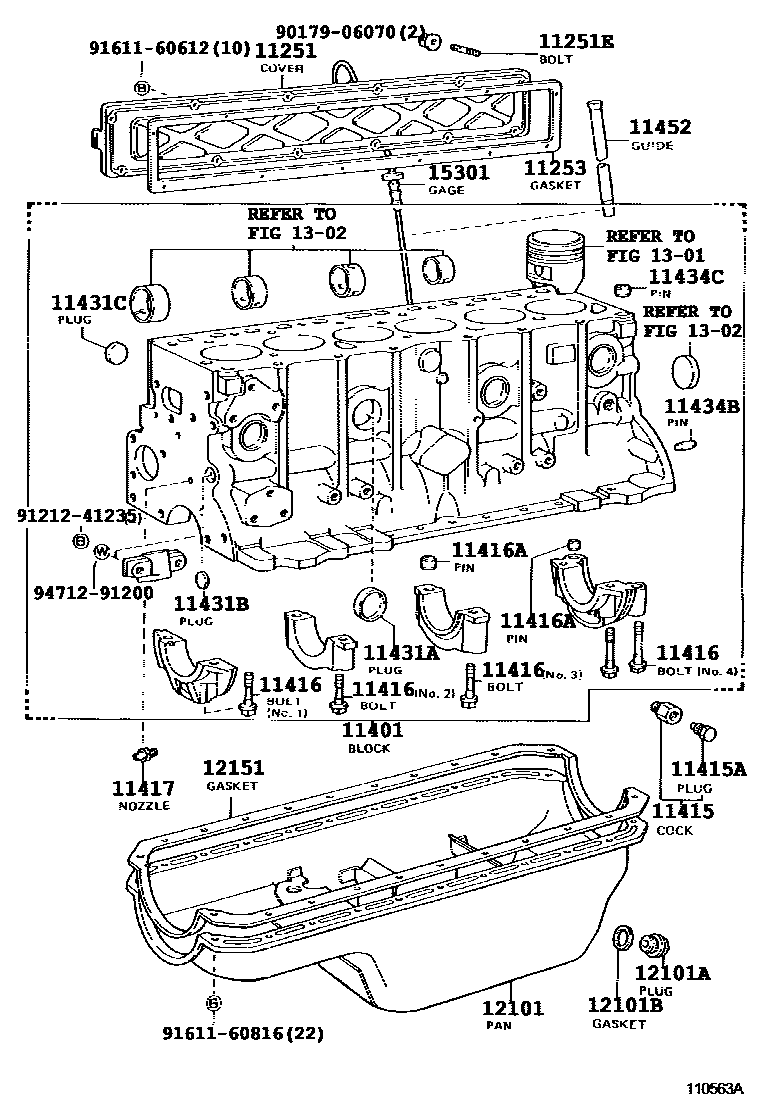

Parts diagram
11251COVER, VALVE PUSH ROD
main11251-61020i199001-199208
11251EBOLT, STUD(FOR VALVE PUSH ROD COVER)
main90116-06022i199001-199208
11253GASKET, VALVE PUSH ROD COVER
main11253-61010i199001-199208
11401BLOCK SUB-ASSY, CYLINDER
main11401-19605i199001-199301
sub11401-19606
main11401-19606i199301-199411
sub11401-19607
sub91622-G1014
main11401-19607i199411-199705
sub11401-19608
sub90345-52003
main11401-19608i199705-199801
sub11401-19609
main11401-19609i199801-199805
sub11401-80040
main11401-19625i199001-199401
main11401-19635i199001-199301
W(FRONT HEATER)
sub11401-19636
main11401-19635i199001-199301
W(HEATER)
sub11401-19636
main11401-19636i199301-199411
W(FRONT HEATER)
sub11401-19637
sub91622-G1014
main11401-19636i199301-199305
W(HEATER)
sub11401-19637
sub91622-G1014
main11401-19636i199305-199411
W(FRONT HEATER & REAR HEATER)
sub11401-19637
sub91622-G1014
main11401-19637i199411-199705
W(FRONT HEATER) & W(FRONT & REAR HEATER)
sub11401-19638
sub90345-52003
main11401-19637i199411-199705
W(FRONT HEATER)
sub11401-19638
sub90345-52003
main11401-19637i199411-199705
W(FRONT HEATER) OR KENYA SPEC
sub11401-19638
sub90345-52003
main11401-19637i199411-199501
sub11401-19638
sub90345-52003
main11401-19638i199705-199801
W(FRONT HEATER & REAR HEATER)
sub11401-19639
main11401-19638i199705-199801
KENYA SPEC
sub11401-19639
main11401-19638i199705-199801
W(FRONT HEATER)
sub11401-19639
main11401-19639i199801-199805
KENYA SPEC
sub11401-80043
main11401-19639i199801-199805
W(FRONT HEATER)
sub11401-80043
main11401-19639i199801-199805
W(FRONT HEATER & REAR HEATER)
sub11401-80043
main11401-19645i199001-199305
W(HEATER)
main11401-19645i199001-199401
W(FRONT HEATER)
main11401-19645i199001-199501
main11401-19645i199305-199401
W(FRONT HEATER OR REAR HEATER)
main11401-39447i199001-199604
main11401-59355i199001-199104
sub11401-59357
main11401-59357i199104-199305
main11401-59365i199004-199102
sub11401-59505
main11401-59505i199102-199604
main11401-69306i199001-199006
sub11401-69307
main11401-69307i199006-199208
main11401-69505i199201-199207
sub11401-69507
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69506i199207-199711
sub11401-69508
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69508i199711-199911
main11401-69515i199201-199207
EXHAUST EMISSION CONTROL
sub11401-69517
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69516i199207-199711
EXHAUST EMISSION CONTROL
sub11401-69518
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69516i199510-199711
LOW OCTANE SPEC
sub11401-69518
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69516i199510-199711
CHINESE SPEC
sub11401-69518
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69516i199510-199711
CHINESE OR LOW OCTANE SPEC
sub11401-69518
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69518i199711-199908
CHINESE OR LOW OCTANE SPEC
main11401-69535i199208-199711
sub11401-69536
sub12315-66022
sub82123-60111
sub90910-09075
main11401-69536i199711-200405
main11401-69545i199305-199503
sub11401-69546
sub13572-67041
sub13581-67041
sub90105-10398
main11401-69546i199503-199604
sub11401-69547
main11401-69805i199908-200808
main11401-80010i199805-199907
W(FRONT HEATER)
sub11401-80041
main11401-80010i199805-199907
KENYA SPEC
sub11401-80041
main11401-80010i199805-199907
W(FRONT HEATER & REAR HEATER)
sub11401-80041
main11401-80035i199805-199907
sub11401-80042
main11401-80041i199907-200701
W(HEATER)
main11401-80042i199907-200701
main11401-80054i200108-200701
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
main90345-52003i199212-199705
main90345-53030i199402-199604
main90910-09075i199705-200808
sub90910-09129
main90910-09088i199001-199011
BANGLADESH SPEC
sub90345-52003
main90910-09088i199001-199212
sub90345-52003
main96431-53828i199001-199604
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
main90345-53030i199001-199006
main90910-09087i199001-200808
main96431-23814i199201-199711
main96432-23814i199001-199604
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90105-14033i199001-199208
NO.1,2,3
main90119-08182i199001-200701
NO.1
main90910-02042i199001-199604
main90910-02057i199001-199208
NO.4
main90910-02061i199001-199604
main90910-02098i199001-200701
NO.2
main90910-02110i199201-200808
main90910-02113i199305-199604
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
main90253-16014i199001-199208
NO.4
main90253-18003i199001-199208
NO.1,2,3
11417NOZZLE, OIL
main90915-01014i199001-199208
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
main90331-35002i199001-200701
main96411-42500i199001-199604
main96411-43500i199201-199205
main96411-45000i199001-199208
main96411-63500i199205-200808
main96411-64500i199305-199604
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
main90344-54003i199001-199208
main96411-41800i199001-200701
main96411-43500i199001-199604
main96411-44000i199001-199604
main96411-45000i199201-199205
main96411-63500i199305-199604
main96411-65000i199205-200808
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
main96411-42500i199001-200701
main96411-44000i199305-199510
main96411-45000i199001-199604
main96411-64000i199510-199604
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
main90250-08054i199201-200808
L=23,OD=8
main90250-10113i199001-199604
L=22,OD=10
main90250-10192i199001-199208
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-08074i199001-200701
L=15,OD=8
main90250-08120i199001-199604
L=18,OD=8
main90253-15005i199001-199604
L=7,OD=14.5
main90253-15007i199201-200808
L=10.5,OD=15
main90253-17003i199001-199208
L=7,OD=16.5
11452GUIDE, OIL LEVEL GAGE
main11409-66010i199201-199801
main11409-66020i199908-200808
main11409-66030i199801-200405
main11452-17010i199001-199501
main11452-17011i199501-199805
main11452-17040i199805-200701
main11452-17041i200104-200308
main11452-18030i199001-199501
main11452-35010i199001-199604
main11452-54080i199001-199604
main11452-61010i199001-199208
main11452-67020i199305-199604
12101PAN SUB-ASSY, OIL
main12101-17040i199001-199805
main12101-17110i199208-199805
sub12101-17100
main12101-17190i199908-200701
PAPUA NEW GUINEA SPEC
main12101-17190i199805-200007
main12101-17200i199805-200701
main12101-18020i199001-199501
main12101-35040i199001-199604
main12101-54192i199208-199305
sub12101-54193
main12101-54230i199001-199005
sub12101-54232
sub90341-12012
sub90430-12027
main12101-54232i199005-199505
sub12101-54233
main12101-54233i199505-199604
main12101-61050i199001-199208
main12101-66030i199201-199601
sub12101-66031
sub90116-08372
main12101-66031i199601-199801
main12101-66040i199208-199601
sub12101-66041
sub90116-08372
main12101-66041i199601-199801
main12101-66061i199908-200808
main12101-66070i199801-199908
sub12101-66071
main12101-66080i199801-199908
sub12101-66081
main12101-66081i199908-200405
main12101-66091i199908-200605
main12101-67040i199305-199604
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i199001-200808
main90341-12026i199201-200210
sub90341-12012
main90341-18089i199001-199005
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12021i199001-199004
sub90430-12028
main90430-12027i199001-199312
sub90430-12031
main90430-12031i199309-200808
main90430-18026i199001-199005
12151GASKET, OIL PAN
main12151-61011i199001-199208
1301
1302
15301GAGE SUB-ASSY, OIL LEVEL
main15301-17010i199001-199501
main15301-17030i199501-199805
main15301-17050i199805-200701
main15301-35020i199001-199604
main15301-54070i199001-199604
main15301-61040i199001-199208
main15301-66010i199201-199311
sub15301-66011
main15301-66011i199311-199801
main15301-66020i199801-200808
main15301-67010i199305-199604
9017906070
main90179-06070
9121241235
main91212-41235
9161160612
main91611-60612
9161160816
main91611-60816
9471291200
main94712-91200

27 parts on this diagram · 10 diagrams in section
