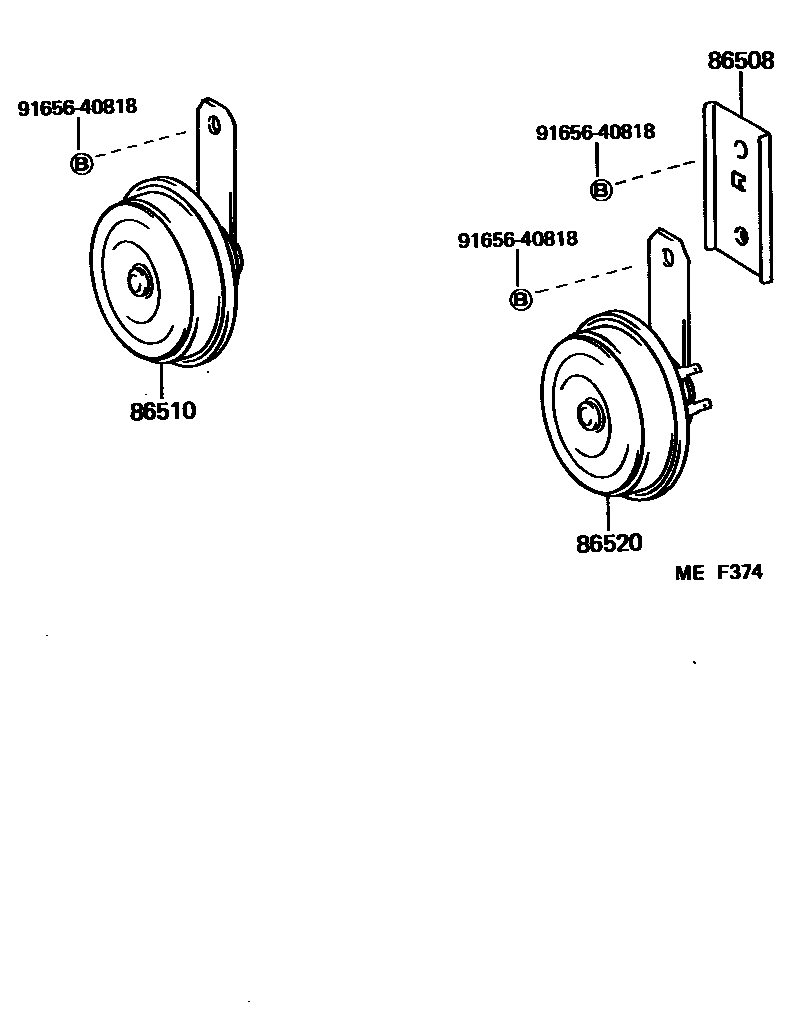

HORN

86508BRACKET SUB-ASSY, HORN

main86591-90K01iFJ75,HJ75..SA198510-199001

86510HORN ASSY, HIGH PITCHED

main86510-12420iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN198510-199001

12V

main86510-22091iBJ75,FJ7#,RJ70..ME198509-199001

main86510-22140iBJ70,75,FJ7#,LJ70,RJ70..GEN,ME198411-198510

12V,RADIO=AM/SW

main86510-90K00iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198510

24V

main86510-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198509

12V

main86510-90K03iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

12V,*SA

main86510-90K07iFJ75,HJ75..SA198510-199001

12V

main86510-90K08iBJ70..RHD..SOT198608-199001

24V

86520HORN ASSY, LOW PITCHED

main86520-12350iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

12V,*SA

main86520-12610iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN198510-199001

12V

main86520-12620iFJ75,HJ75..SA198510-199001

12V

main86520-22091iLJ70..LHD..TD;BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(CBR,DSL)..GEN198510-199001

12V,RADIO=AM/SW

main86520-22140iBJ70,75,FJ7#,LJ70,RJ70..GEN,ME198411-198510

12V,RADIO=AM/SW

main86520-90K00iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198510

24V

main86520-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198509

12V

main86520-90K07iBJ70..RHD..SOT198608-199001

24V

9165640818

main91656-40818

4 parts on this diagram · 1 diagram in section
