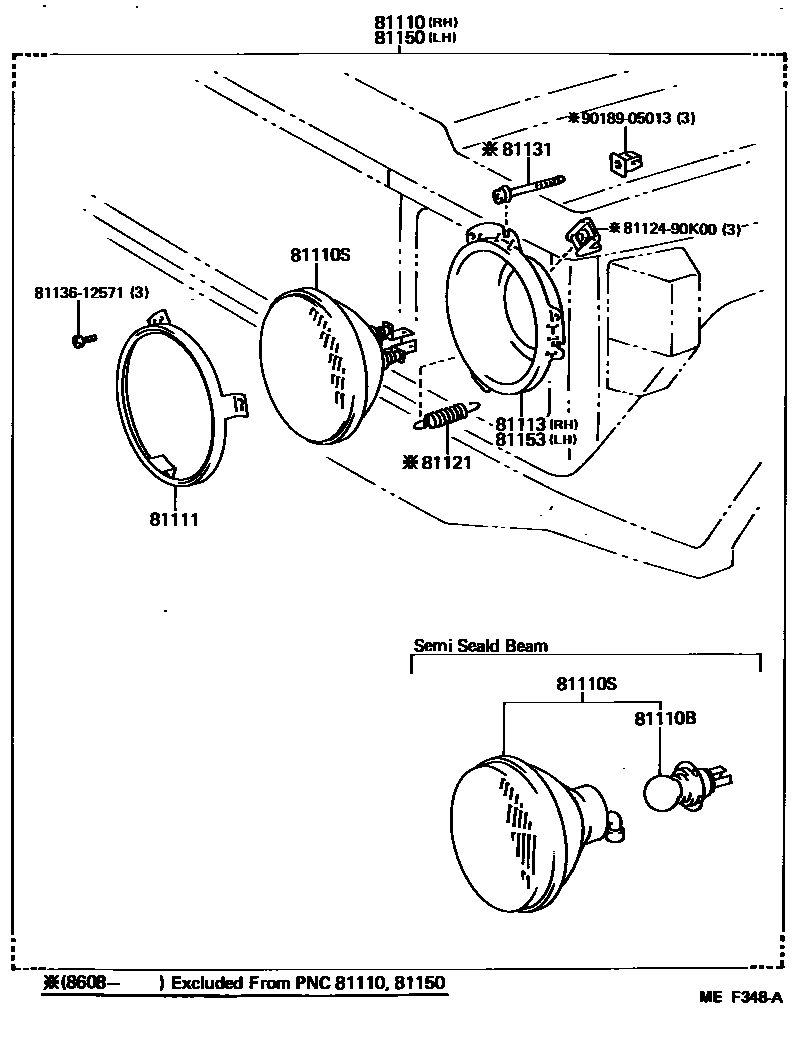

HEADLAMP
81110HEADLAMP ASSY, RH
12V,SEALED BEAM
12V,SEALED BEAM
12V,SEMI SEALED BEAM
24V
12V,HALOGEN
12V,HALOGEN
SOUTH AFRICA SPEC
12V,HALOGEN,YELLOW
12V,SEMI SEALED BEAM
12V,SEMI SEALED BEAM,YELLOW
12V,SEALED BEAM
12V,SEMI SEALED BEAM
12V,HALOGEN
main81110-90K13iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN198608-198910
12V,HALOGEN
12V HALOGEN
main81110-90K20iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN; FJ7#,RJ70..ME198608-198910
12V,HALOGEN,YELLOW
12V,SEMI SEALED BEAM
12V,SEMI SEALED BEAM,YELLOW
12V,SEALED BEAM
24V
24V
12V,SEALED BEAM,HALOGEN
12V,SEALED BEAM,HALOGEN
12V,SEMI SEALED BEAM
12V,SEMI SEALED BEAM
12V,HALOGEN
main81110-90K38iBJ70,73,FJ70,73,LJ70,RJ70..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN198910-199001
12V,HALOGEN
main81110-90K39iBJ70,73,FJ70,73,LJ70,RJ70..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN; FJ7#,RJ70..ME198910-199001
12V,HALOGEN; 12V,HALOGEN,YELLOW
12V,SEMI SEALED BEAM,YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W
12V 45/40W,YELLOW,12V 45/40W,YELLOW
main90981-13015×2iBJ70,73,FJ70,73,LJ70,RJ70..LX..GEN; BJ75,FJ75,HJ75..GEN,ME,SA; FJ70,RJ70..ME198608-199001
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW
81110SSEALED BEAM UNIT, NO.1
12V 50/40W,12V 50/40W,SEALED BEAM
12V 45/40W,*WSB,12V 45/40W,*SSB
12V 45/40W,*WSB,12V 45/40W,*SSB
main90981-01035×2iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN198608-199001
12V 60/55W,*HWS,12V 60/55W,HALOGEN; 12V 60/55W,*HWS,12V 60/55W,HALOGEN,*SSB; 12V 60/55W,*HWS,12V 60/65W,HALOGEN,*SSB
main90981-01036×2iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN198608-199001
12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW,*SSB
12V 60/55W,*HWS,12V 60/55W,HALOGEN
12V 45/40W,*YSB,12V,SEMI SEALED BEAM,YELLOW
12V 60/50W,*WB,12V 60/50W,SEALED BEAM
12V 65/55W,*HAL,*WB,12V 65/55W,SOUTH AFRICA SPEC
12V 60/50W,*WB,12V 60/50W,SEALED BEAM
12V 70/55W,*WB,*HAL,12V 70/55W,SEALD BEAM,HALOGEN
12V 70/55W,*WB,*HAL,12V 70/55W,HALOGEN
24V 75/55W,24V 75/70W
24V 75/55W,*WB,24V 75/55W
24V 75/55W,*WB,24V 75/55W
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
12V,SEALED BEAM
12V SEALED BEAM
12V,SEMI SEALED BEAM
24V
12V,HALOGEN
12V,HALOGEN
SOUTH AFRICA SPEC
12V,HALOGEN,YELLOW
12V,SEMI SEALED BEAM
12V,SEMI SEALED BEAM,YELLOW
12V,SEALED BEAM
12V,SEMI SEALED BEAM
12V,HALOGEN
main81150-90K13iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD198608-198910
12V HALOGEN; 12V,HALOGEN
12V HALOGEN
main81150-90K20iBJ70,73,FJ70,73,LJ70,RJ70..LHD..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN; FJ7#,RJ70..ME198608-198910
12V,HALOGEN,YELLOW
12V,SEMI SEALED BEAM
12V,SEMI SEALED BEAM,YELLOW
12V,SEALED BEAM
24V
24V
12V,SEALED BEAM,HALOGEN
12V,SEALED BEAM,HALOGEN
12V,SEM; SEALED BEAM
12V,SEMI SEALED BEAM
12V,HALOGEN
main81150-90K38iBJ70,73,FJ70,73,LJ70,RJ70..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD198910-199001
12V,HALOGEN
main81150-90K39iBJ70,73,FJ70,73,LJ70,RJ70..LX..GEN; BJ75,FJ7#,RJ70..ME; BJ75,FJ75,HJ75..LHD..GEN; FJ7#,RJ70..ME198910-199001
12V,HALOGEN,YELLOW
12V,SEM; SEALED BEAM,YELLOW
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8112490K00SPACER
main81124-90K00
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905013
main90189-05013
12 parts on this diagram · 2 diagrams in section
