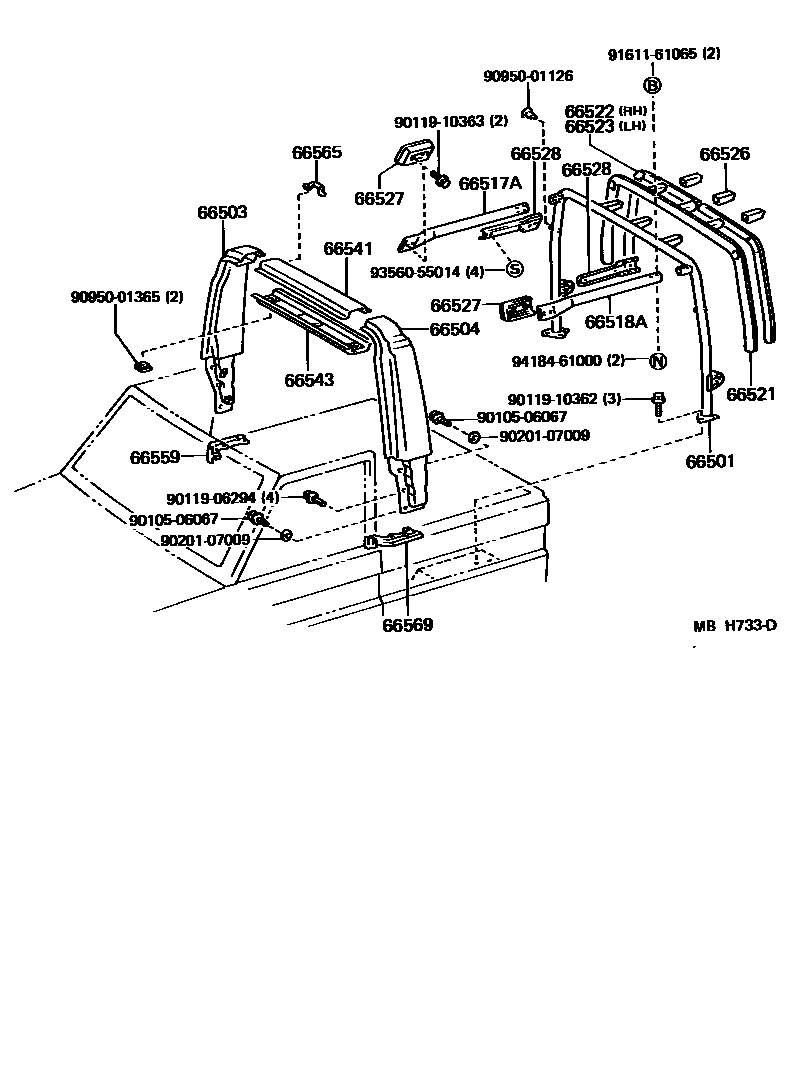

PROTECTOR PIPE, ROLL BAR & HANDRAIL

66501BAR SUB-ASSY, ROLL OVER

main66501-90K00iBJ73,FJ73..ARL198411-198510

main66501-90K02iBJ73,74,FJ73..ARL198510-199001

66503PANEL SUB-ASSY, ROLL OVER SIDE, RH

main66503-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

main66503-90K02iBJ73,74,FJ73..HT198411-199001

66504PANEL SUB-ASSY, ROLL OVER SIDE, LH

main66504-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

main66504-90K02iBJ73,74,FJ73..HT198411-199001

66517ABAR, ROLL OVER SUPPORT, RH

main66517-90K00iBJ73,FJ73..ARL198411-198510

main66517-90K01iBJ73,74,FJ73..ARL198510-198710

main66517-90K03iBJ73,74,FJ73..ARL198710-199001

66518ABAR, ROLL OVER SUPPORT, LH

main66518-90K00iBJ73,FJ73..ARL198411-198510

main66518-90K01iBJ73,74,FJ73..ARL198510-198710

main66518-90K03iBJ73,74,FJ73..ARL198710-199001

66521COVER, ROLL OVER BAR

main66521-90K00iBJ73,74,FJ73..ARL198510-198608

66522PAD, ROLL OVER BAR, RH

main66522-90K01iBJ73,74,FJ73..ARL198510-198608

66523PAD, ROLL OVER BAR, LH

main66523-90K00iBJ73,74,FJ73..ARL198510-198608

66526PAD, ROLL OVER BAR, REAR

main66526-90K00×3iBJ73,74,FJ73..ARL198510-198608

66527PROTECTOR, ROLL OVER SUPPORT, FRONT

main66527-90K00×2iBJ73,74,FJ73..ARL198411-199001

66528PROTECTOR, ROLL OVER SUPPORT, REAR

main66528-90K00×2iBJ73,74,FJ73..ARL198411-199001

66541PANEL, ROLL OVER, OUTER

main66541-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT; BJ73,74,FJ73..HT198411-199001

66543PANEL, ROLL OVER, INNER

main66543-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT; BJ73,74,FJ73..HT198411-199001

66559SEAL, ROLL OVER PANEL, RH

main66559-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

main66559-90K01iBJ73,74,FJ73..HT198411-199001

66565CATCH, ROLL OVER PANEL, UPPER

main66565-90K00×4iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

66569SEAL, ROLL OVER PANEL, LH

main66569-90K00iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

main66569-90K01iBJ73,74,FJ73..HT198411-199001

9010506067

main90105-06067

9011906294

main90119-06294

9011910362

main90119-10362

9011910363

main90119-10363

9020107009

main90201-07009

9095001126

main90950-01126

9095001365

main90950-01365

9161161065

main91611-61065

9356055014

main93560-55014

9418461000

main94184-61000

26 parts on this diagram · 1 diagram in section
