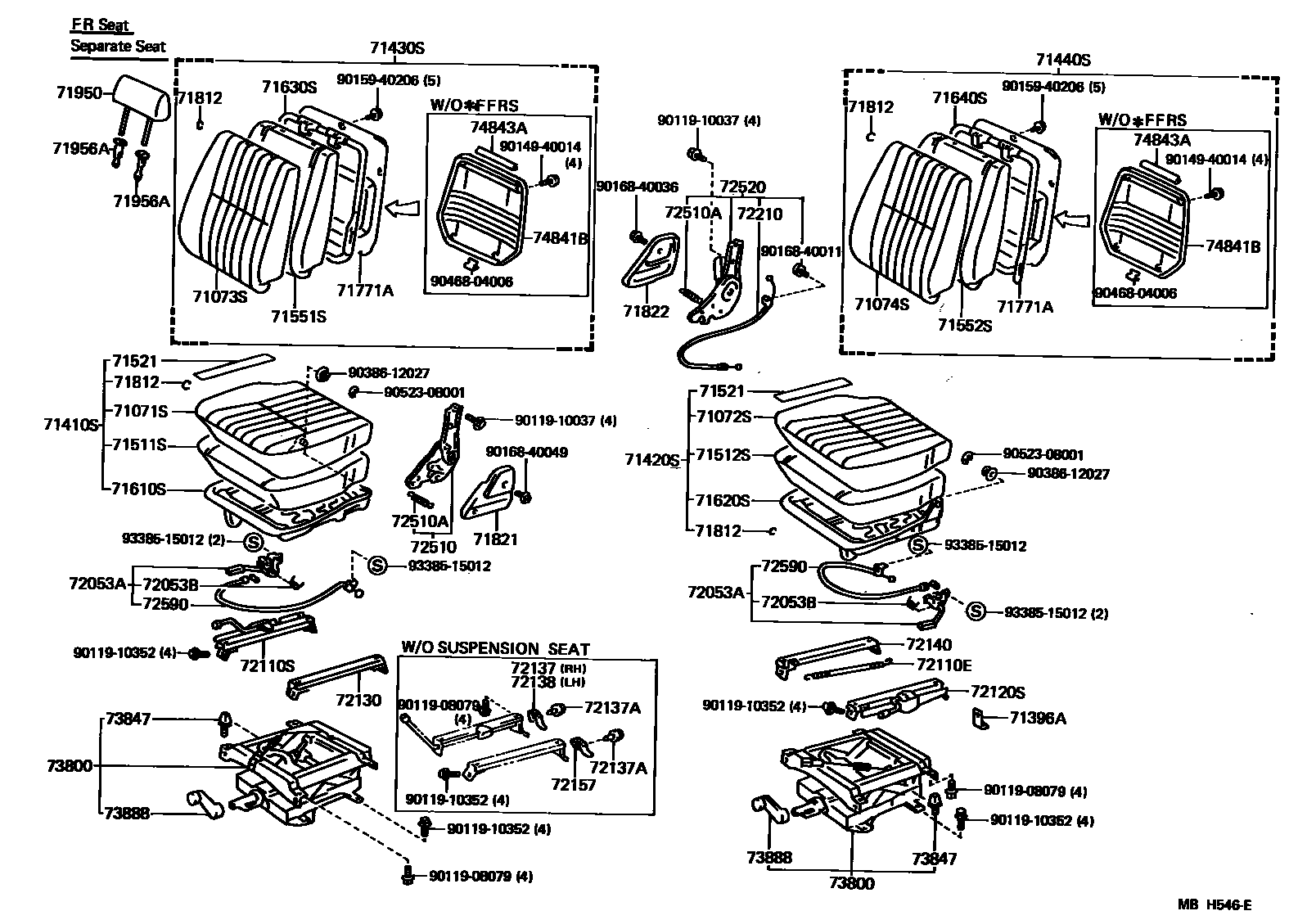

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VENEZUELA SPEC,GRAY
VL,BEIGE,BEIGE
VENEZUELA SPEC,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
PRINT LEATHER,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
VL,GRAY,BEIGE
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SWPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
VL,W/O *FFRS,GRAY,GRAY
VL,W/O *FFRS,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
PRINT LEATHER,W/O *FFRS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,W/*FFRS,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
VL,W/*FFRS,GRAY,GRAY
VL,GRAY,GRAY
VL,W/*FFRS,BEIGE,BEIGE
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/*FFRS,GRAY,GRAY
FB,W/*FFRS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/O *FFRS,GRAY,GRAY
FB,W/O *FFRS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,W/*FFRS,GRAY,SHADOW GRAY
FB,GRAY,SHADOW GRAY
FB,W/*FFRS,BROWN,SEPIA BROWN
FB,BROWN,SEPIA BROWN
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
VL,W/O *FFRS,GRAY,GRAY
VL,W/O *FFRS,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,W/O *FFRS,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
PRINT LEATHER,W/*FFRS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
VL,W/*FFRS,GRAY,GRAY
VL,GRAY,GRAY
VL,W/*FFRS,BEIGE,BEIGE
VL,BEIGE,BEIGE
FB,W/*FFRS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*FFRS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/O *FFRS,GRAY,GRAY
FB,W/O *FFRS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/*SPS,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/*SPS,BEIGE,BEIGE
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATER,BROWN,SEPIA BROWN
FB,W/*FFRS,GRAY,SHADOW GRAY
FB,W/*FFRS,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71396APLATE, REAR SEAT BAND HOOK
FR SEPARATE SEAT,W/*FFRS
FR BENCH SEAT,W/*FFRS
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,GRAY,GRAY
FB,W/*SUS,GRAY,GRAY
FB,W/*SUS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/O *SUS,GRAY,GRAY
FB,W/O *SUS,BEIGE,BEIGE
VL,GRAY,GRAY
VENEZUELA SPEC,W/O*FFRS,GRAY,GRAY
VL,W/O *SUS,GRAY,GRAY
VENEZUELA SPEC,W/O*FFRS,BEIGE,BEIGE
VL,W/O *SUS,BEIGE,BEIGE
VL,BEIGE,BEIGE
VL,GRAY,GRAY
VL,W/*SUS,GRAY,GRAY
VL,BEIGE,BEIGE
VL,W/*SUS,BEIGE,BEIGE
PRINT LEATHER,W/O *SUS,GRAY,GRAY
PRINT LEATHER,W/*SUS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,GRAY,BEIGE
FB,W/*SPS,*SUS,GRAY,GRAY
FB,W/*SUS,GRAY,GRAY
FB,W/*SPS,*SUS,BEIGE,BEIGE
FB,W/*SUS,BEIGE,BEIGE
FB,W/O *SUS,GRAY,SHADOW GRAY
FB,W/O *SUS,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,W/*SUS,GRAY,SHADOW GRAY
FB,W/*SUS,BROWN,SEPIA BROWN
FB,BROWN,SEPIA BROWN
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,W/*SUS,GRAY,GRAY
VL,BEIGE,BEIGE
VL,W/*SUS,BEIGE,BEIGE
VL,GRAY,GRAY
VL,W/O *SUS,GRAY,GRAY
VENEZUELA SPEC,W/O*FFRS,GRAY,GRAY
VL,BEIGE,BEIGE
VL,W/O *SUS,BEIGE,BEIGE
VENEZUELA SPEC,W/O*FFRS,BEIGE,BEIGE
FB,W/*SUS,GRAY,GRAY
FB,W/*SUS,BEIGE,BEIGE
FB,W/O *SUS,GRAY,GRAY
FB,W/O *SUS,BEIGE,BEIGE
PRINT LEATHER,W/O *SUS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
PRINT LEATHER,W/*SUS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,*SUS,GRAY,GRAY
FJ,W/*SWS,GRAY,GRAY
FB,W/*SPS,*SUS,BEIGE,BEIGE
FB,W/*SWS,BEIGE,BEIGE
FB,W/O *SUS,GRAY,SHADOW GRAY
FB,W/O *SUS,BROWN,SEPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
FB,W/*SUS,GRAY,SHADOW GRAY
FB,W/*SUS,BROWN,SEPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,W/O *FFRS,GRAY,GRAY
VENEZUELA SPEC,W/O*FFRS,GRAY,GRAY
VL,W/O *FFRS,BEIGE,BEIGE
VENEZUELA SPEC,W/O*FFRS,BEIGE,BEIGE
VL,W/O *HR,GRAY,GRAY
VL,W/O *HR,BEIGE,BEIGE
VL,W/*HR,GRAY,GRAY
VL,W/*HR,BEIGE,BEIGE
VL,W/*FFRS,GRAY,GRAY
VL,W/*FFRS,BEIGE,BEIGE
FB,W/*FFRS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*FFRS,BEIGE,BEIGE
FB,BEIGE,BEIGE
PRINT LEATHER,W/*FFRS,GRAY,GRAY
PRINT LEATHER,W/O *FFRS,GRAY,GRAY
PRINT LEATHER,GRAY,GRAY
FB,GRAY,GRAY
FB,W/O *FFRS,GRAY,GRAY
FB,W/O *FFRS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/*SPS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,W/*FFRS,GRAY,SHADOW GRAY
FB,W/*FFRS,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
VL,W/O *FFRS,GRAY,GRAY
VENEZUELA SPEC,W/O*FFRS,GRAY,GRAY
VL,W/O *FFRS,BEIGE,BEIGE
VENEZUELA SPEC,W/O*FFRS,BEIGE,BEIGE
PRINT LEATHER,W/*FFRS,GRAY,GRAY
VL,GRAY,GRAY
VL,BEIGE,BEIGE
VL,W/*FFRS,GRAY,GRAY
VL,W/*FFRS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/*FFRS,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/*FFRS,BEIGE,BEIGE
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,W/O *FFRS,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
PRINT LEATHER,GRAY,GRAY
PRINT LEATHER,BEIGE,BEIGE
FB,W/O *FFRS,GRAY,GRAY
FB,W/O *FFRS,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,W/*SPS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,BEIGE,BEIGE
FB,W/*SPS,GRAY,GRAY
FB,W/*SPS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
FB,W/*FFRS,GRAY,SHADOW GRAY
FB,W/*FFRS,BROWN,SEPIA BROWN
PRINT LEATHER,GRAY,SHADOW GRAY
PRINT LEATHER,BROWN,SEPIA BROWN
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VENEZUELA SPEC
W/*SPS
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
W/*SPS
71521PAD, FRONT SEAT CUSHION SILENCER, A
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
W/*SPS
W/*SPS
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
W/*SPS
W/*SPS
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VENEZUELA SPEC
W/*SUS
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
W/*SUS
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
W/*SPS
W/*SPS
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
W/*SPS
W/*SPS
71771ABOARD, FRONT SEATBACK
RH,BENCH SEAT
LH,BENCH SEAT
SEPARATE SEAT
RH,BENCH SEAT
LH,BENCH SEAT
71812CLIP (FOR FRONT SEAT CUSHION COVER)
71821SHIELD, FRONT SEAT SIDE, RH
GRAY,SHADOW GRAY
VENEZUELA SPEC,GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
VENEZUELA SPEC,BROWN,SEPIA BROWN
W/O *WI,GRAY,SHADOW GRAY
GRAY,SHADOW GRAY
W/O *WI,BROWN,SEPIA BROWN
BROWN,SEPIA BROWN
71822SHIELD, FRONT SEAT SIDE, LH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
GRAY,SHADOW GRAY
W/O *WI,GRAY,SHADOW GRAY
W/O *WI,BROWN,SEPIA BROWN
BROWN,SEPIA BROWN
71950HEADREST ASSY, FRONT SEAT
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
W/*SPS,GRAY,GRAY
GRAY,GRAY
W/*SPS,BROWN,BROWN
BROWN,BROWN
71956SUPPORT, HEADREST
BLACK,BLACK
71956ASUPPORT, FRONT SEAT HEADREST
W(LOCK),W/LOCK,GRAY,SHADOW GRAY
W(LOCK),W/LOCK,BROWN,SEPIA BROWN
W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY
W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN
72053ALEVER SUB-ASSY, RECLINING REMOTE CONTROL
RH,W/SEPARATE SEAT,GRAY,SHADOW GRAY
RH,GRAY,SHADOW GRAY
VENEZUELA SPEC,GRAY,SHADOW GRAY
RH,W/SEPARATE SEAT,BROWN,SEPIA BROWN
VENEZUELA SPEC,BROWN,SEPIA BROWN
RH,BROWN,SEPIA BROWN
RH,W/BENCH SEAT,GRAY,SHADOW GRAY
RH,W/BENCH SEAT,BROWN,SEPIA BROWN
LH,W/SEPARATE SEAT,GRAY,SHADOW GRAY
LH,GRAY,SHADOW GRAY
LH,W/SEPARATE SEAT,BROWN,SEPIA BROWN
LH,BROWN,SEPIA BROWN
LH,W/BENCH SEAT,GRAY,SHADOW GRAY
LH,W/BENCH SEAT,BROWN,SEPIA BROWN
72053BSPRING(FOR RECLINING REMOTE CONTROL LEVER)
RH
LH
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
VENEZUELA SPEC
W/SEPARATE SEAT
W/BENCH SEAT,WALK-IN
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
W/*SUS
W/*SUS
W/*SUS
VENEZUELA SPEC
W/*SUS
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
W/*SUS
W/*SUS
W/*SUS
W/*SUS
W/*SUS
W/*SUS
72130TRACK ASSY, RH SEAT, INNER
W/SEPARATE SEAT
W/SEPARATE
VENEZUELA SPEC
W/BENCH SEAT,WALK-IN
W/*SUS
W/SEPARATE SEAT,*SUS
W/BENCH SEAT
W/SEPARATE SEAT
W/BENCH SEAT,WALK-IN
W/BENCH SEAT
72137COVER, SEAT TRACK, OUTER RH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72137ACLIP (FOR SEAT TRACK COVER)
BROWN,SEPIA BROWN
GRAY,SHADOW GRAY
72138COVER, SEAT TRACK, OUTER LH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72140TRACK ASSY, LH SEAT, INNER
W/SEPARATE SEAT
W/BENCH SEAT,W/WALK-IN
W/*SUS
W/SEPARATE SEAT,*SUS
W/BENCH SEAT
W/SEPARATE SEAT
W/BENCH SEAT,W/WALK-IN
W/BENCH SEAT
72157COVER, SEAT TRACK BRACKET, INNER
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72210CABLE ASSY, SEAT TRACK CONTROL
W/SEPARATE SEAT
VENEZUELA SPEC
W/SEPARATE SEAT
W/BENCH SEAT,WALK-IN
W/BENCH SEAT,WALK-IN
W/BENCH SEAT,WALK-IN,
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
W/SEPARATE SEAT,BLACK,BLACK
VENEZUELA SPEC,BROWN,BLACK
W/BENCH SEAT
W/BENCH SEAT,WALK-IN,BLACK,BLACK
72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
W/BENCH SEAT,WALK-IN
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
W/SEPARATE SEAT,BLACK,BLACK
GRAY
W/BENCH SEAT
W/BENCH SEAT,WALK-IN,BLACK,BLACK
72590CABLE ASSY, SEATBACK CONTROL
RH,W/SEPARATE SEAT
RH
VENEZUELA SPEC
RH,W/BENCH SEAT
LH
LH,W/SEPARATE SEAT
LH,W/BENCH SEAT
73800SUSPENSION ASSY, SEAT, RH
RH
RH
LH
LH
73847CUSHION, SEAT SUSPENSION STOPPER
73888HANDLE, SEAT SUSPENSION CONTROL
74841BPANEL, FRONT SEATBACK
SEPARATE SEAT,GRAY,SHADOW GRAY
RH,BENCH SEAT,GRAY,SHADOW GRAY
LH,BENCH SEAT,GRAY,SHADOW GRAY
RH,BENCH SEAT,BROWN,SEPIA BROWN
SEPARATE SEAT,BROWN,SEPIA BROWN
LH,BENCH SEAT,BROWN,SEPIA BROWN
RH,BENCH SEAT,GRAY,SHADOW GRAY
RH,BENCH SEAT,BROWN,SEPIA BROWN
LH,BENCH SEAT,GRAY,SHADOW GRAY
LH,BENCH SEAT,BROWN,SEPIA BROWN
74843AORNAMENT, FRONT SEATBACK PANEL
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
9011908079
main90119-08079
9011910037
main90119-10037
9011910352
main90119-10352
9014940014
main90149-40014
9015940206
main90159-40206
9016840011
main90168-40011
9016840036
main90168-40036
9016840049
main90168-40049
9038612027
main90386-12027
9046804006
main90468-04006
9052308001
main90523-08001
9338515012
main93385-15012
58 parts on this diagram · 16 diagrams in section
