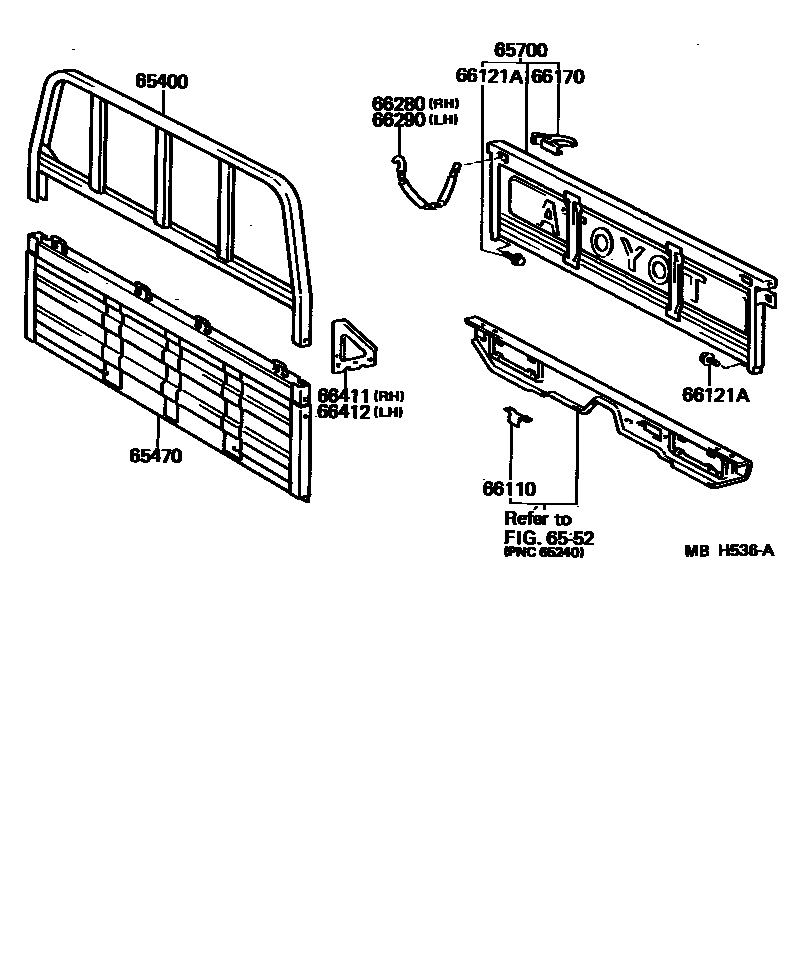

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65410-90K00iBJ75,FJ75,HJ75..PIC198411-199001

main65410-90K01iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

W/SIDE STAKE

65470BOARD ASSY, HEADER

main65470-90K02iBJ75,FJ75,HJ75..PIC198411-199001

main65470-90K05iBJ75,FJ75,HJ75..RHD..PIC198411-199001

W/FULL SUB TANK

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

65700GATE ASSY, REAR BODY TAIL

main65700-90K00iBJ75,FJ75,HJ75..PIC198411-199001

main65700-90K01iFJ75,HJ75..SA198510-199001

main65700-90K01iFJ75,HJ75..RHD..5F..GEN..CBU198503-198510

*SA

main65700-90K02iBJ75,FJ75,HJ75..PIC..(GEN,ME)198708-199001

W/O TOYOTA MARK

main65700-90K03iFJ75,HJ75..SA198809-199001

W/O TOYOTA MARK

66110HINGE ASSY, TAIL GATE

main66110-95014iBJ75,FJ75,HJ75..PIC198411-199001

66121ABOLT, TAIL GATE MALE

main66121-95012iBJ75,FJ75,HJ75..PIC198411-199001

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBJ75,FJ75,HJ75..PIC198411-199001

66280CHAIN ASSY, TAIL GATE, RH

main66280-95403iBJ75,FJ75,HJ75..PIC198411-199001

66290CHAIN ASSY, TAIL GATE, LH

main66280-95403iBJ75,FJ75,HJ75..PIC198411-199001

66411BRACKET, GUARD FRAME, RH

main66411-90K00iBJ75,FJ75,HJ75..PIC198411-199001

main66411-90K01iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

W/SIDE STAKE

66412BRACKET, GUARD FRAME, LH

main66412-90K00iBJ75,FJ75,HJ75..PIC198411-199001

main66412-90K01iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

W/SIDE STAKE

11 parts on this diagram · 1 diagram in section
