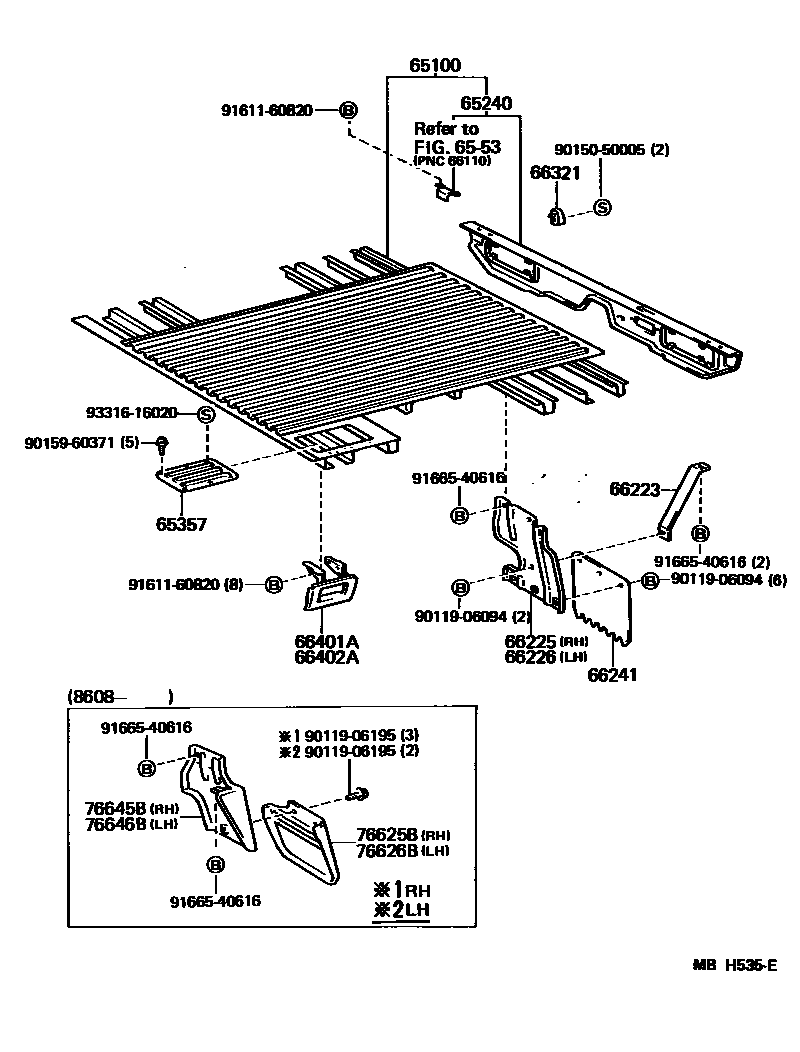

REAR BODY FLOOR & FENDER

65100FLOOR ASSY, REAR BODY

main65100-90K00iBJ75,FJ75,HJ75..PIC198411-198607

main65100-90K02iBJ75,FJ75,HJ75..LHD..PIC198411-198607

W/*FST

main65100-90K03iBJ75,FJ75,HJ75..RHD..PIC198411-198510

W/*FST

main65100-90K04iFJ75,HJ75..SA198510-198607

main65100-90K05iBJ75,FJ75,HJ75..PIC198411-198510

W/SPARE WHEEL SERVICE HOLE CAP

main65100-90K08iBJ75,FJ75,HJ75..PIC198607-199001

main65100-90K10iBJ75,FJ75,HJ75..LHD..PIC198607-199001

W/*FST

main65100-90K11iBJ75,FJ75,HJ75..RHD..PIC..(ARL,GEN)198607-199001

W/*FST

main65100-90K12iFJ75,HJ75..SA198607-199001

main65100-90K13iBJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)198607-199001

W/SPARE WHEEL SERVICE HOLE CAP

main65100-90K16iBJ75,FJ75,HJ75..LHD..PIC..STD198708-198710

HEAVY DUTY PACKAGE

main65100-90K17iBJ75,FJ75,HJ75..LHD..PIC..STD198708-199001

W/*FST,HEAVY DUTY PACKAGE

main65100-90K18iBJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)198710-199001

W/SPARE WHEEL,HEAVY DUTY

main65100-90K19iBJ75,FJ75,HJ75..RHD..PIC..(ARL,GEN)198710-199001

W/*FST,HEAVY DUTY PACKAGE

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-90K00iBJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)198510-199001

main65240-90K02iFJ75,HJ75..SA198510-199001

main65240-90K03iBJ75,FJ75,HJ75..PIC198411-198510

W/SPARE WHEEL SERVICE

65357COVER, FRONT FLOOR CORNER

main65357-90K00×2iBJ75,FJ75,HJ75..PIC198411-199001

main65357-90K02×2iBJ75,FJ75,HJ75..LHD..PIC..STD198708-198710

HEAVY DUTY PACKAGE

6553

66223STAY, REAR FENDER REAR PLATE

main66235-90K00×2iBJ75,FJ75,HJ75..PIC198411-198608

66225SUPPORT, REAR MUDGUARD, RH

main66251-90K00iBJ75,FJ75,HJ75..PIC198411-198608

66226SUPPORT, REAR MUDGUARD, LH

main66252-90K00iBJ75,FJ75,HJ75..PIC198411-198608

66241MUDGUARD, REAR

main66241-90K00×2iBJ75,FJ75,HJ75..PIC198411-198608

sub66241-60010

66321BUMPER, GATE RUBBER

main66321-90K00×4iFJ75,HJ75..RHD..5F..GEN..CBU198503-198510

*SA

main66321-95406×2iBJ75,FJ75,HJ75..PIC198411-198510

sub66321-37010

66401APANEL SUB-ASSY, DECK SIDE STEP, RH

main66401-90K00×2iBJ75,FJ75,HJ75..PIC198411-199001

66402APANEL SUB-ASSY, DECK SIDE STEP, LH

main66402-90K00×2iBJ75,FJ75,HJ75..PIC198411-199001

76625BMUDGUARD, REAR BODY, RH

main76625-90K02iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

sub76625-60100

76626BMUDGUARD, REAR BODY, LH

main76626-90K02iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

sub76626-60100

76645BBRACKET, REAR BODY MUDGUARD, RH

main76607-90K02iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

76646BBRACKET, REAR BODY MUDGUARD, LH

main76608-90K02iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

9011906094

main90119-06094

9011906195

main90119-06195

9015050005

main90150-50005

9015960371

main90159-60371

9161160820

main91611-60820

9166540616

main91665-40616

9331616020

main93316-16020

22 parts on this diagram · 1 diagram in section
