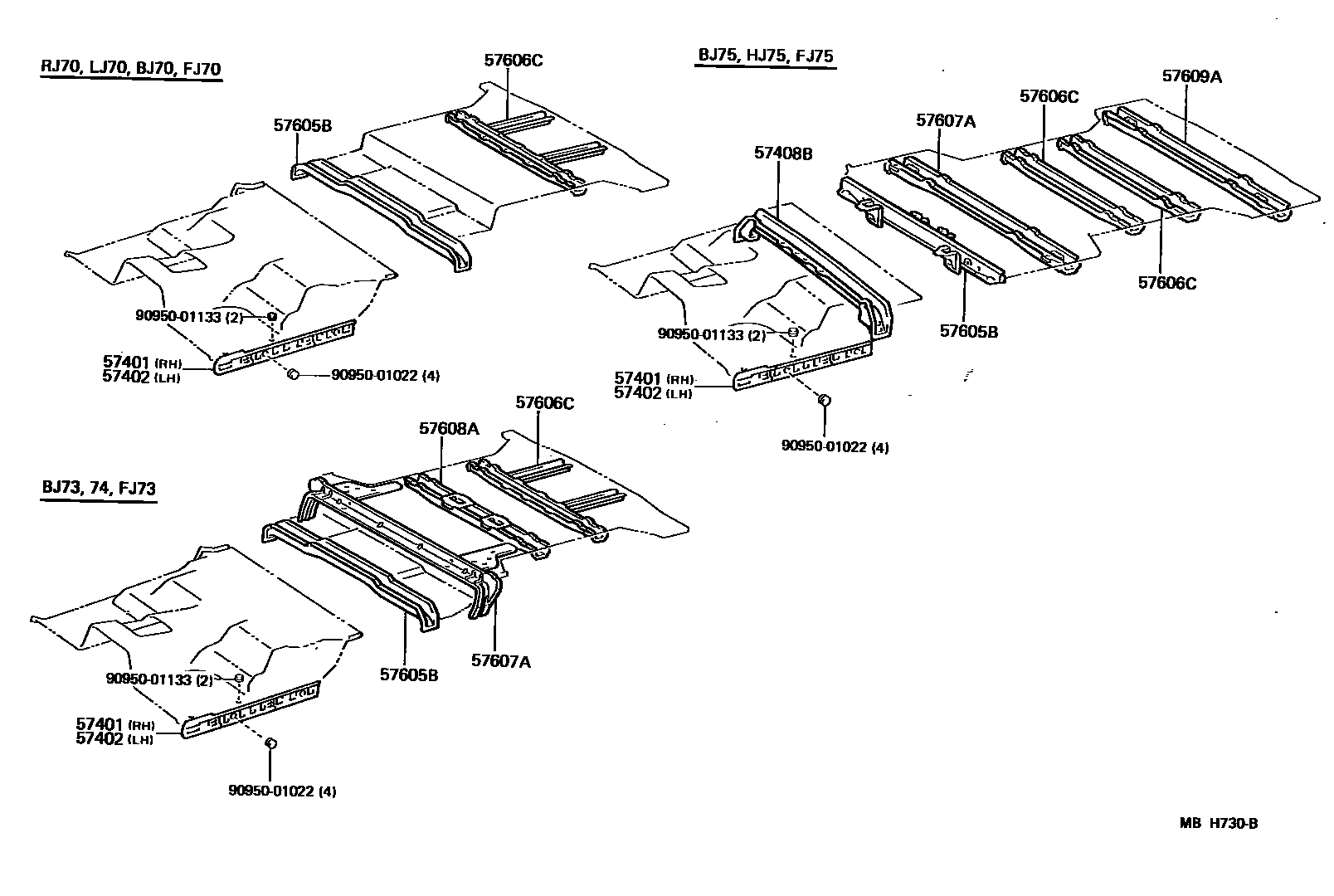

FLOOR MEMBER

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198510

main57402-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70198510-199001

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-90K00iBJ75,FJ75,HJ75..HT198411-198510

main57408-90K02iBJ75,FJ75,HJ75..PIC198411-198510

main57408-90K03iBJ75,FJ75,HJ75198510-199001

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-90K00iBJ70,73,74,FJ70,73,LJ70,RJ70198411-198608

W/FR SEPARATE SEAT,FR SEATBELT

main57605-90K01iBJ70,73,FJ7#,HJ75..ARL; BJ70,FJ70,RJ70..RHD..GEN; LJ70..RHD..GEN198411-198608

W/FR BENCH SEAT

main57605-90K02iBJ70,FJ70,73,LJ70,RJ70..LHD198411-198608

W/FR BENCH SEAT

main57605-90K04iBJ75,FJ75,HJ75..HT198411-198510

main57605-90K08iBJ70,FJ70,73,LJ70,RJ70..GEN,ME198411-198510

W/O FR SEAT BELT

main57605-90K09iBJ75,FJ75,HJ75..HT198510-199001

main57605-90K10iBJ70,73,FJ70,73,LJ70,RJ70..GEN; BJ73,74,FJ73,LJ70,RJ70..ARL; FJ70,73,RJ70..(LX,VX)..ME198608-199001

W/FR SEPARATE SEAT; W/FR SEPARATE SEAT,FR SEATBELT

main57605-90K11iBJ70,73,FJ70,73..(LX,STD)..ARL; BJ70,73,FJ70,LJ70,RJ70..RHD..GEN198608-199001

W/FR BENCH SEAT

main57605-90K12iBJ70,FJ70,LJ70,RJ70..LHD..GEN; FJ70..(LX,STD)..ME; FJ73..STD; RJ70..STD..ME198608-199001

W/FR BENCH SEAT

main57605-90K17iBJ70,73,FJ70,73,LJ70,RJ70..GEN198608-199001

W/O FR SEAT BELT

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-90K04iBJ70,FJ70,LJ70,RJ70..HT..GEN; FJ70,RJ70..LX..ME; FJ70,RJ70..VX..ME198608-199001

W/*FFRS,RR SEAT BELT

main57606-90K05iBJ70,LJ70,RJ70..LX,STD; BJ73,74,FJ73198411-199001

main57606-90K06×2iBJ75,FJ75,HJ75..HT198411-198510

main57606-90K08iBJ70,FJ70,RJ70..GEN,ME; LJ70..LHD198411-198608

W/*FFRS,W/O RR SEAT BELT

main57606-90K10×2iBJ75,FJ75,HJ75..HT198510-198608

main57606-90K11iFJ75,HJ75..HT..ARL198608-199001

RR

main57606-90K12iBJ75,FJ75,HJ75..HT..(GEN,ME)198608-199001

RR

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-90K00iBJ73,74,FJ73..HT198608-199001

W/*FFRS

main57607-90K01iBJ75,FJ75,HJ75..HT198411-198608

main57607-90K03iBJ73,FJ73..SOT198411-199001

main57607-90K06iFJ75,HJ75..HT..ARL198608-199001

main57607-90K07iBJ75,FJ75,HJ75..HT..(GEN,ME)198608-198708

main57607-90K08iBJ75,FJ75,HJ75..HT..(GEN,ME)198708-199001

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-90K05iBJ73,FJ73198411-198510

W/*FFRS

main57608-90K09iBJ73,74,FJ73..ARL,GEN198510-198608

W/*FFRS

main57655-90K00iFJ73..SOT198411-198505

main57655-90K01iFJ73..SOT198505-198510

main57655-90K03iBJ73,FJ73..SOT198510-199001

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-90K01iBJ75,FJ75,HJ75198411-198510

main57609-90K03iBJ75,FJ75,HJ75198510-199001

9095001022

main90950-01022

9095001133

main90950-01133

10 parts on this diagram · 1 diagram in section
