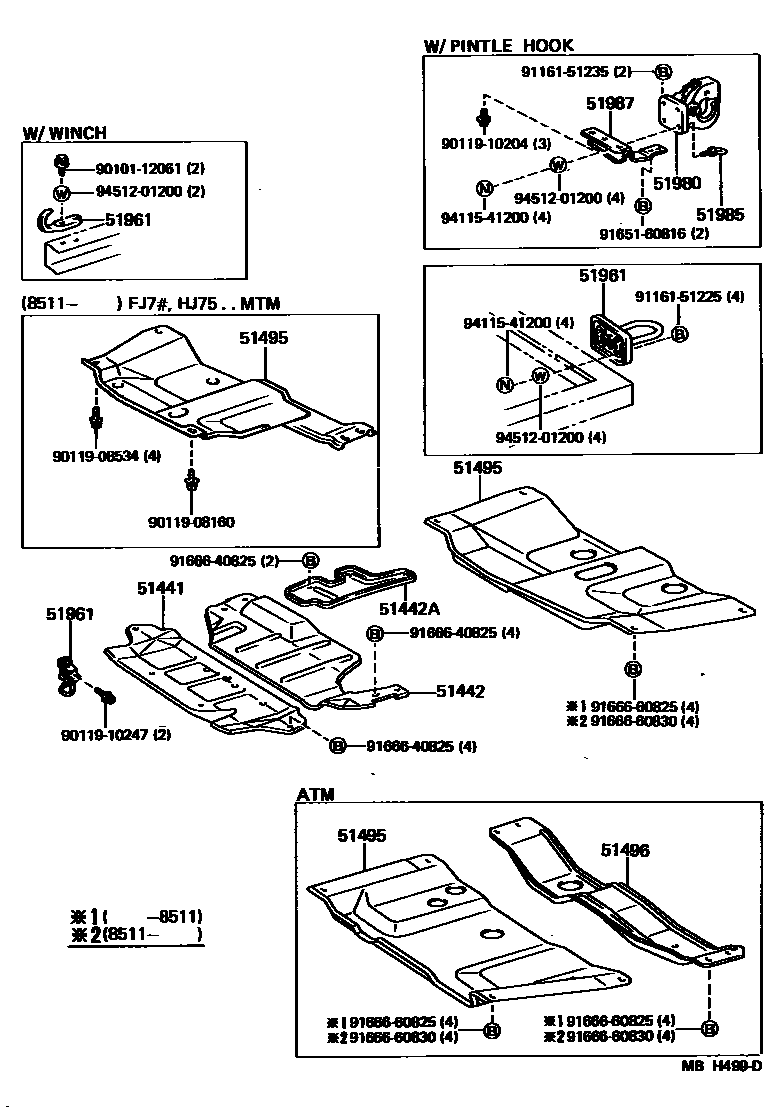

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51405-60030iLJ70,RJ70..RHD198411-199001

main51405-60040iLJ70,RJ70..LHD198411-199001

main51405-60050iBJ70,73,75,FJ7#..MTM198411-199001

main51441-60090iBJ74,HJ75; FJ70,73..4FC198411-199001

51442COVER, ENGINE UNDER, NO.2

main51406-60010iLJ70,RJ70198411-199001

main51442-60020iFJ7#198411-199001

main51442-60030iBJ7#,HJ75198411-198510

main51442-60031iBJ7#,HJ75198510-199001

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51407-60010iLJ70198411-198711

main51407-60020iRJ70198411-199001

main51443-60080iFJ7#198411-198704

main51443-60081iFJ7#198704-199001

51495COVER, TRANSMISSION UNDER

main51495-60110iFJ70,73..4FC198411-199001

main51495-60130iBJ7#..MTM198511-199001

main51495-60170iBJ74..4FC198510-199001

main58260-60060iFJ7#,HJ75..MTM198511-199001

51496COVER, TRANSMISSION UNDER, NO.2

main51496-60020iFJ70,73..4FC198411-199001

main51496-60030iLJ70,RJ70198411-198511

main51496-60080iBJ74..4FC198510-199001

main51496-60120iRJ70198511-198512

51961HOOK, NO.1

main51961-60010iBJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN; BJ75,FJ75..PIC..ME; FJ7#..(HT,SOT)..ME198608-199001

FR,W/WINCH

main51961-60050iBJ7#,FJ7#,HJ75..ARL,GEN,SA; FJ7#..(HT,SOT)..ME198608-199001

FR RH

main51961-60060iBJ7#,FJ7#,HJ75..ARL,GEN; FJ7#..(HT,SOT)..ME198608-199001

FR LH

main51961-60080iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

RR

main51961-60090×2iLJ70,RJ70198411-199001

FR

51980HOOK ASSY, PINTLE

main51980-60010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

51985HOOK, EYELET PINTLE

main51985-60011×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

51987BRACKET, PINTLE HOOK

main51987-60020iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

9010112061

main90101-12061

9011908160

main90119-08160

9011908534

main90119-08534

9011910204

main90119-10204

9011910247

main90119-10247

9116151225

main91161-51225

9116151235

main91161-51235

9165160816

main91651-60816

9166640825

main91666-40825

9166660825

main91666-60825

9166660830

main91666-60830

9411541200

main94115-41200

9451201200

main94512-01200

22 parts on this diagram · 2 diagrams in section
